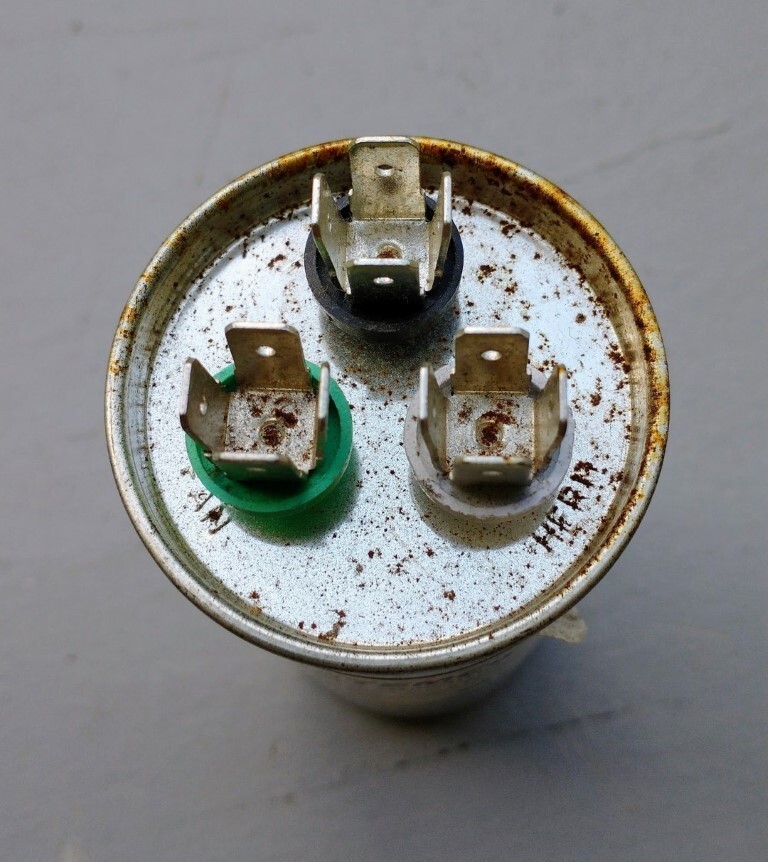

TEMCo RC0102 Round Dual Motor Run Capacitor 35+5 uF MFD 370-440 Volt VAC

Specifications

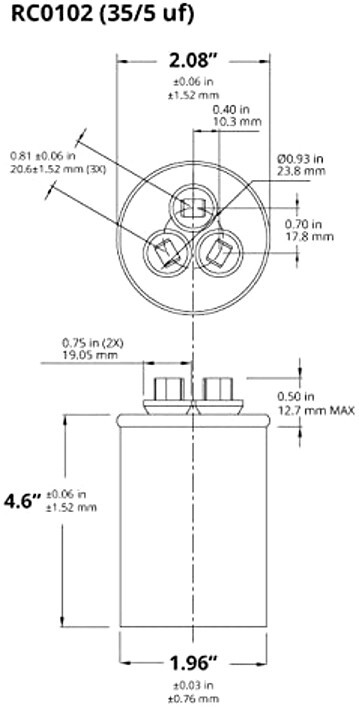

I bought this years ago for my home's outside air conditioner unit but the compressor only needed new wiring. It has been stored ever since so it may look a little rough, but it is definitely unused.370-440 V, 35+5 uF (± 5%), 50/60HzAllowable working temperature: -40 ℃ to 85 ℃Polypropylene metallized film and vegetable oil filled dual run capacitor, no PCBsDimensions: 2.08 inch diameter, 5.1 inch total height.Heavy duty aluminum casing with steel cap; 10,000 AFC protectedThree terminal posts on the top are labeled "Herm" for the compressor motor, "Fan" for the fan, and "C" for the common line1/4 in. quadruple QCT terminals, 4 terminals per postDesigned for replacement of OEM single and three phase motor capacitorsReplacement for 97F9834, Z97F9834, HC98JA036, P291-3553R, HC98CA036, HV98CA035, 97F9834, R100335-05, 89M73, HC98JA036D, TT-CAP-35/5/440R, 12266, 12283, Z97F9848, Z97F9899, 97F9899, CAP050350440RS, TP-CAP-35/5/440R, CBB65, CBB65B, TRCFD355, and others.
