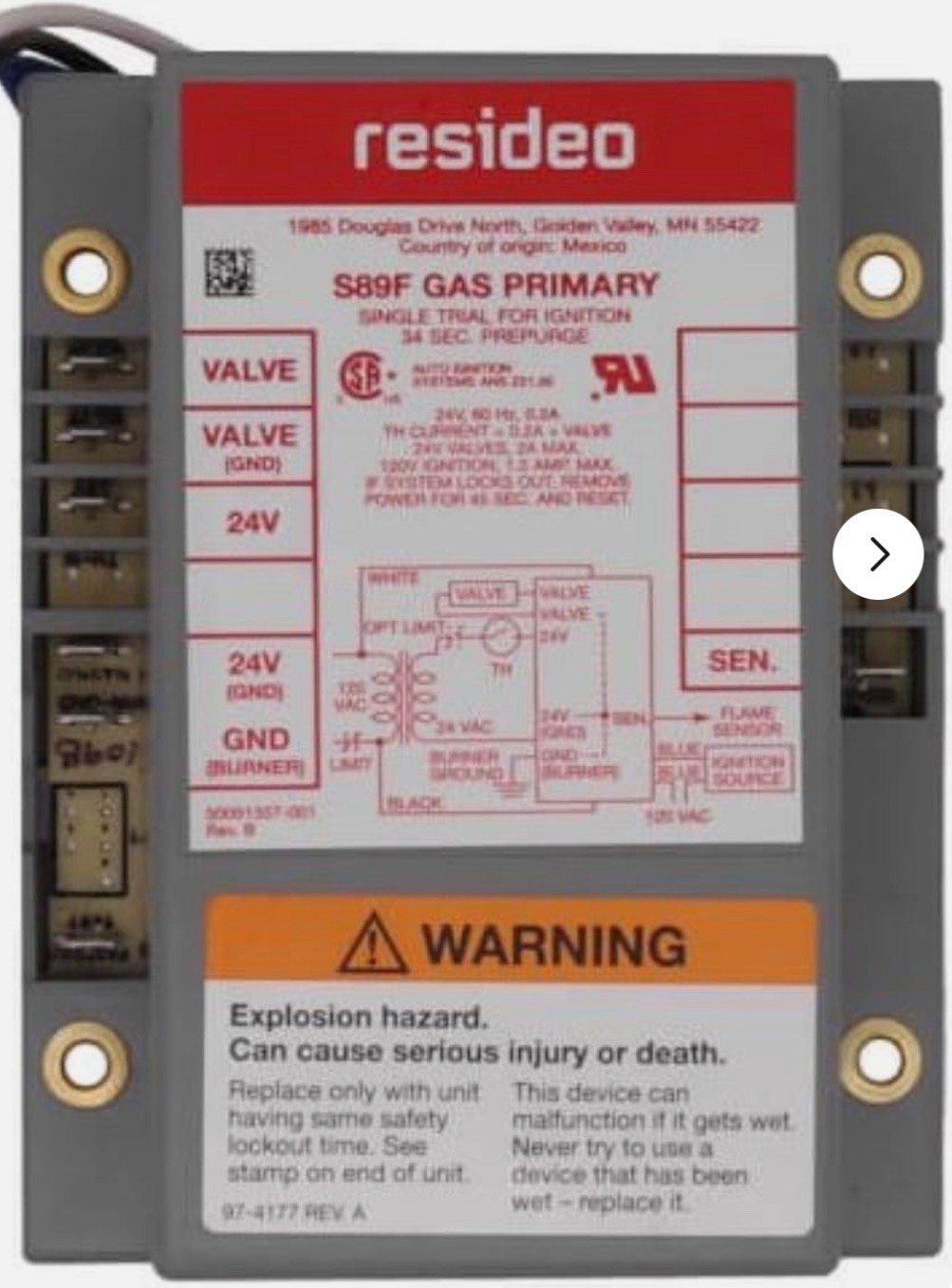

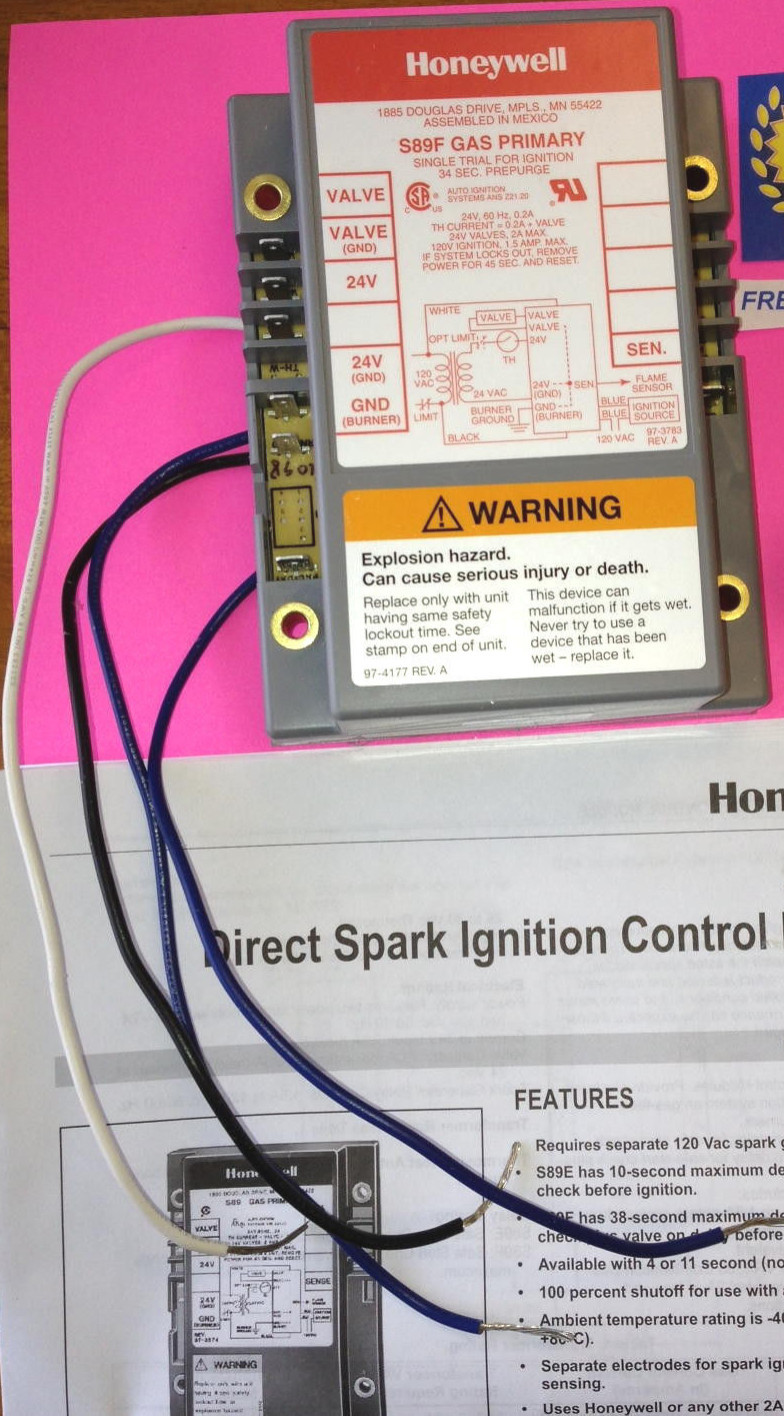

Honeywell S89F1098 Spark Gas Burner Primary Genuine OEM Resideo

Specifications

HONEYWELL - ResideoGenuine Honeywell Original Equipment Not Fake Junk sold by others on eBay! S89F 1098 Primary Control Direct Spark ControlDSI Control OverviewProvide electronic control of direct spark ignition systems, with external spark transformers,used on gas-fired furnaces, boilers, conversion burners and other heating appliances Features • Controls ignition sequence and gas control operation in direct spark ignition systems. • Control separate 120 Vac spark generatorthat provides high voltage potential for main burner ignition. • Lockout after one trial for ignition if main burner fails to ignite. • Reset from thermostat after lockout. Use separate electrodes for spark ignition and flame sensing. • Use any 24 Vac combination gas control designed for direct spark applications and rated at 2.0A or less. Product Specifications Ignition System Type Direct Spark Ignition Ignition Sequence Single trial for main burner ignition (then shut down and lockout) Typical Gas Control VR8205, VR8305 Type of Gas Natural or LP Flame Sense Two Rod Ignition Source External (120 VAC powered) High Voltage Spark Generator PrePurge 30 sec. minimum Ignition Trials To Lockout 1 Lockout Timing 4 sec. Ignition Trial Time (sec) 4 sec. Maximum Valve Load @ 24 Vac (Amps) 2A Typical Ignition Hardware Q652, Q345 Dimensions (in.) 5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long Dimensions (mm) 133 mm high x 103 mm wide x 49 mm deep Electrical Ratings 24 Vac Frequency 60 Hz Maximum Ambient Temperature (F) -40 F to +175 F Maximum Ambient Temperature (C) -40 C to +79 C Approvals, Canadian Standards Association Design Certified Flame Failure Response Time (sec) 2.0 sec. @ 2.5 microamp Flame Failure Re-ignition Time (secPlease note some of the items require professional knowledge and skills tohandle or installed. Thomas New Parts is not responsible for any damage or injuries resultedfrom mishandling of professional products. All HVACR equipment should be servicedinstalled by certified professionals only. Please let us know if you have anyconcerns or questions. The controls are made from either gray or black plastic since Honeywell sold this Division to Resideo. They will all have the Resideo brandname on the label. .
