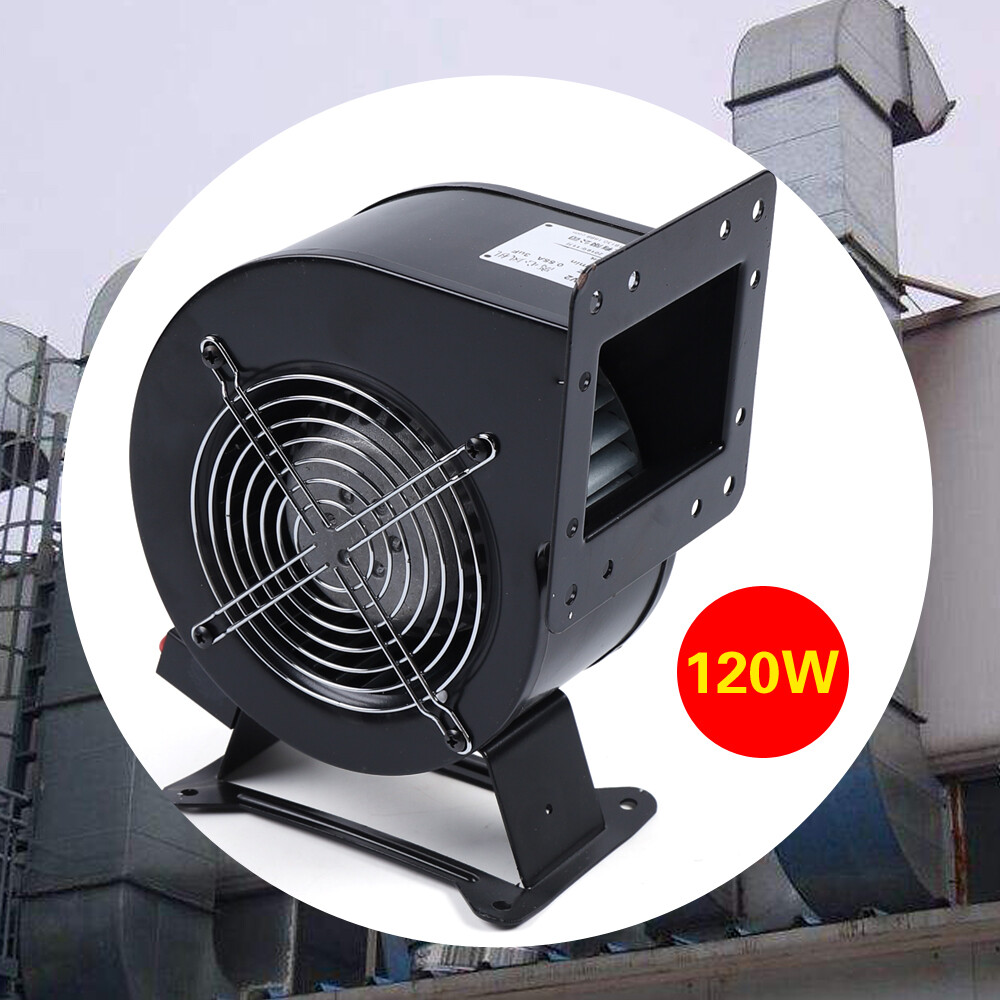

Blower Motor Fan Assembly Outdoor Wood Furnace Boiler Blower 196CFM 72db 120w

Specifications

Specification    Color：black Material: Carbon Steel + Pure Copper Motor Surface Treatment：electrostatic Spraying Voltage:110v /60hz Input Current: 1.10a Input Power: 120w Speed: 2600r/Min Air Volume: 196cfm (5.5m³/Min) Static Pressure: 350pa Noise: 72db(a) Capa-citance: 8.0/500μf/V Weight: 2.5kg/5.51lbs Outside Diameter of Air Outlet: 11.5*11cm/4.53*4.33'' Inside Diameter of Air Outlet: 8.2*6.8cm/3.23*2.68'' Installation Hole Distance: 5.4*4.8cm/2.13*1.89'' Wind Shell Thickness: 8.5cm/3.35'' Diameter of Wind Shell: 17.2cm/6.77'' Diameter of Air Inlet: 11cm/4.33'' Inlet Hole Distance: 10.4*10.4cm/4.09*4.09'' Fan Height (Including Stand): 21cm/8.27'' Fan Height (Without Stand): 18cm/7.09'' Base Installation Hole Distance: 8*13cm/3.15*5.12'' Vent Size: 8.5*7.1cm/3.35*2.8''Small Centrifugal 196CFM Flange Blower Fan 2600r/min 110V 120W Durable Equipment Description The 120w Blower Adopts Pure Copper Motor. the Motor Runs at High Speed to Make the Fan Blades Emit Strong Wind. the Pure Copper Motor Produces Very Little Noise When It Runs, so It Will Not Disturb Your Normal Rest. Its Protection Rating Is Ip54, so You Can Use It with Confidence.Package Included 1*120w Blower Key Features High Efficiency: It Adopts Pure Copper Motor and the Rotation Speed Can Reach 2600r/Min. Efficient Service Always Gives You More Comfortable Experience.High Air Volume: the Motor Runs at High Speed to Make the Fan Blade Send out Strong Wind, and the Wind Volume Can Reach 196cfm. in Addition, the Large Diameter and High-quality Impeller Makes the Air Flow More Smoothly, so You Can Feel Its Powerful Power Instantly.Low Noise: the Built-in Pure Copper Motor Allows This Blower to Run with a Noise Level of Only 72db so That the Low Noise Does Not Disturb Your Normal Rest and Provides a Comfortable Environment for You to Use.Strong Stability: It Has Pre-determined Mounting Holes on the Side and Bottom for Fixing. the Reinforced Design in Many Aspects Ensures Its Strong Stability and Is Not Easy to Fall off.Safe and Reliable: Its Protection Level Is Ip54. When the Motor Is Running, the Impeller Will Cool down the Motor, so You Can Use It with Confidence.High Quality: It Adopts Thickened Steel Carbon Shell with Electrostatic Spraying on the Surface. the Quality of High-strength Material Is More Reassuring.Lightweight and Compact: It Is Smaller than the Average Blower and Weighs Only 5.51lbs, so It Is Very Easy to Move and Store.Easy to Install: It Is Very Easy to Install and Does Not Require Professional Assistance. You Can Also Install It in Different Positions by Changing the Assembly of the Mounting Bracket.Multi-purpose: It Has Four Major Functions - Air Exchange, Dust Removal, Moisture Removal and Temperature Regulation. It Can Meet Your Needs in Many Ways.Customer Service: We Aim to Provide Quality Products and Services. If You Have Any Problems, Please Feel Free to Contact Us. We Will Reply and Solve the Problem for You As Soon As Possible. Specification Color：black Material: Carbon Steel + Pure Copper Motor Surface Treatment：electrostatic Spraying Voltage:110v /60hz Input Current: 1.10a Input Power: 120w Speed: 2600r/Min Air Volume: 196cfm (5.5m³/Min) Static Pressure: 350pa Noise: 72db(a) Capa-citance: 8.0/500μf/V Weight: 2.5kg/5.51lbs Outside Diameter of Air Outlet: 11.5*11cm/4.53*4.33'' Inside Diameter of Air Outlet: 8.2*6.8cm/3.23*2.68'' Installation Hole Distance: 5.4*4.8cm/2.13*1.89'' Wind Shell Thickness: 8.5cm/3.35'' Diameter of Wind Shell: 17.2cm/6.77'' Diameter of Air Inlet: 11cm/4.33'' Inlet Hole Distance: 10.4*10.4cm/4.09*4.09'' Fan Height (Including Stand): 21cm/8.27'' Fan Height (Without Stand): 18cm/7.09'' Base Installation Hole Distance: 8*13cm/3.15*5.12'' Vent Size: 8.5*7.1cm/3.35*2.8''Details Metal Protection Net: It Can Not Only Effectively Prevent Debris Inhalation into the Machine Resulting in Damage to the Fan Blade but Also Can Prevent People Unintentionally Close to Be Unnecessary Injuries.Cold Rolled Steel Blades: the Blades Are Curved, High Strength and Not Easy to Deformation. the Impeller Has Good Aerodynamics to Ensure Its Strong Wind Power.Application This 120w Blower Can Be Widely Used in Extruder Heat Dissipation, Kitchen Equipment, Electronic Equipment, Duct Ventilation, Aeration Model, Purification Equipment, Telecommunications and Other Fields. Notes Please Allow a Slight Color Difference Due to Shooting Light, and 1-3cm Error Due to Manual Measurement, Please Make Sure You Don't Mind Before Ordering.On Aug 2, 2024 at 04:58:48 PDT, seller added the following information:

Related Items

Dayton 1Tdp5 Square Oem Blower, 2860 Rpm, 1 Phase, Direct, Rolled Steel

Supco DP40242 Contactor 40 FLA 50 RLA 24 Volts 2 Pole

Heater Blower Motor w/Fan for Chevy Silverado 1500-3500 Tahoe GMC Sierra 99-06

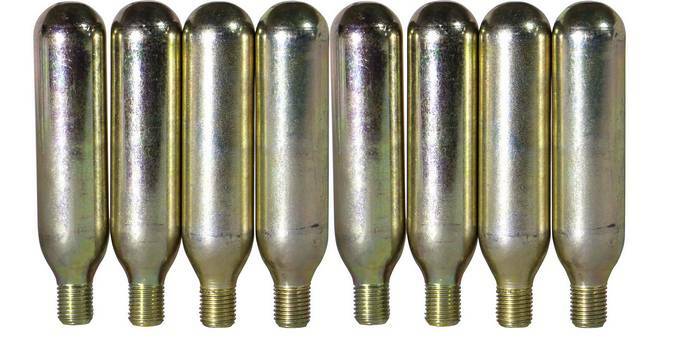

Envirosafe, Refrigerant grade CO2 Cartidges 8 Pack

Copper Solder Filter Drier 15 grams w/Silica for AC & Refrigeration Linean 20pcs

Copeland 3 Ton Scroll Compressor ZR36K3-PFV-230 1 PH 230 V R-22 used #C98

50A55-843 GUARANTEED WORKING TESTED Furnace control board

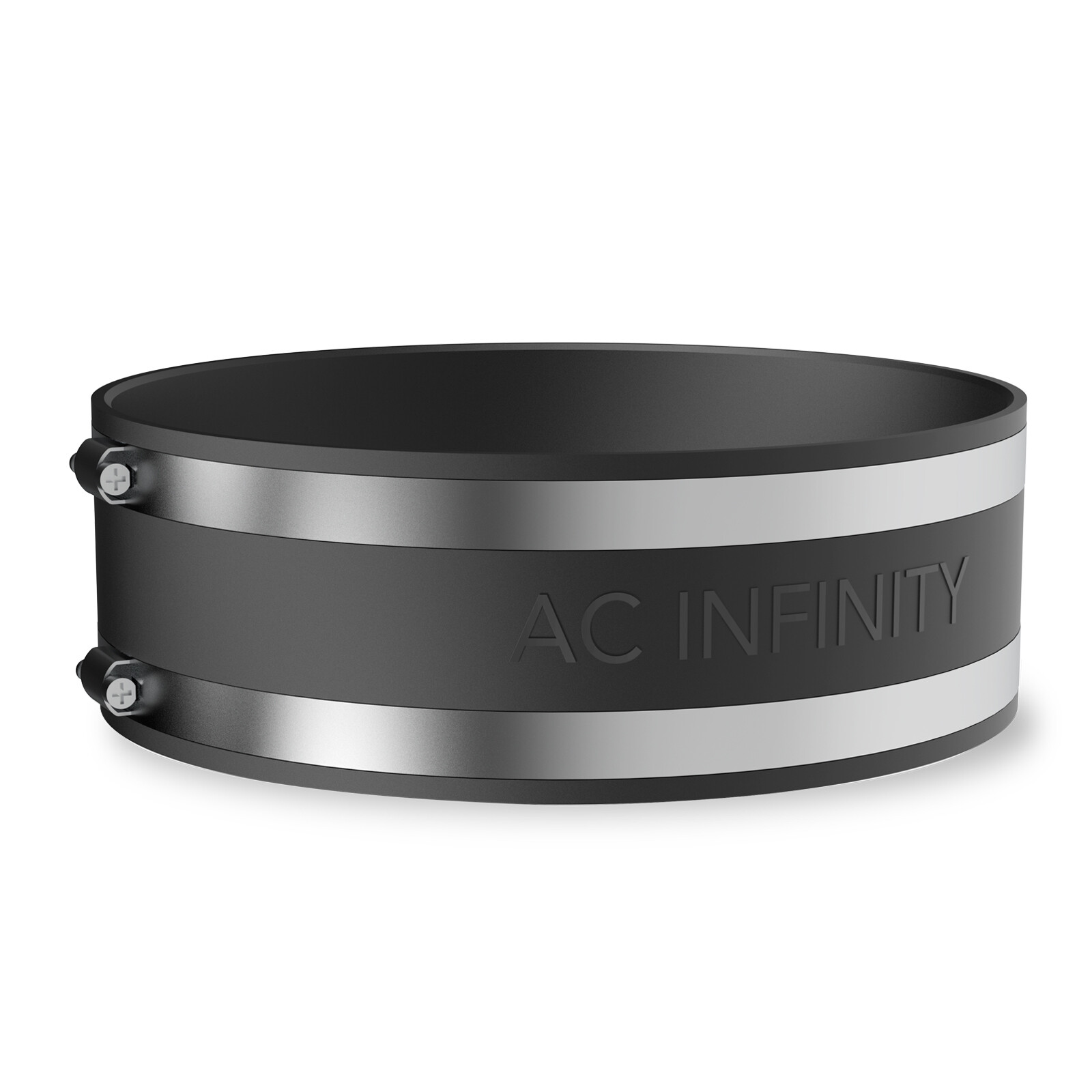

Noise Reduction Clamp, 8-Inch Rubber Duct Coupler with Stainless Steel Clamps
