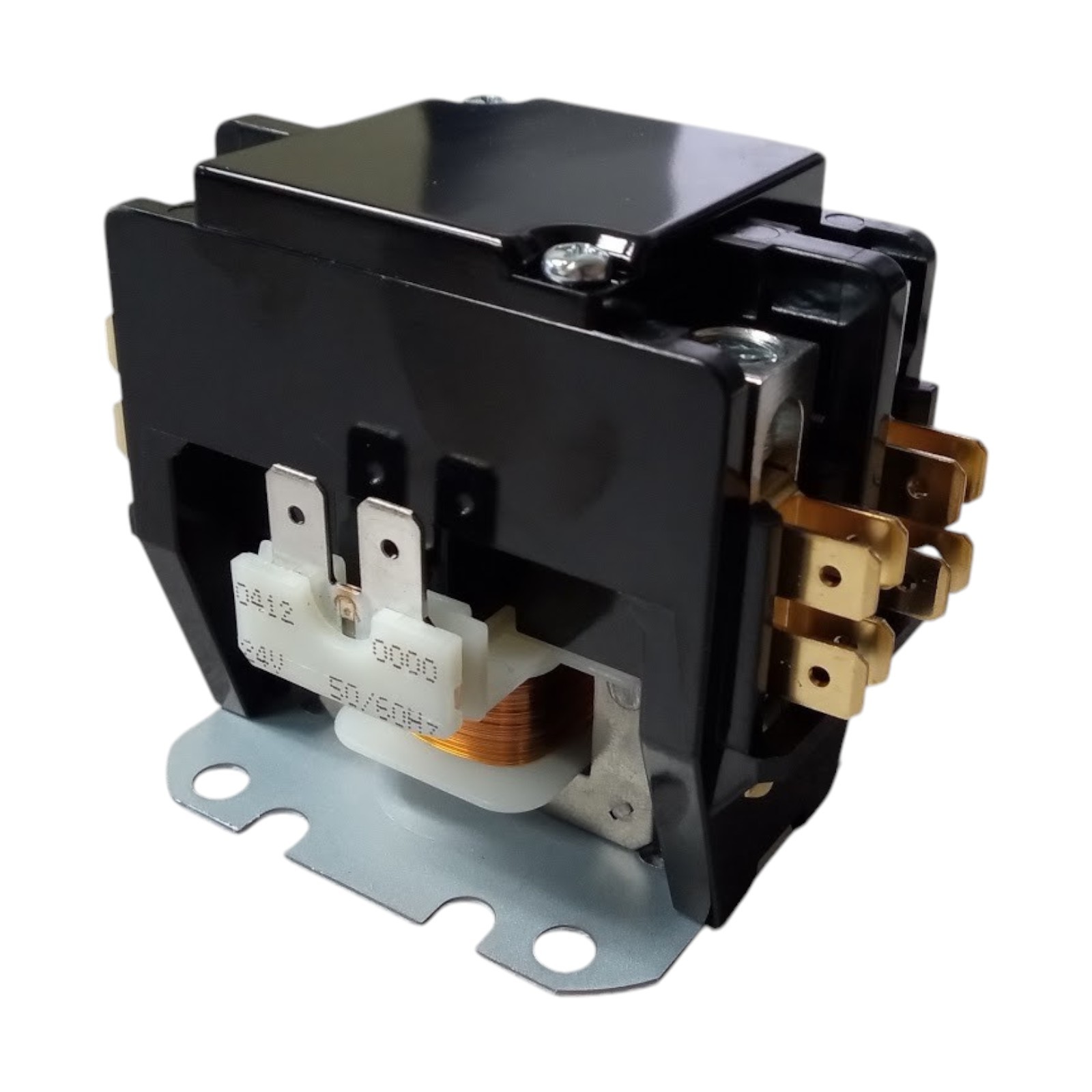

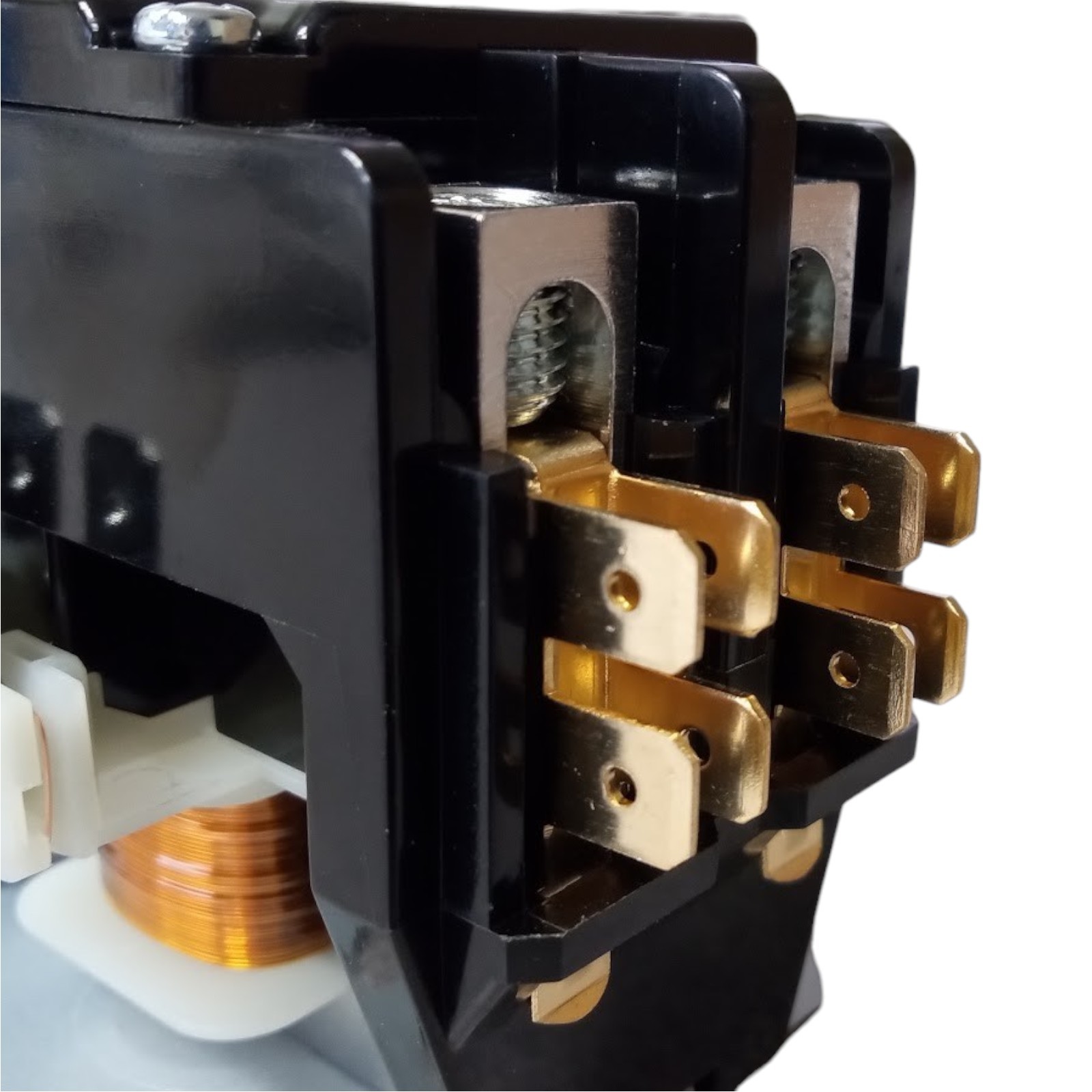

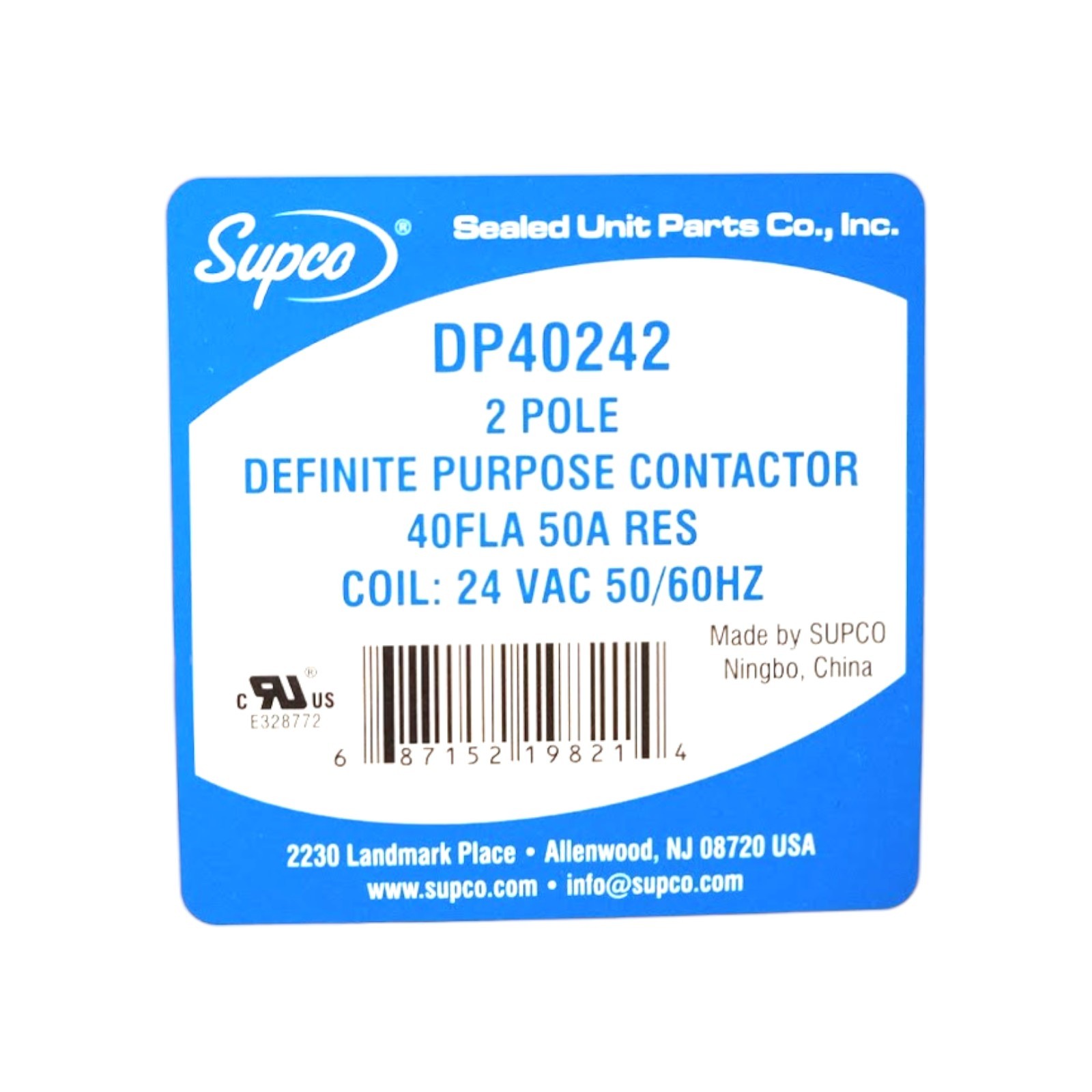

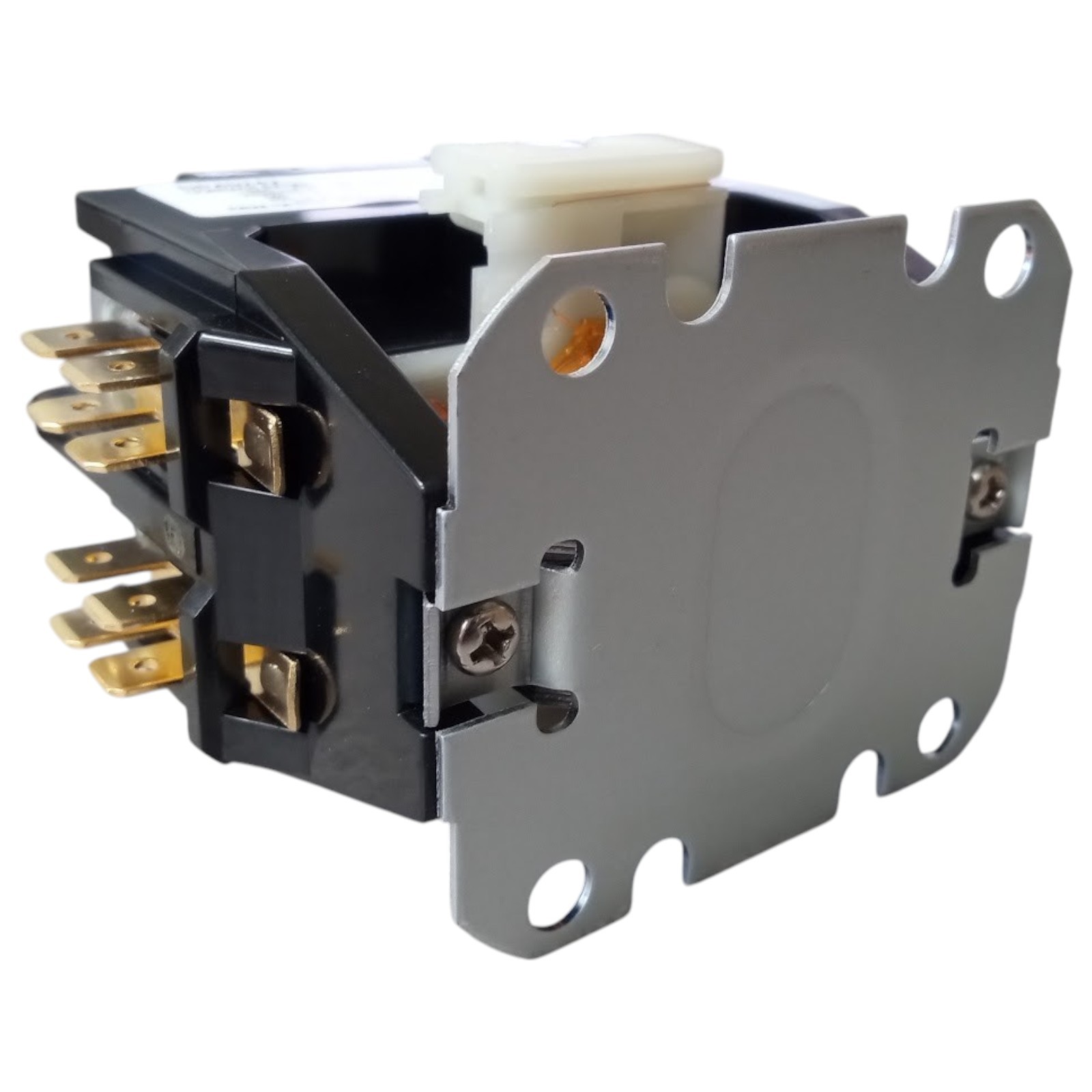

Supco DP40242 Contactor 40 FLA 50 RLA 24 Volts 2 Pole

Specifications

Supco DP40242 Contactor 40 FLA 50 RLA 24 Volts 2 Pole Supco Contactor part number DP40242 Supco contactors are designed for use in HVAC&R systems. Compact universal design allows replacement of the most common brands. Low drop out voltage makes them ideal for any air conditioning, heating and refrigeration applications. 40 FLA, 50 RLA 24V Coil 2 Pole Features/Benefits Silver cadmium oxide contacts Interchangeable mounting with many competitive contactors Space saving dimensions allow for smaller panels and more wiring room CSA approved UL approved Specifications Termination Torque: 35-inch pounds Termination: Box Lug Full load amps: 40 FLA Coil voltage: 24V Number of poles: 2 Pole Resistive Load Amperage (RLA): 50A Temperature range: -40 to 150 degrees F (-40 to 65 C) Replaces RBM / Essex: 143-7 Furnas: 45GG20AJ Packard: C2S30C Honeywell: DP2030C1001, DP2030C5002 Square D: DP32VO9 Mars: 14323 Joslyn Clark: A77306657A2 Cutler Hammer: C25DNF240T Arrow Hart: ACC420U10 GE: CR353AD2BH1, CR453CE2HBB Product Details BrandSupcoManufacturerSUPCOProduct TypeContactorMpnDP40242 Supco Contactor part number DP40242Designed for use in HVAC&R systemsCompact universal designInterchangeable mounting40 FLA, 50 RLA, 24 Volts, 2 Pole Check out my other items. -Powered by
