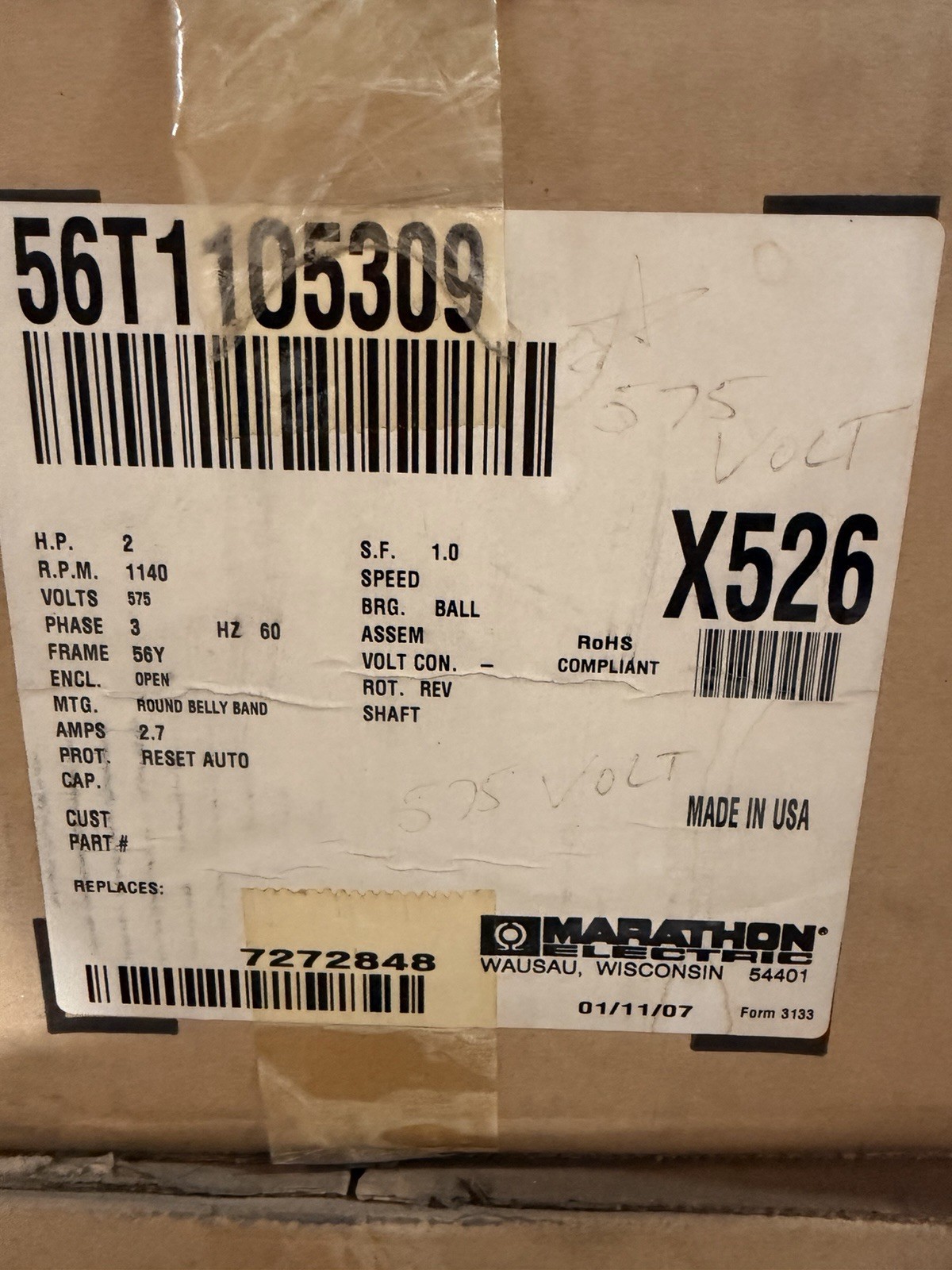

X526 Marathon 2 hp 3-phase 575V 1075 RPM OPAO 56Y Frame Condenser Fan Motor

Specifications

2hp 1075 RPM, 2.7 amps, 575 Volts 60 Hz, 3-Phase NEMA 56Y Frame Keyed Shaft 5/8" Diameter x 5" Service Factor = 1.0, Thermal Protection = Automatic No Base, Reversible, Ball Bearings, Class H insulation Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air-Over so motor must be in air-stream. 056T11O5309 FAST & FREE SHIPPING!
