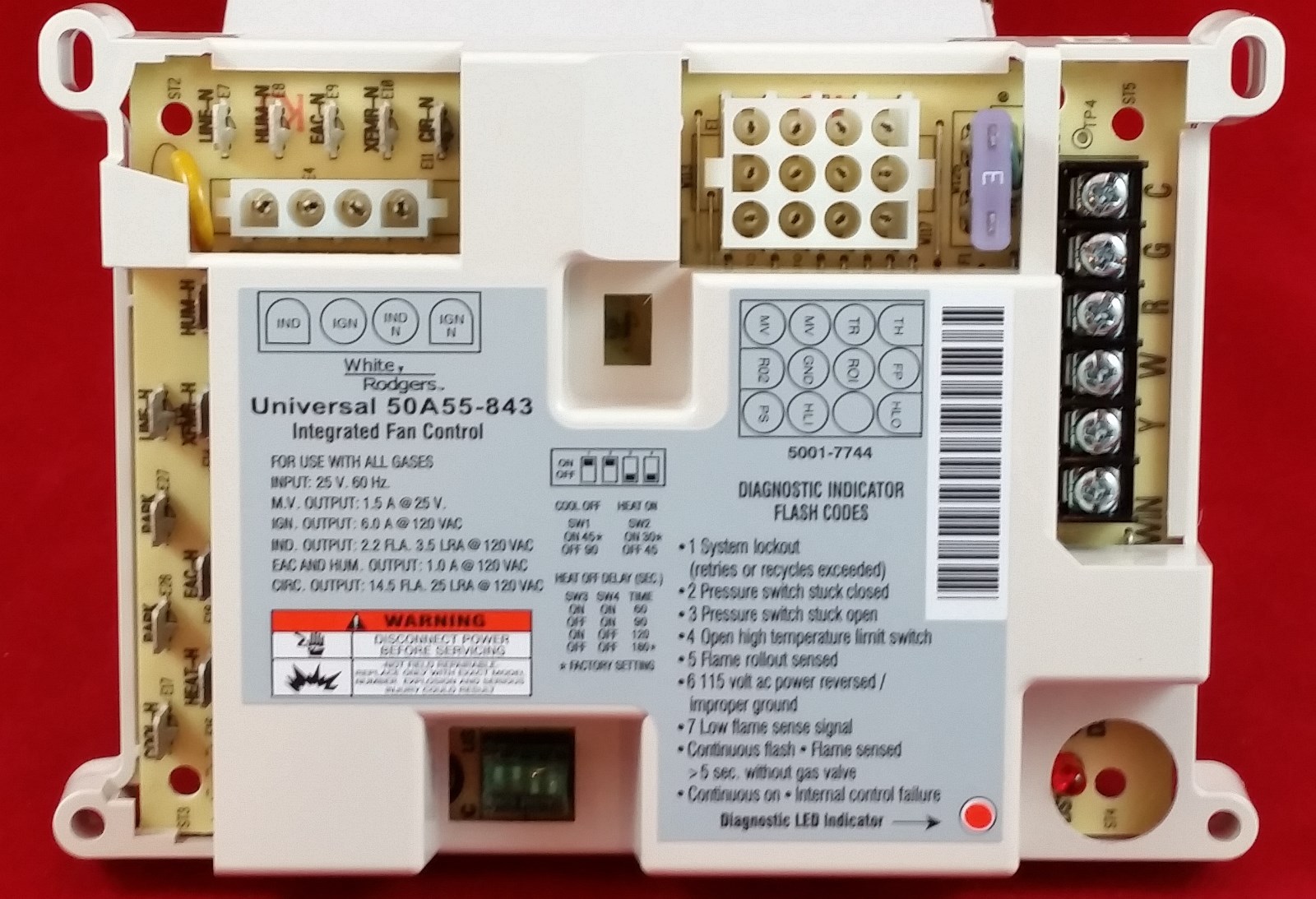

WHITE-RODGERS UNIVERSAL INTEGRATED MODULE 50A55-843

Specifications

50A55-843 Universal Integrated Module for Silicon Carbide Ignition Replaces 56 OEM and Aftermarket Models Universal Replacement Integrated Module for Silicon Carbide Ignition • Replaces Most White-Rodgers and Competition Integrated Ignition Modules for Silicon Carbide Applications • Extensive Model Cross-Reference Provided • Diagnostic LED • Additional Jumpers to Extend the Length of the Connections Simplify Your Inventory. Go with the Leader and Stock One Model That Replaces Them All. The 50A55-843 Universal Silicon Carbide Integrated Ignition module employs a microprocessor which continually monitors, analyzes and controls the proper operation of the gas burner, inducer and fan. This one module will replace most of the 50A5X-XXX integrated ignition carbide modules that have been manufactured by White-Rodgers and most competitive models. The Universal Module includes an extensive cross-reference, additional jumper wires, additional wiring harness and a jumper for Trane applications. The module also has terminals for powering a humidifier and electronic air cleaner. Application Gas-Fired Forced-Air Furnaces with Integrated Furnace Control Module with a Silicon Carbide Ignitor Specifications Electrical Rating at 77°F (25°C): Input Voltage 25 VAC, 50/60 Hz Max. Input Current (@ 25 VAC) 0.45 amp Relay Load Ratings: Valve Relay 1.5 A @ 25 VAC, 50/60 Hz, 0.6f Ignitor Relay 6.0 A @ 120 VAC,50/60 Hz (resistive) Inducer Relay 2.2 FLA-3.5 FLA @ 120 VAC Circulator Relay 14.5 FLA-25.0 FLA @ 120 VAC Operating Temperature:-40° to 175°F (-40° to 80°C) Humidity Range:5% to 93% Model Cross-Reference 50A55-843 Replaces These Integrated Silicon Carbide Ignition Modules 031-00662 031-01266000 031-01266-000 10207701 10207702 10207703 10207710 12L4201 1380-686 1380-699 50A50-110 50A50-111 50A50-112 50A50-113 50A50-130 50A50-131 50A50-142 50A50-143 50A50-205 50A50-206 50A50-207 50A50-208 50A50-209 50A50-210 50A50-215 50A50-216 50A50-229 50A50-230 50A50-240 50A50-241 50A50-245 50A50-285 50A50-286 50A50-288 50A50-295 50A50-296 50A50-298 50A50-405 50A50-406 50A50-407 50A50-408 50A50-438 50A50-471 50A50-472 50A50-473 50A50-474 50A50-475 50A50-571 50A55-143 50A55-241 50A55-245 50A55-250 50A55-285 50A55-286 50A55-288 50A55-438 50A55-474 50A55-571 50A55-843 D330927P01 D330930P01 D330934P01 D340035P01 D340354P01 D340774P01
