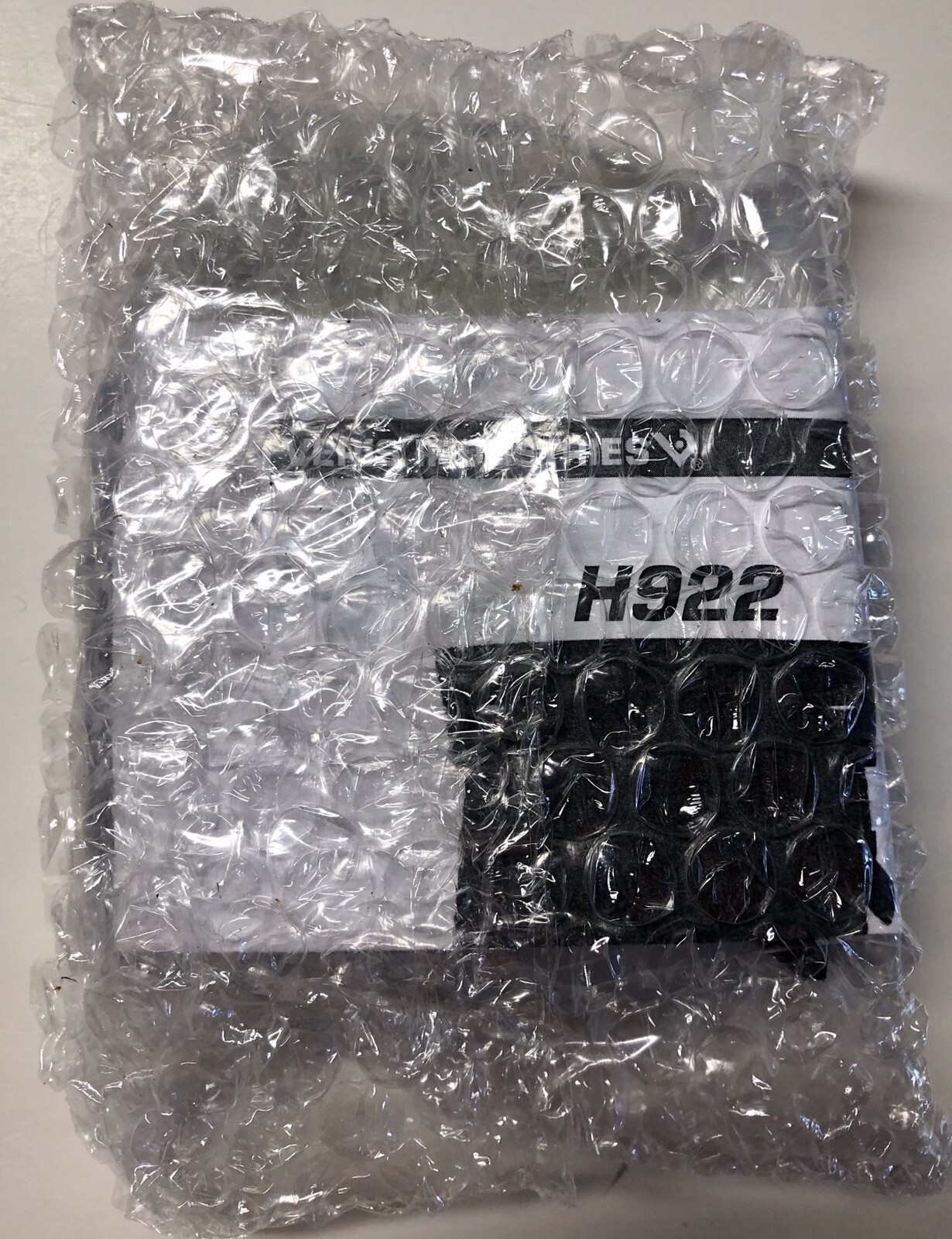

Veris H922 (Split Core, 0-5VDC, Current Transducer)

Specifications

Veris H922 (Split Core, 0-5VDC, Current Transducer)The Hawkeye 922 provides accurate load trending information with a proportional 0-5VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers (available on most models).APPLICATIONS Load trending Motor control Positive proof of flow Self-powered analog current sensor simplifies installation No external power required for sensor...eliminate power supplies Self-gripping split-core for fast retrofit installation... no need to remove conductor No jumpers on unit...reduces installation error Selectable factory calibrated ranges for increased flexibility and resolution Available with three field-selectable ranges per unit...fewer versions to choose from, stock, and install Bracket can be installed in three different configurations...added flexibility 100% solid state, no moving parts to fail Specifications Sensor Power Induced from monitored conductor Insulation Class 600VAC RMS (UL), 300VAC RMS (CE) Frequency 50/60Hz nominal Temperature Range -15° to 60°C (5° to 140°F) Humidity Range 10-90% RH, non-condensing Accuracy ±2% F.S. from 10% to 100% (selected range) Response Time 2 sec. Terminal Block Maximum Wire Size 14 AWG Terminal Block Torque (nominal) 4 in-lbs (0.45 N-m) Agency Approvals UL 508 open device listing CE:EN61010-1:2001-2, CAT III, deg. 2, basic insulation For applications requiring double or reinforced insulation, please contact the factory

Related Items

6 In. X 24 In. 26 Gauge round Metal Duct Pipe

5/8” Insulated Copper Coil Line Seamless Pipe Tube For HVAC Refrigerant 1/2” 50’

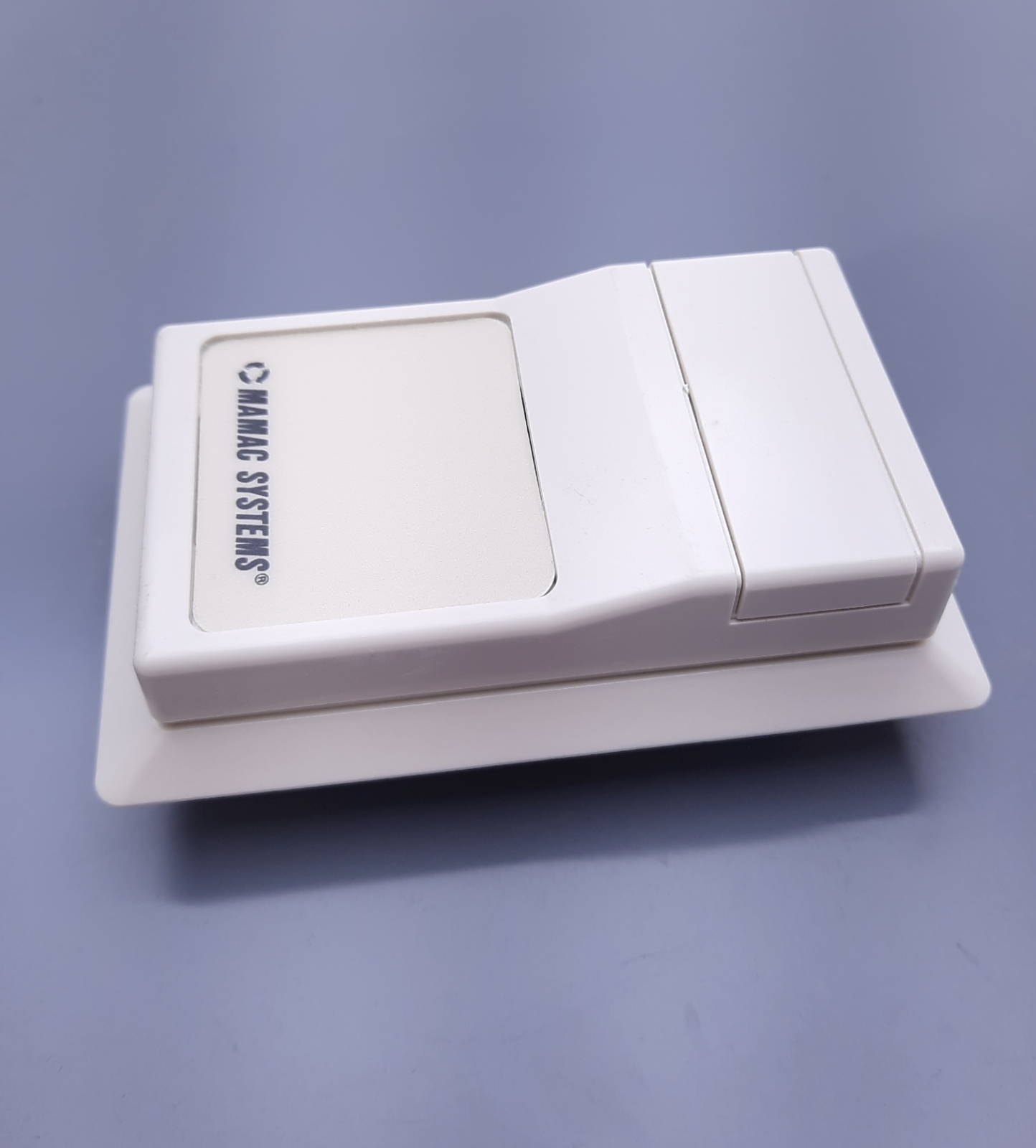

Mamac Systems HU-225-2-VDC HVAC Sensor Humidity Sensor 0-5VDC 0-10VDC 12-35VAC
