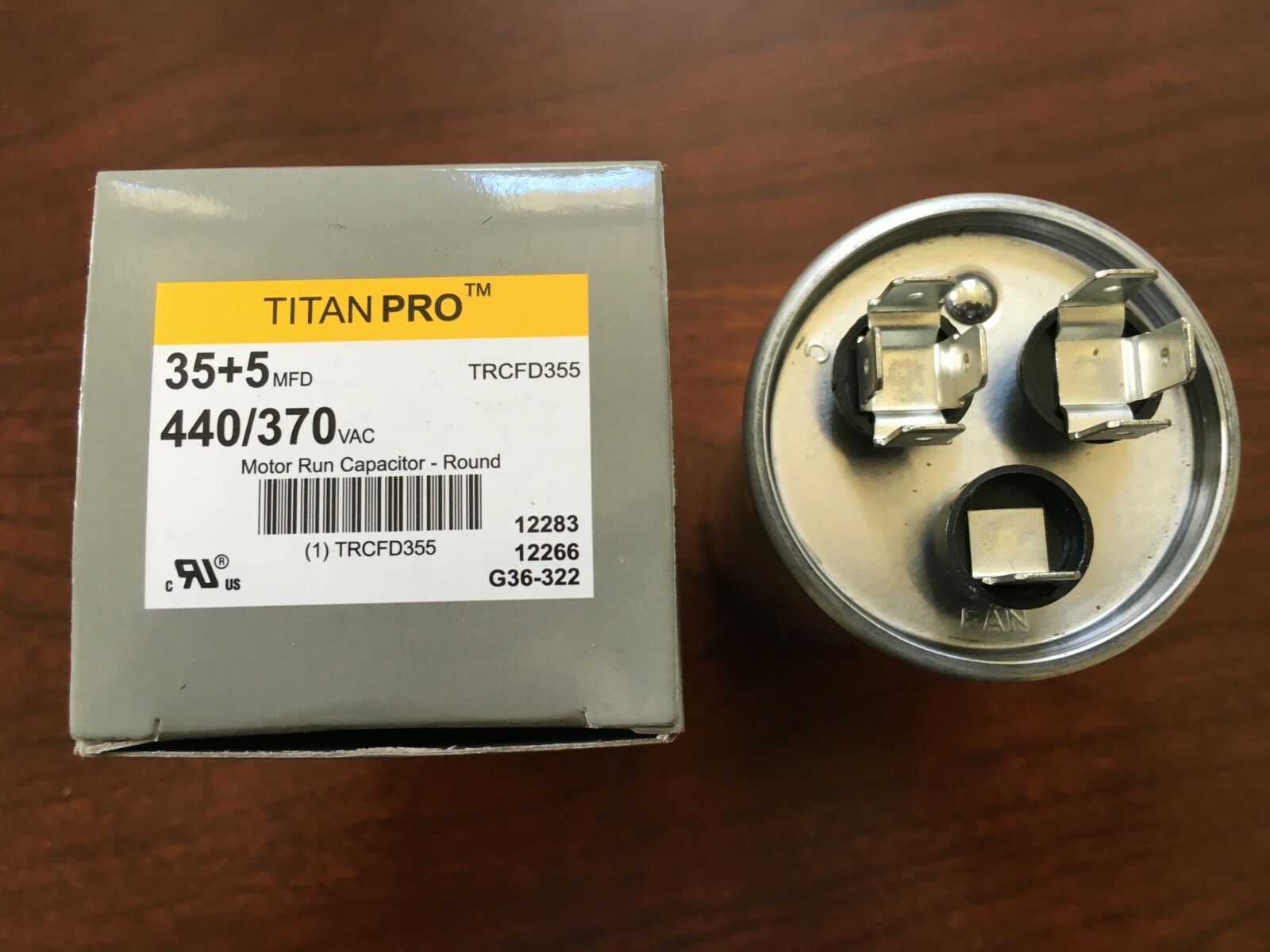

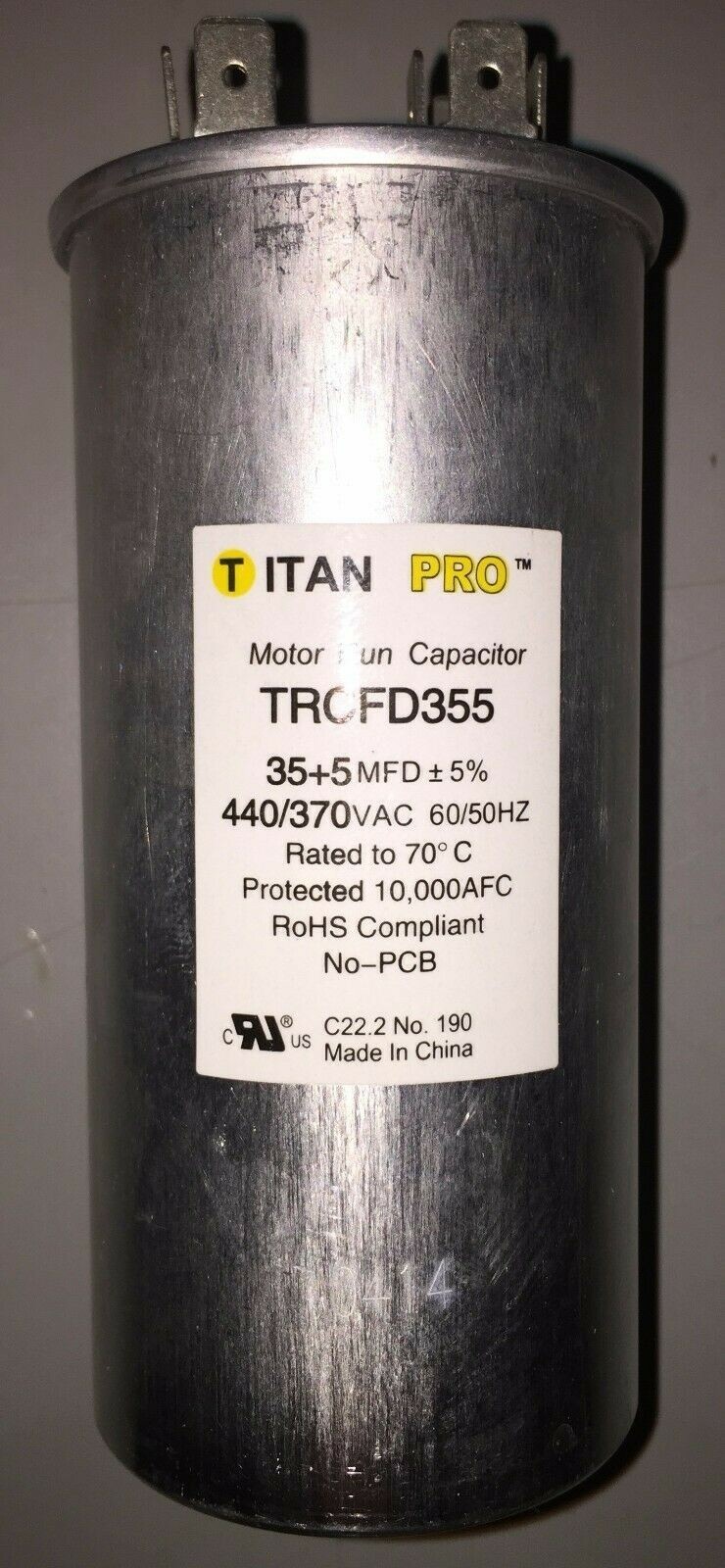

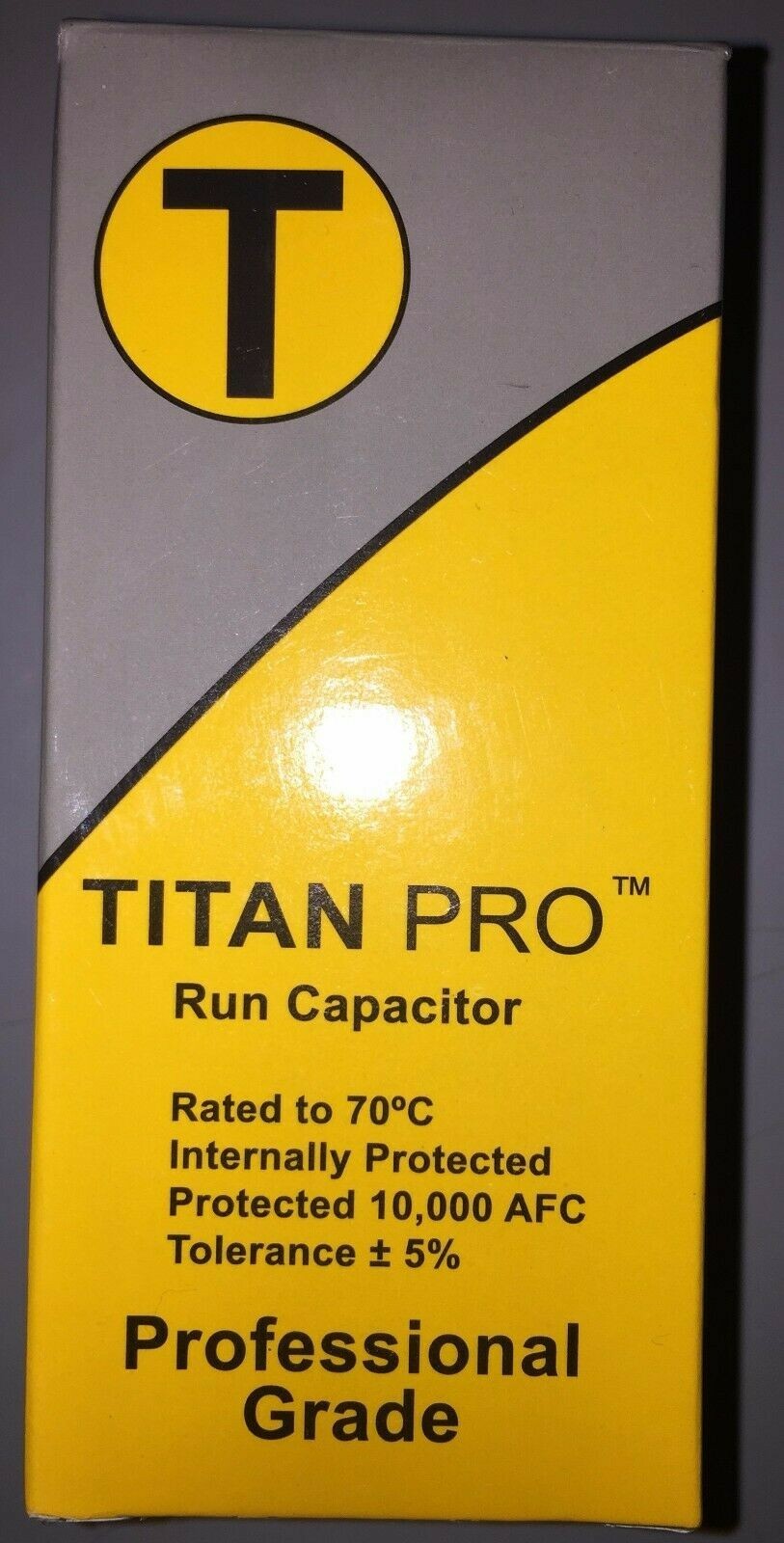

Titan Pro TRCFD355 35 5 MFD 440 370V Round Motor Run Capacitor (Bin: B)

Specifications

Titan Pro TRCFD355 35 5 MFD 440 370V Round Motor Run Capacitor Reliable: 60,000 hours operational life, outperforming standard motor run capacitors of similar value by 83% Flexible: Titan PRO 440/370 volt design reduces inventory and Titan PRO 370 volt offers best in class value Compliant: Built to the toughest international standards for AC motor run capacitors including EIA-456-A and IEC 60252-1:2001 Tested: 100% electrical testing Reinforced: Heavy-edged metalized polypropylene film is used for the dielectric Proprietary bio-degradable oil Second generation anti-explosion safety switchSpecifications: 3 male terminals1/4" wide x 1/2" tall male terminals Dimensions of the capacitor: 2" (Diameter) x 4-7/16" (Height)60,000 hour reliability440/370Volts50/60 HzHigh-grade metallized polypropylene filmContains proprietary Epoxidized Soybean Oil (ESO)UL and CUL100% electrical testingOperating Temperatures: -13°F to +185°F (-25°C to +85°C)Microfarad range with ± 5% toleranceRated from 240 VAC to 660 VACAluminum Round CasingNon PCBReplacement for number PRCD355.Designed specifically for motor run applications where the capacitors are used in conjunction with permanent split capacitor type motors.
