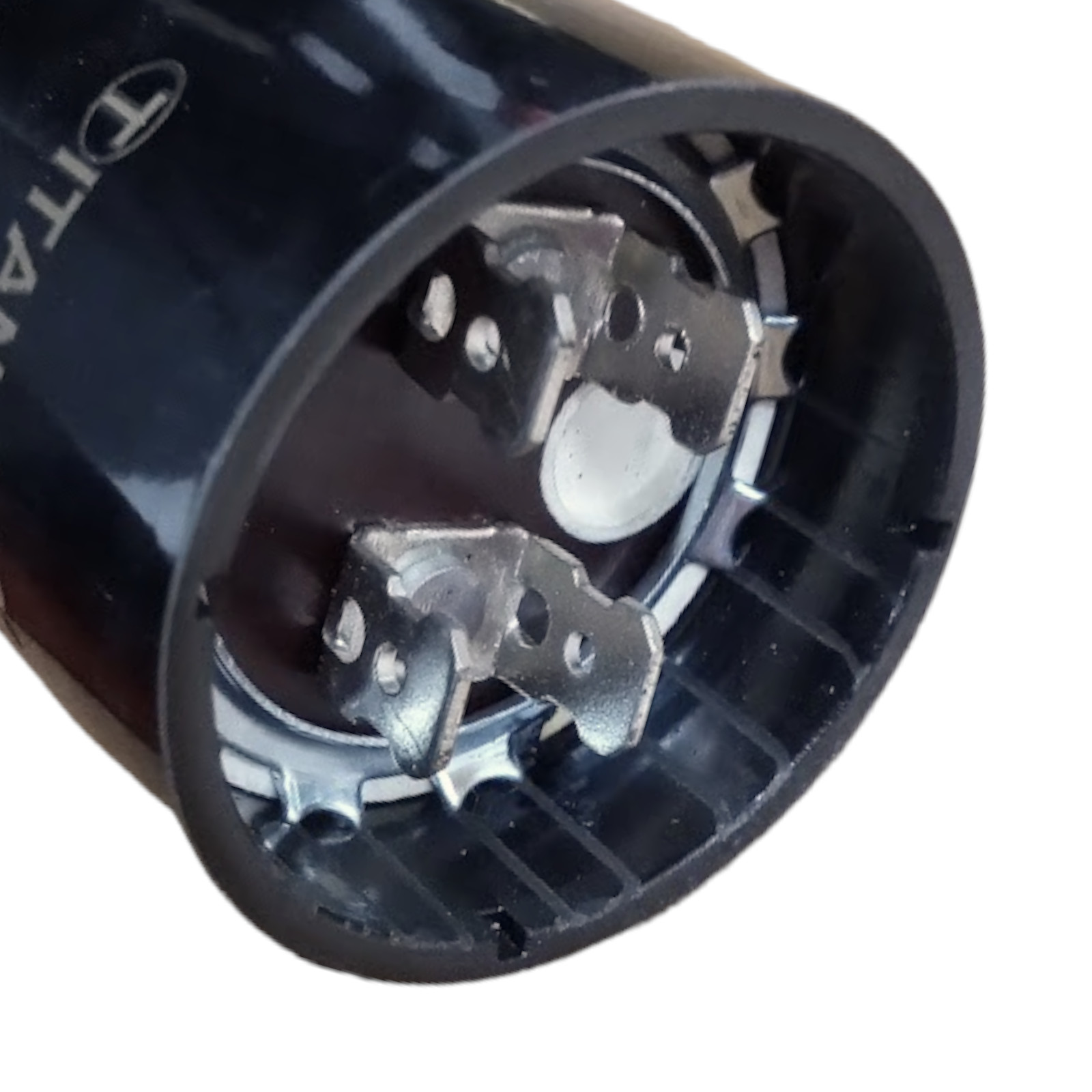

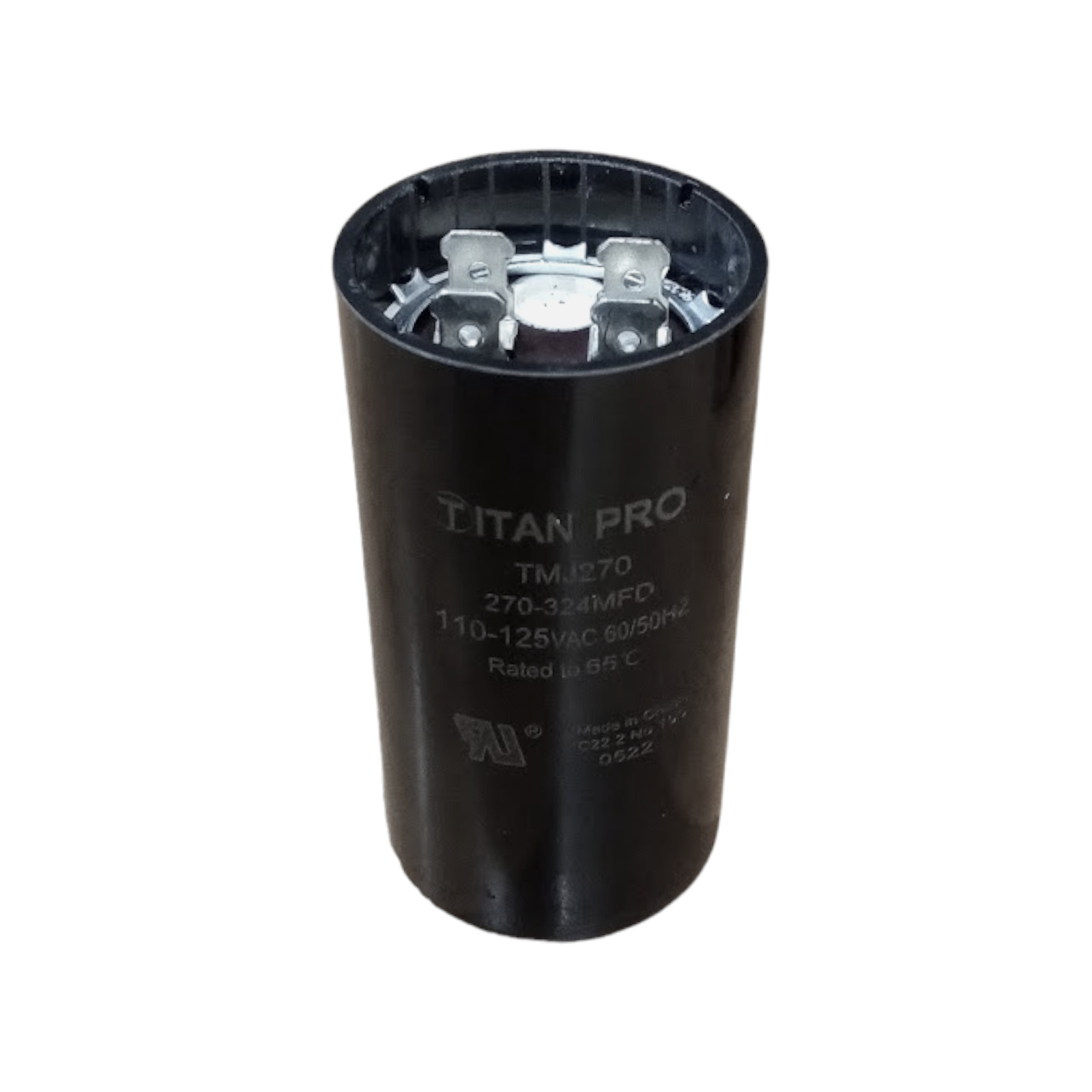

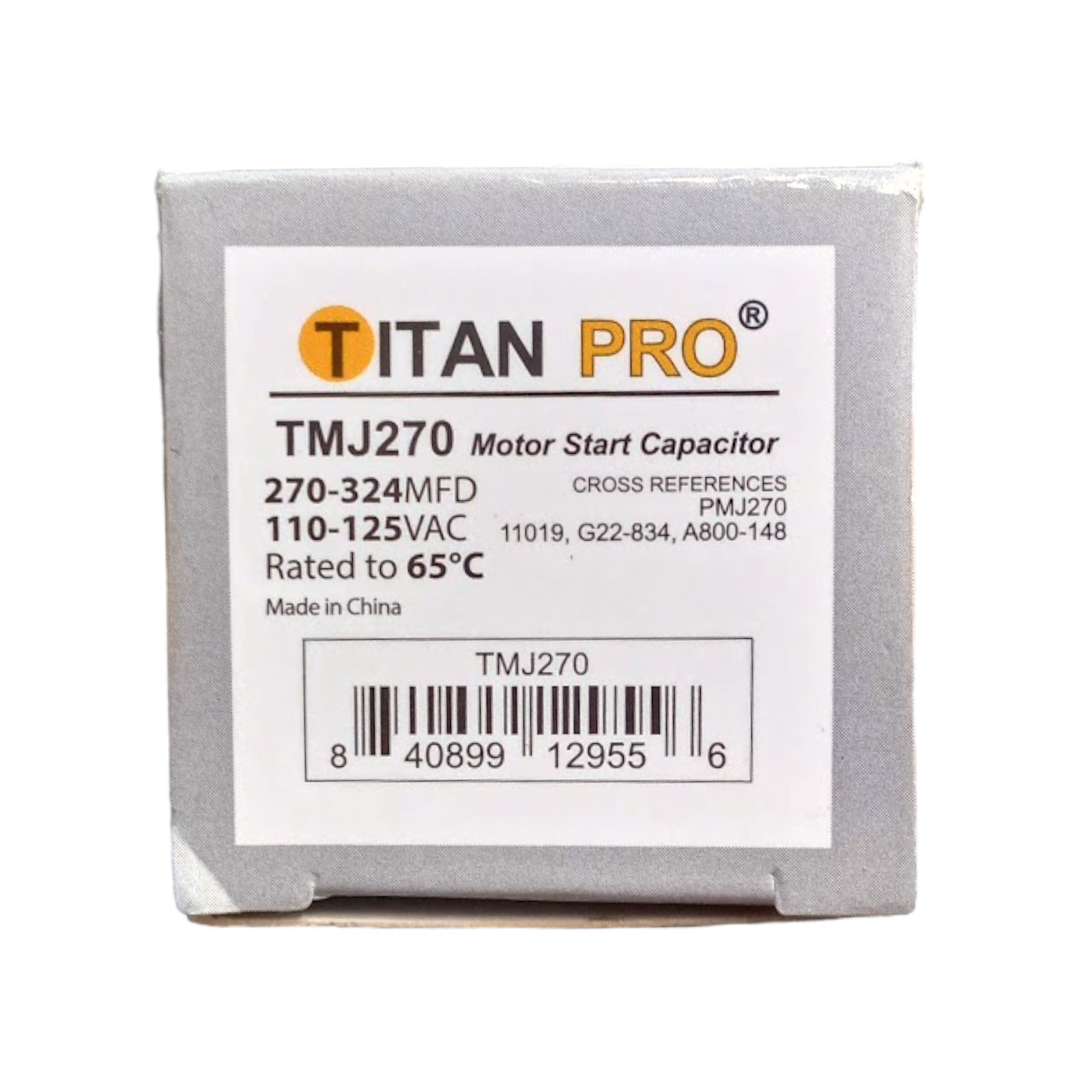

Titan Pro TMJ270 Motor Start Capacitor 270-324 MFD UF / 110-125 VAC

Specifications

Titan Pro TMJ270 Motor Start Capacitor 270-324 MFD UF / 110-125 VAC Titan Pro TMJ270 Motor Start Capacitor 270-324 MFD UF / 110-125 VAC Dimensions: 1-7/16" Diameter x 2-3/4" Height. There are 1/4" male terminals on the capacitor. Rated at 270-324uf 110-125 Volts 50/60HZ. Features: Dry,electrolytic, non polarized capacitors for intermittent duty in AC motor starting circuits. Cans are made of moisture and oil resistant molded phenolic resin or plastic. Standard dual blade terminals. Operating temperature range: -40C to 65C (-40F to 149F) UL and cUL recognized Rated 3-second start. 50/60 Hertz. Product Details BrandTitan ProManufacturerTitan ProProduct TypeStart CapacitorMpnTMJ270 Titan Pro part number TMJ270Motor Start Capacitor270-324 MFD UF / 110-125 VAC1-7/16" Diameter x 2-3/4" Height1/4" male terminals Check out my other items. -Powered by
