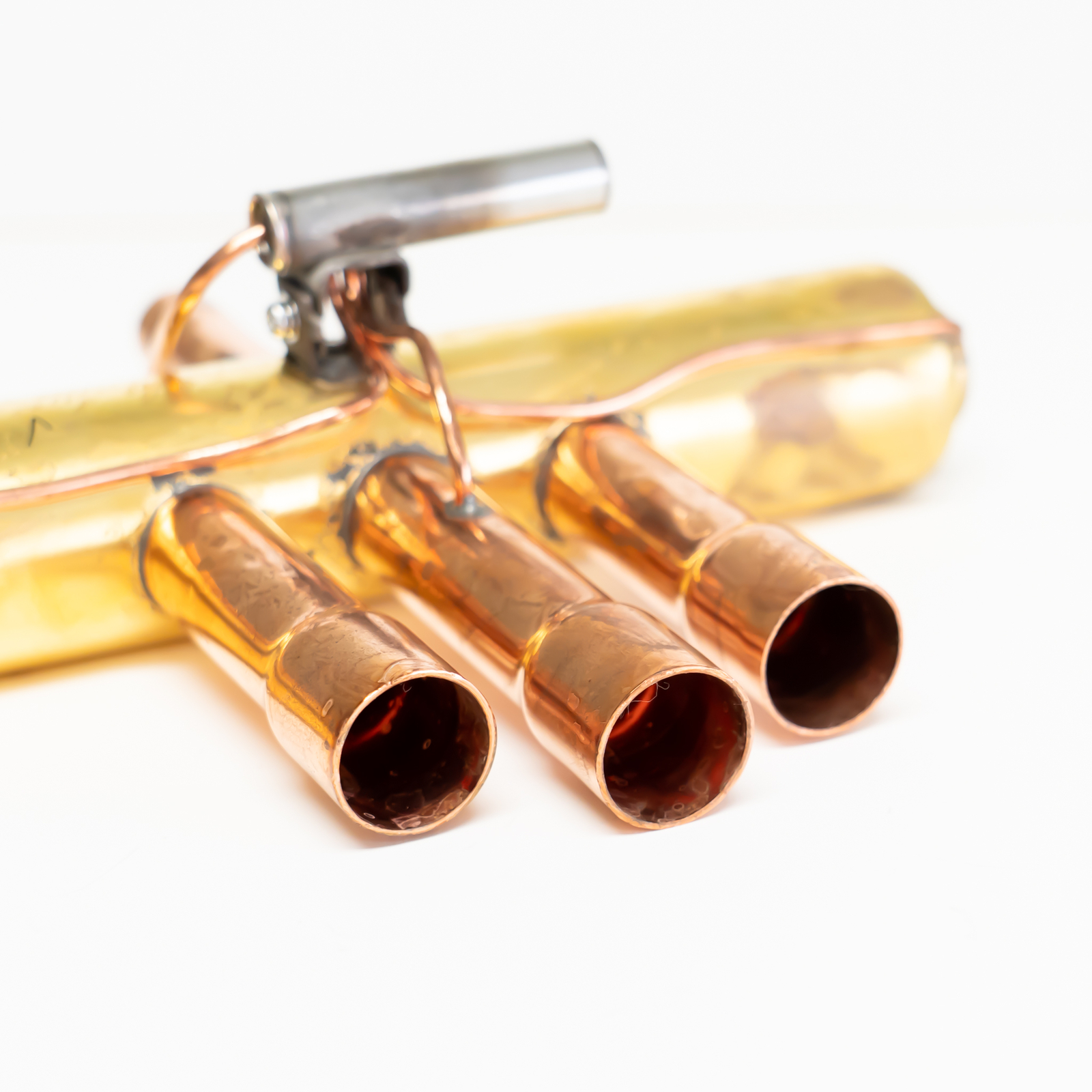

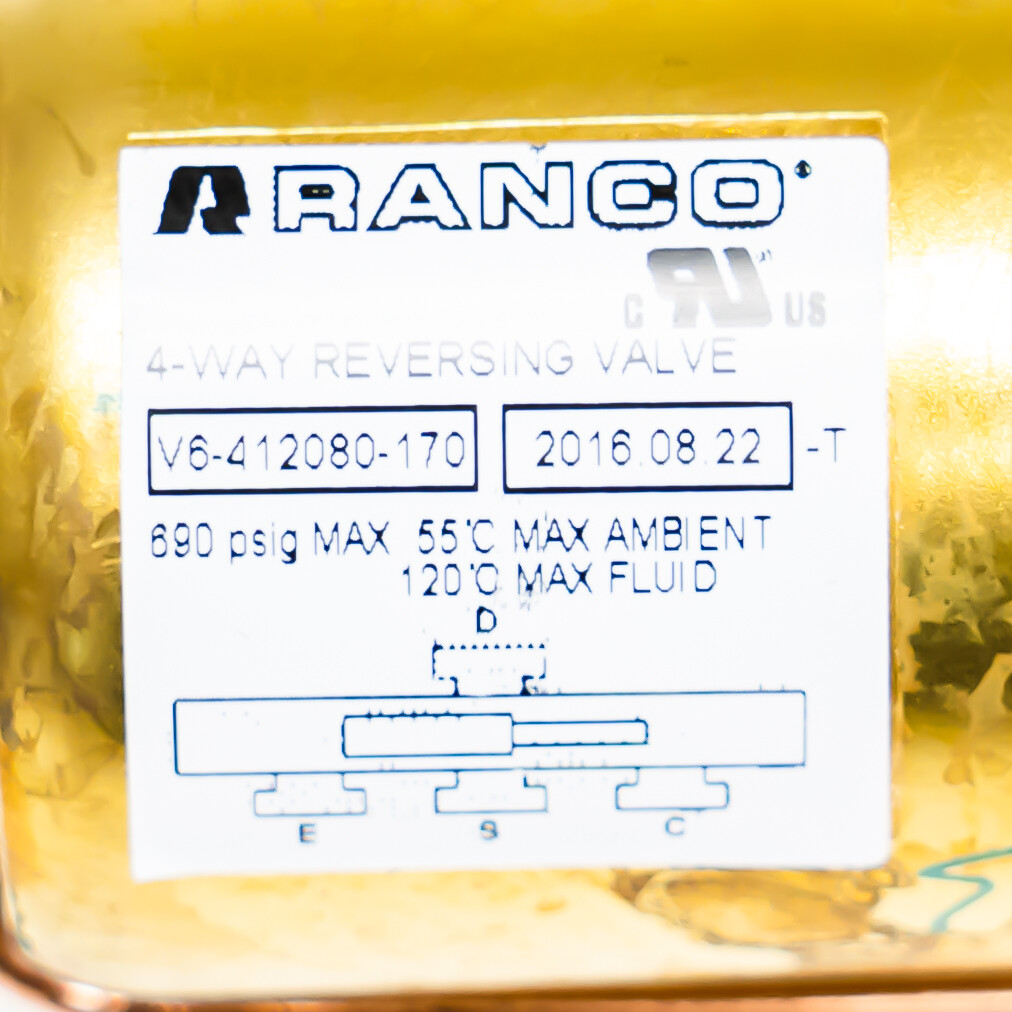

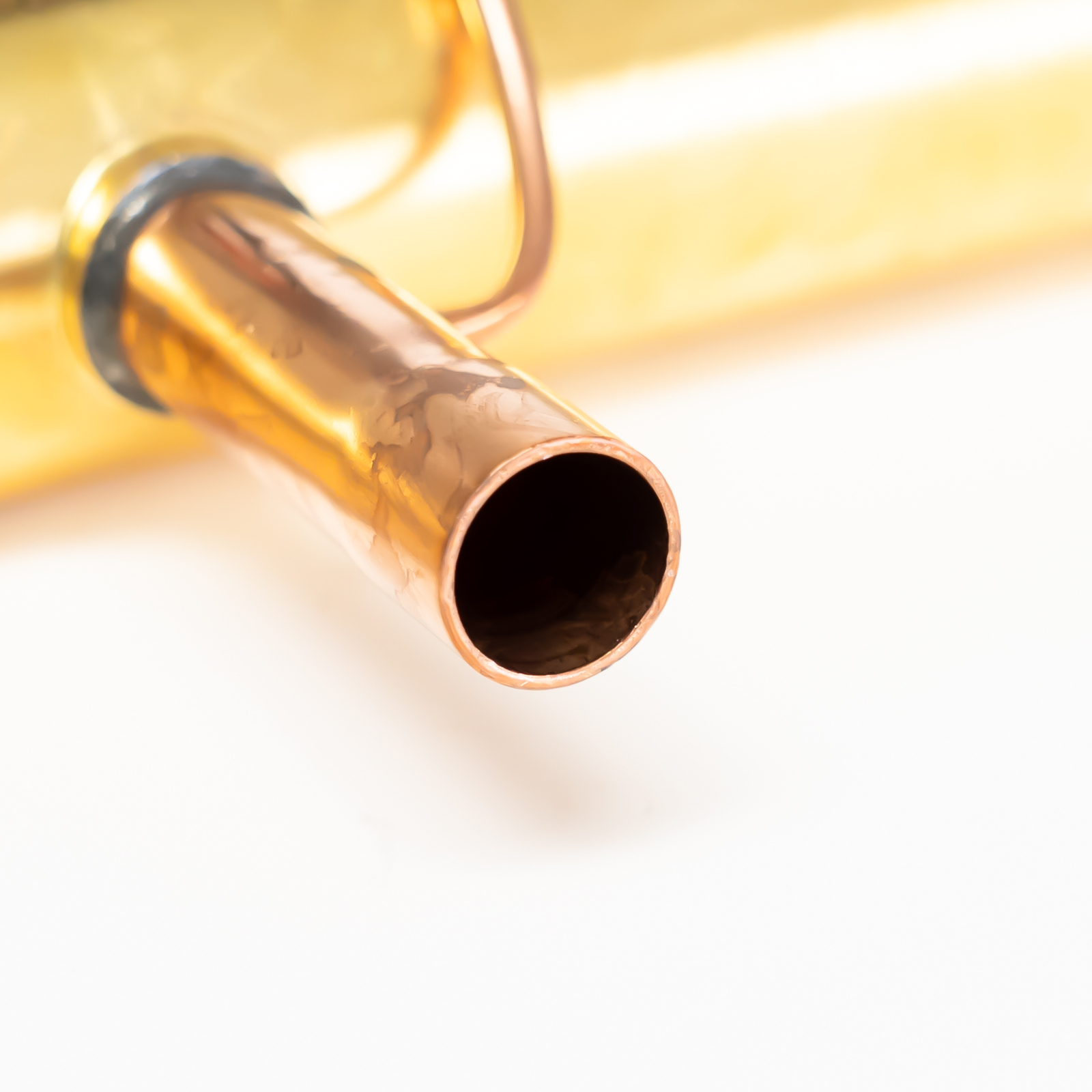

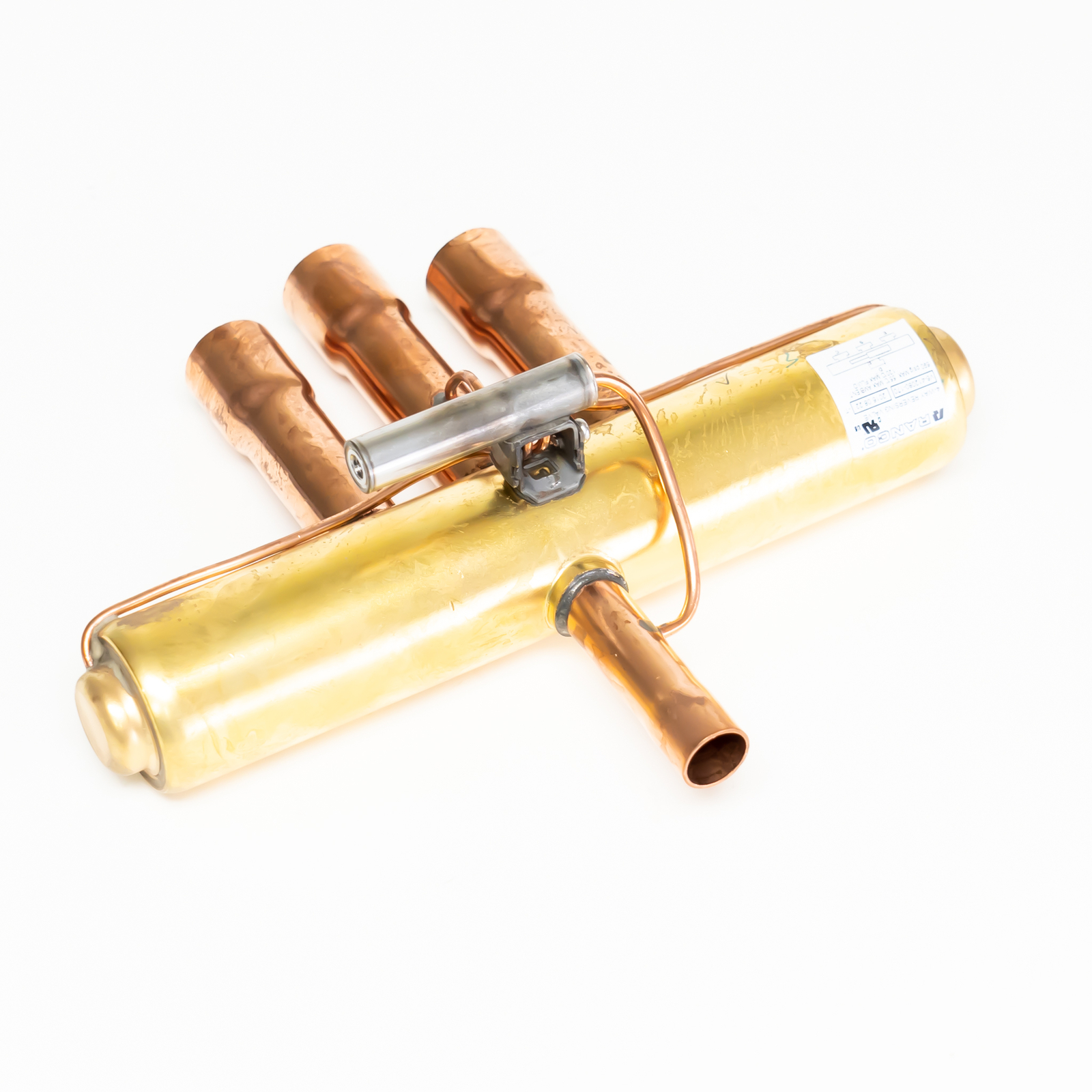

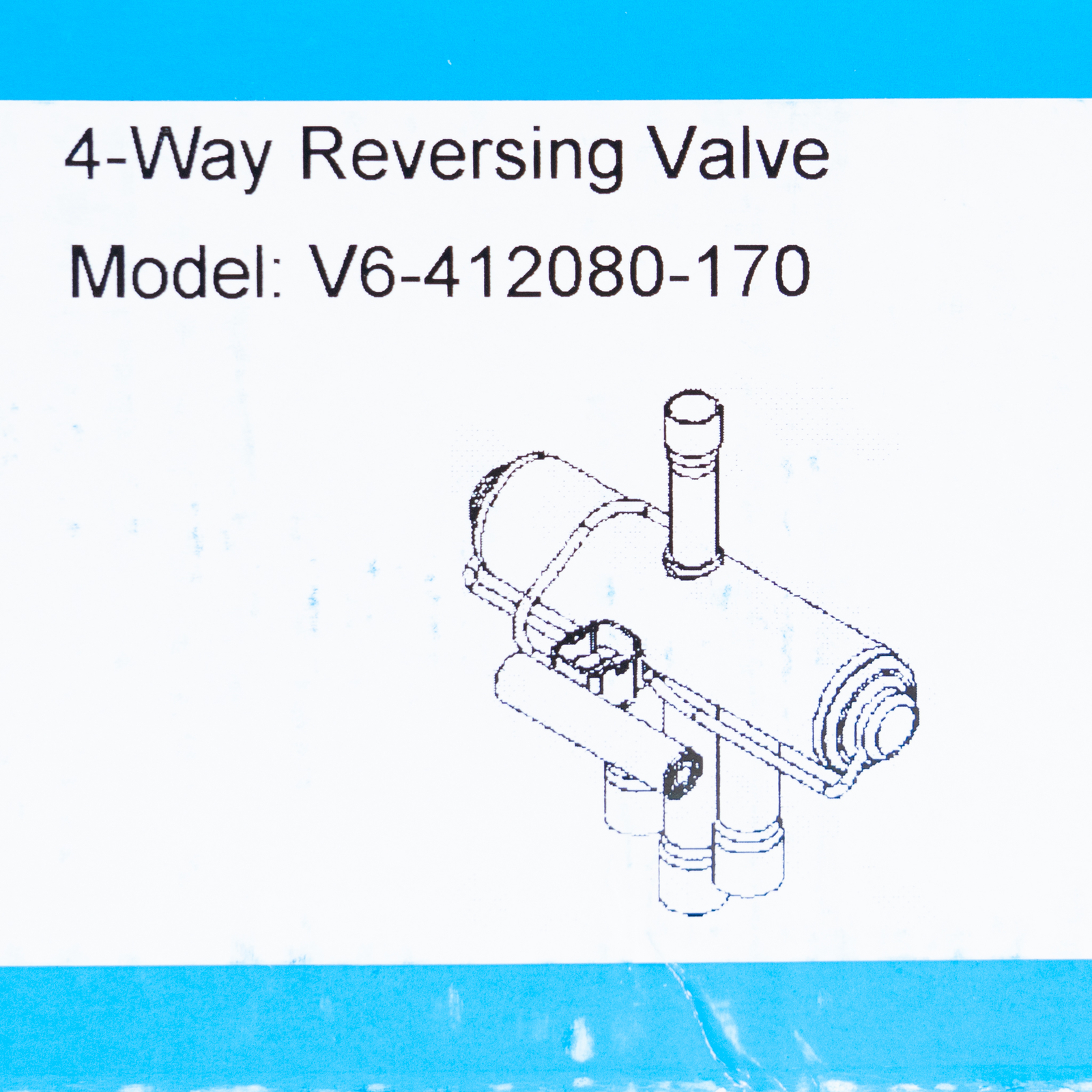

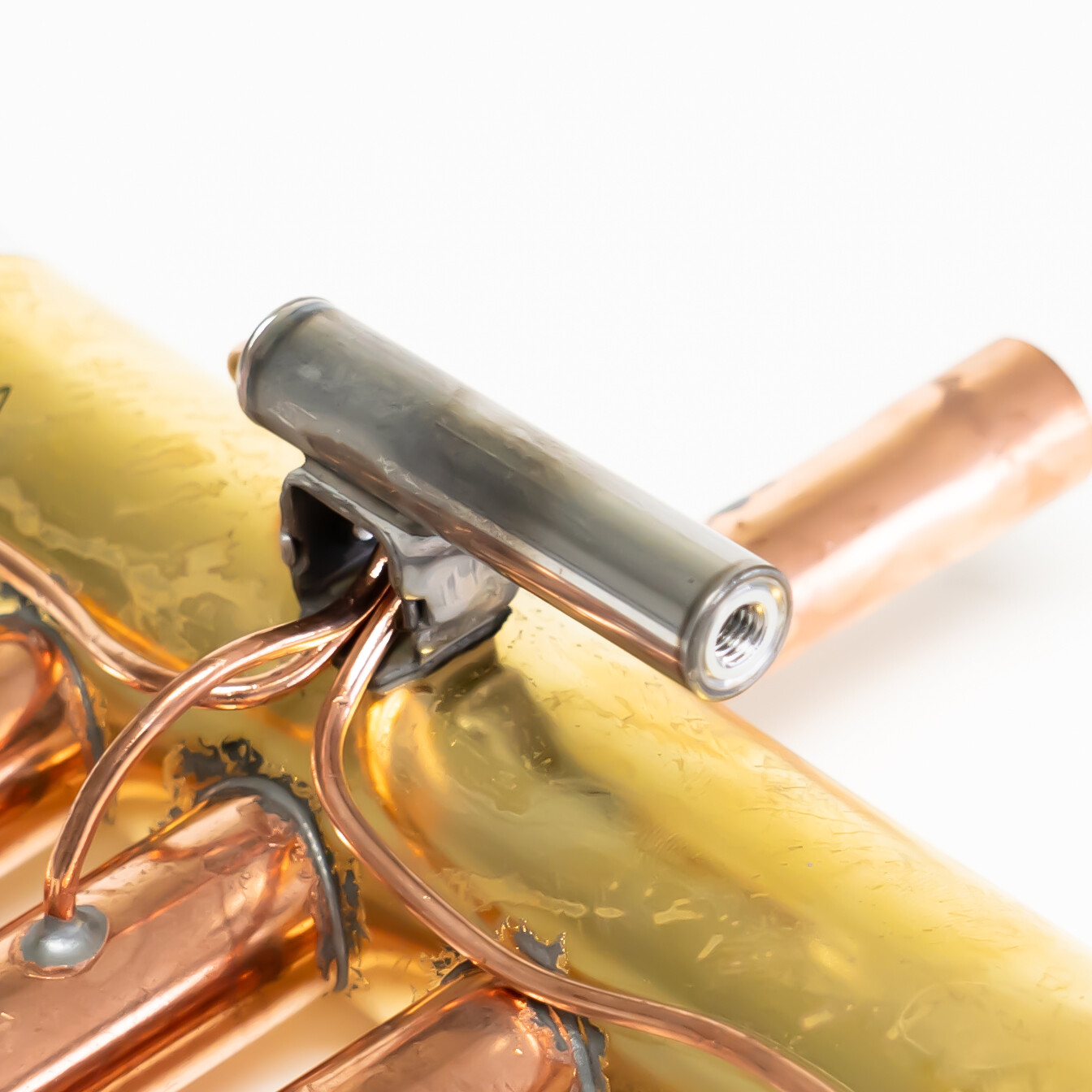

Ranco V6-412080-170 Refrigerant Heat Pump Reversing Valve 3/4 in x 1/2 in 6 tons

Specifications

Ranco V6-412080-170 Refrigerant Heat Pump Reversing Valve 3/4 in x 1/2 in 6 tons Robertshaw Ranco part number V6-412080-1704-Way Straight Tube Refrigerant Reversing Valve3/4 in Suction x 1/2 in Discharge Tubing The Ranco 4-Way Reversing Valves are designed for heat pump applications such as window-type, unitary and split systems. They are the key component to provide heating and cooling from the heat pump system by reversing the flow direction of the refrigerant. These solenoid operated valves are slide type with a 4-way pilot valve, and operate under the full pressure of the heat pump system. Features and BenefitsMetal slide with Teflon seal assures minimal pressure drop for better functionalityMagnetic pilot valve facilitates low power consumptionOptimal internal seals ensure reliability and durability of the valveCopper inlet and outlet tubes allow for ease of installation and time saved in brazingEffortless switching from cooling to heating SpecificationsNormal Capacity: 6 tonsCompatible Media: CFC, HCFC and HFC Refrigerants, such as R22, R134A, R404A, R407C, R410AOperating Pressure: 0-690 PSIGTemperature Range: -40 to 158 degrees F (40 to 70 C)Tube Configuration: Straight TubeSuction Tube: 3/4 inDischarge Tube: 1/2 in Replacement for Sanhua SHF-20D-46 and Danfoss STF-0404G Note: Operation of the valve requires an accessory solenoid coil. Ranco LDK Series Solenoid Coils include:LDK-110000-070 (24 VAC)LDK-310000-070 (120 VAC)LDK-410000-070 (208/240 VAC)LDK-510000-070 (277 VAC)The coils listed above are rated for 5 Watts at 50 Hz and 4 Watts at 60 Hz Product Details BrandRancoColorN/AManufacturerRobertshawProduct TypeReversing ValveMpnV6-412080-170 Robertshaw Ranco part number V6-412080-1704-Way Straight Tube Refrigerant Reversing Valve3/4 in Suction x 1/2 in Discharge TubingFor Heat Pump Systems up to 6 TonsRequires Ranco LDK Series or other accessory solenoid coil Check out my other items. -Powered by
