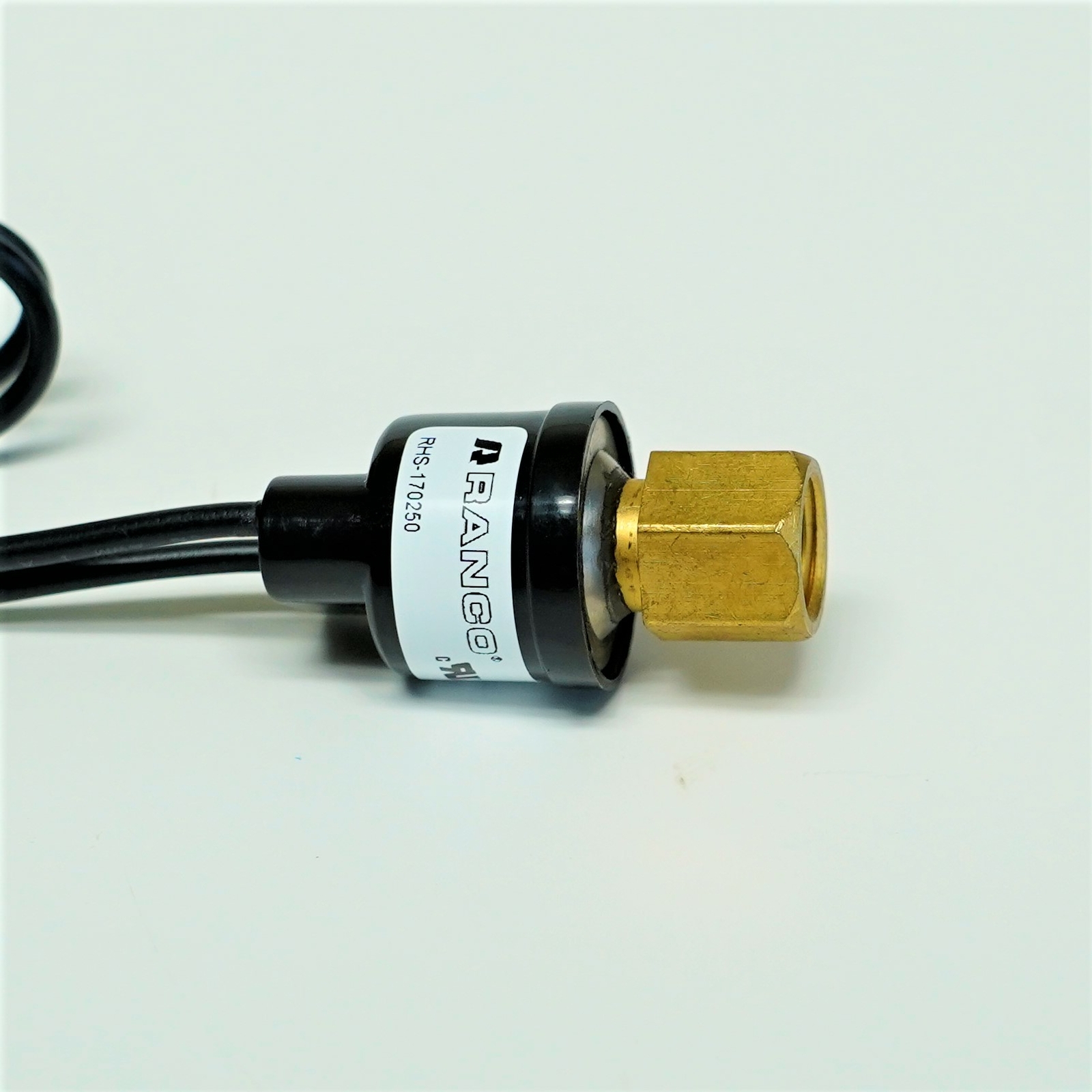

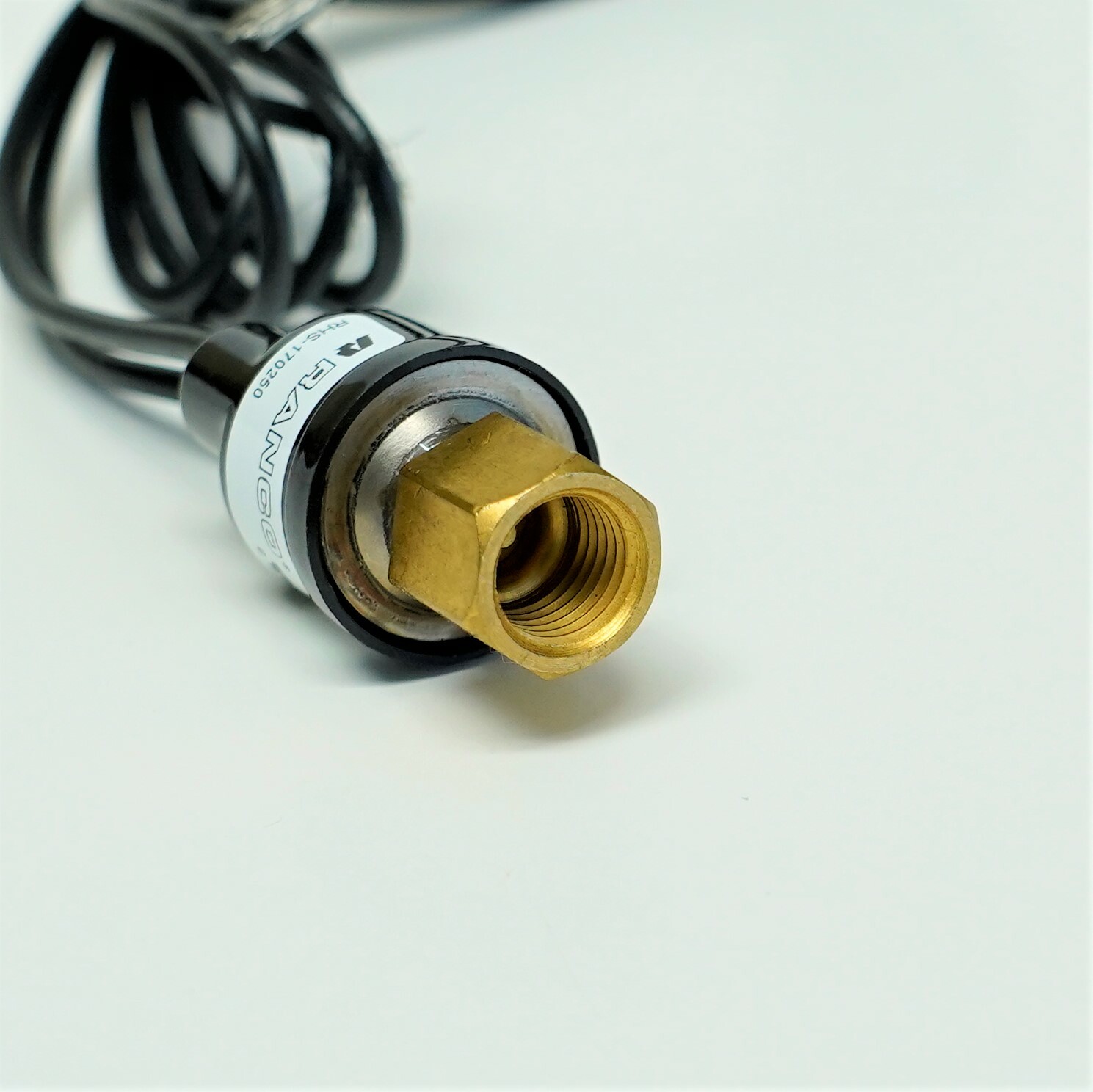

Ranco RHS-170250 Fan Cycling Pressure Switch 170-250 PSI for SFC170250 Control

Specifications

Ranco RHS-170250 Fan Cycling Pressure Switch 170-250 PSI for SFC170250 Control Ranco part number RHS-170250Fan Cycling Pressure Switch - 170 PSI Open 250 PSI Close Ranco pressure switches are designed to sense and act upon reaching a pre-set pressure threshold. The switches are durable, reliable and compact, and can be equipped with a nearly limitless variety of pressure fittings and electrical connections. Features and BenefitsHermetically (epoxy) sealed sensor design ensures protection from environmental conditionsExcellent set point stability and cycle life due to a high quality, mobile switch armRobust welded and potted wire leads facilitate reliable operationPremium sensor materials and design, including high-grade stainless steel disc for reliable lifetime performance SpecificationsApplication: Fan Cycling PressureOpen (Cut-Out): 170 PSIClose (Cut-In): 250 PSIReset: AutomaticPressure Range: 0-50 bar, 0-735 PSIGBurst Pressure: 345 bar, 5000 PSIGTerminal Type: Normally OpenFluid Temperature: -65 to 275 deg F (-55 to 135 C)Ambient Temperature: -40 to 185 deg F (-30 to 70 C)Electrical Rating: 5.8 FLA/34.8 LRA at 120 VAC, 2.9 FLA/17.4 LRA at 240V, 375 VA at 120/227 VAC, 125 VA at 24 VACPressure Fittings: 1/4 in. SAE FFElectrical Connection: IP65 rated 1m wire lead cablesLifetime: 100,000 Cycles ApplicationsPressure limitingSystem monitoring and alarmFan cyclingSpecialty controls Replacement for Johnson P100AP-4C, Mars 43355 and Supco SFC170250 Product Details BrandRancoColorN/AManufacturerRobertshawProduct TypePressure SwitchMpnRHS-170250 Ranco part number RHS-170250Fan Cycling Pressure SwitchOpens at 170 PSI, Closes at 250 PSI1/4" SAE Fitting, 1m wire lead cablesReplaces Johnson P100AP-4C, Mars 43355 and Supco SFC170250 Check out my other items. -Powered by

Related Items

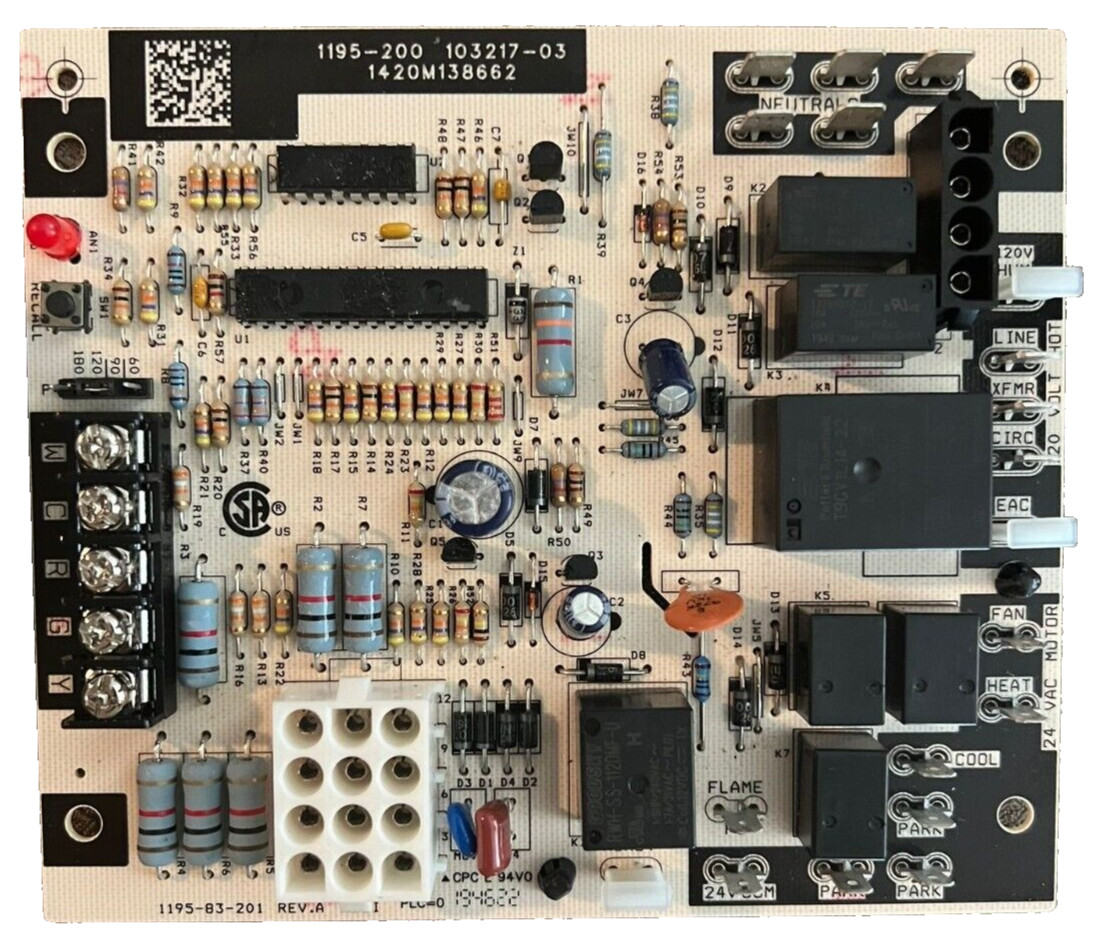

GUARANTEED WORKING TESTED GOOD 1195-200 Furnace Fan Control Board 103217

24x30x1 MERV 10 Pleated Air Filters. 12 PACK. Actual Size: 23-5/8 x 29-5/8 x 7/8

VEVOR Condenser Fan Motor 1/4HP 1100RPM 208-230V 5KCP39EGS070S 5KCP39EGY823S

Honeywell RM7895A1014 Burner Control RM7895A1014 Free Expedited Shipping

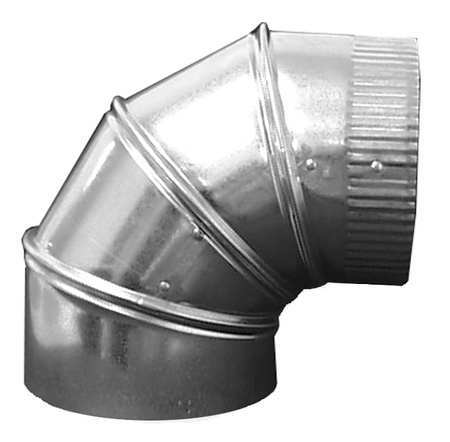

Greenseam Grae1090ga26 Round 90 Degree Elbow, 10 In Duct Dia, Galvanized Steel,

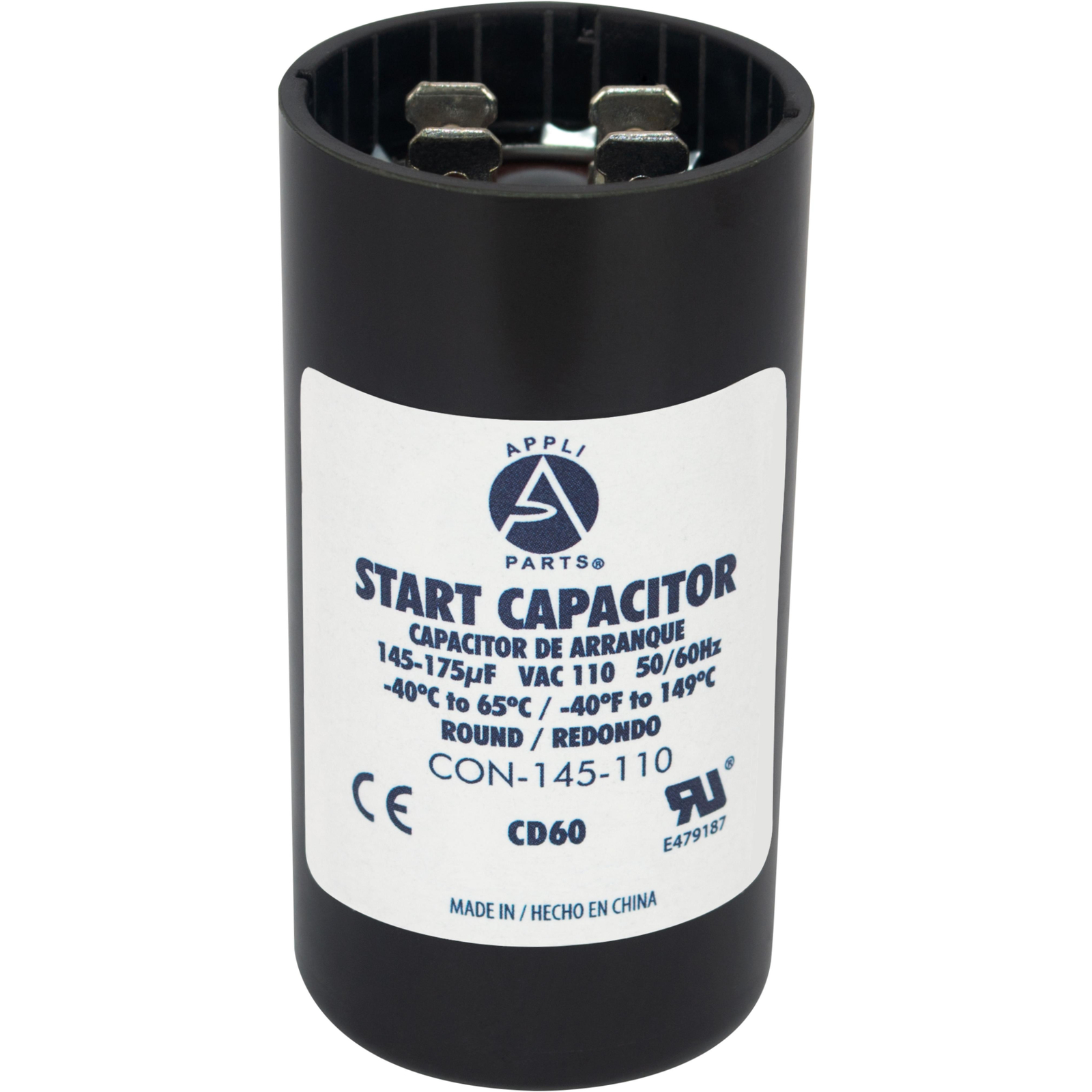

Appli Parts motor start capacitor 145-175 Mfd (microfarads) uF 110-125 VAC unive

SUPPLY AIR DUCT PLENUM 17.5 X 21 X 18 LONG GALVANIZED STEEL 26 GAUGE

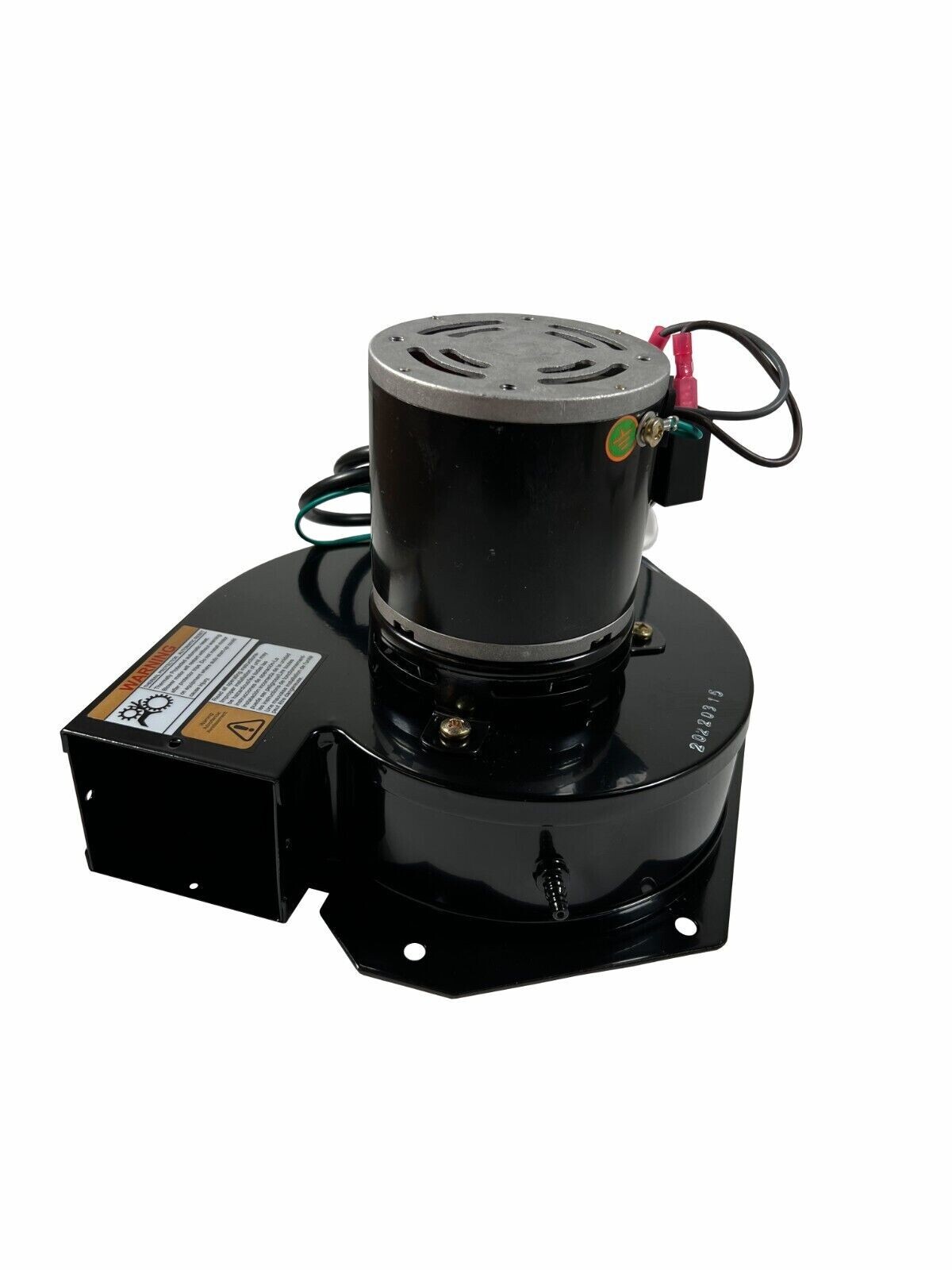

Furnace Inducer Motor For Fasco A206 Lennox 7021-8473 7021-8983
