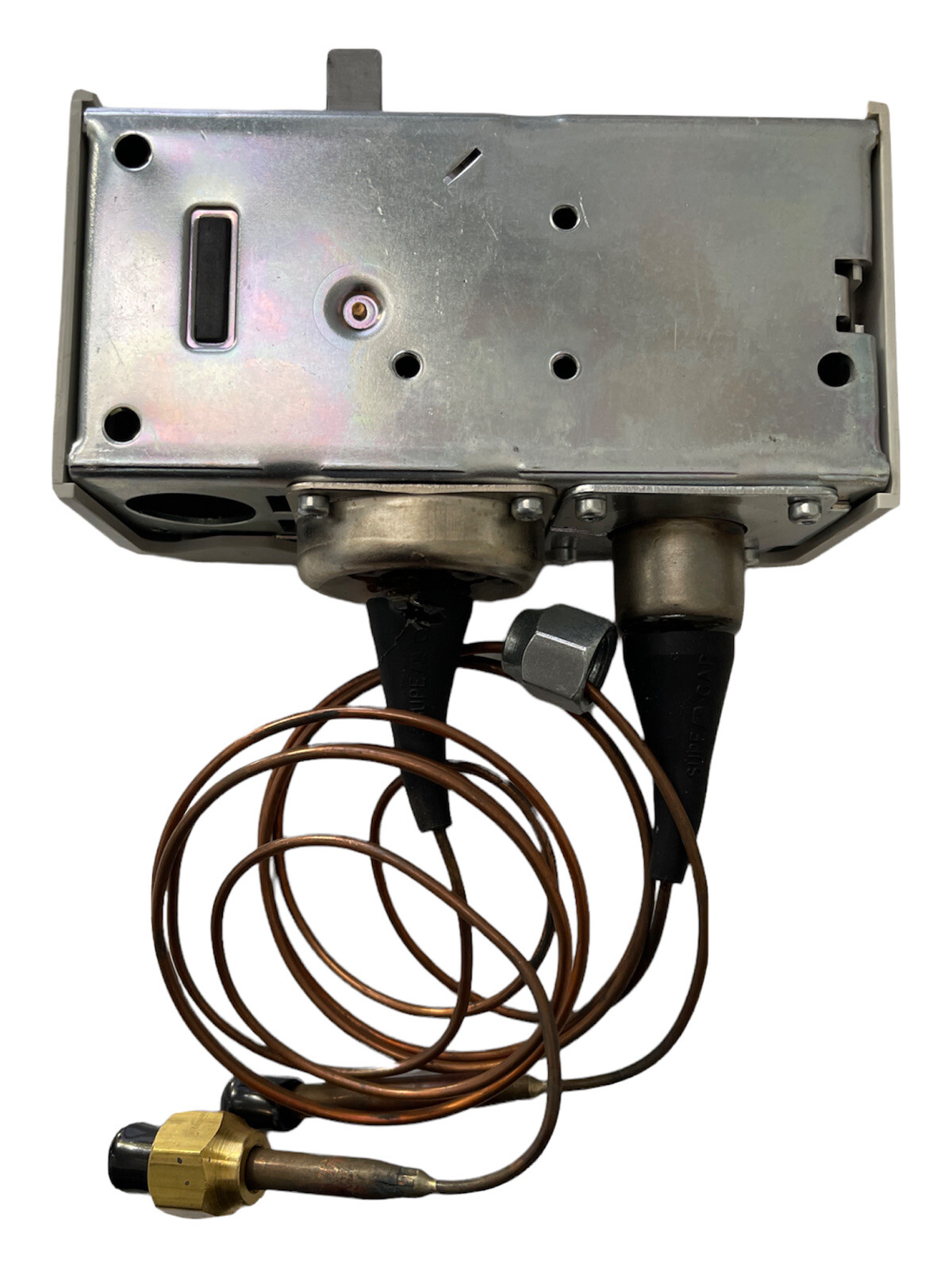

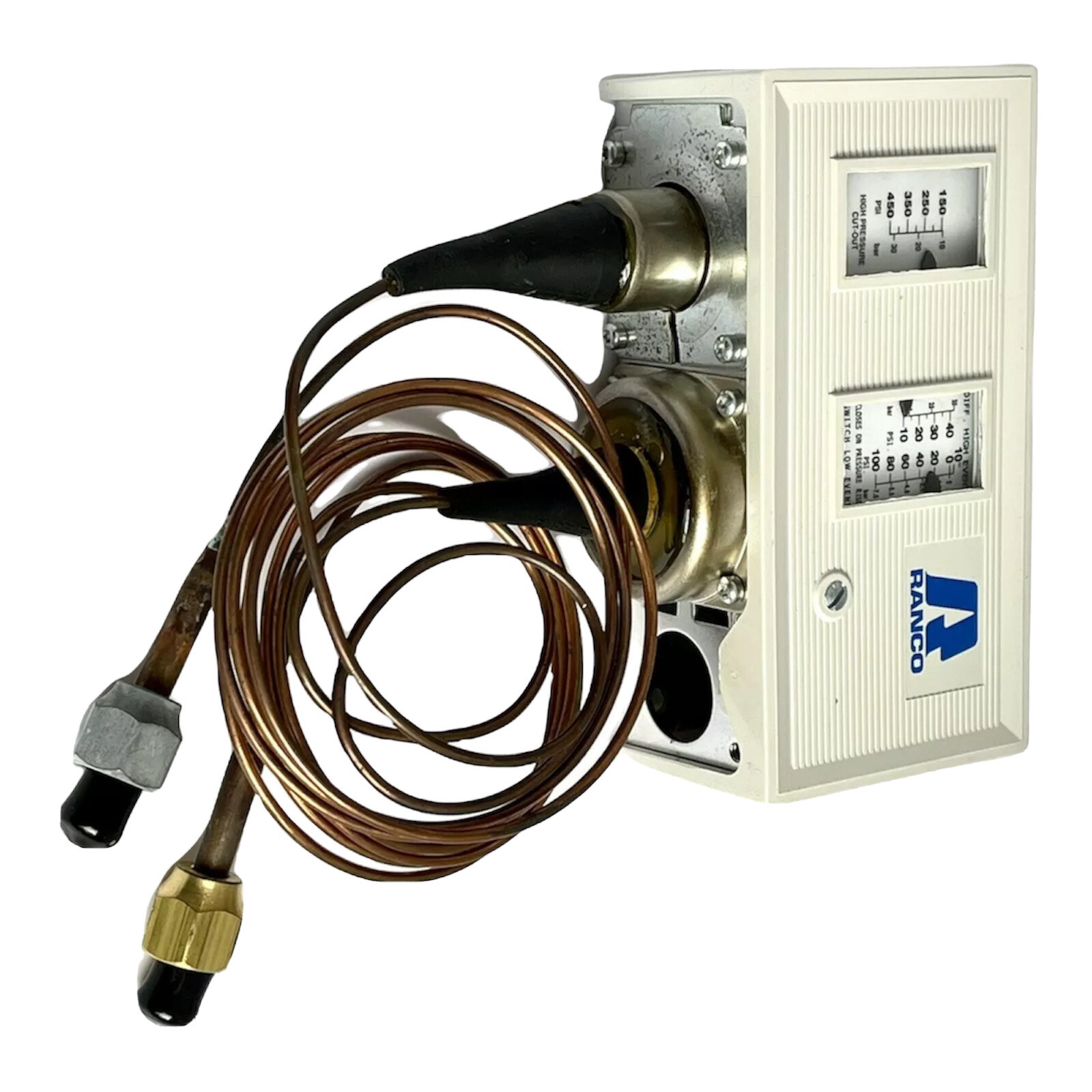

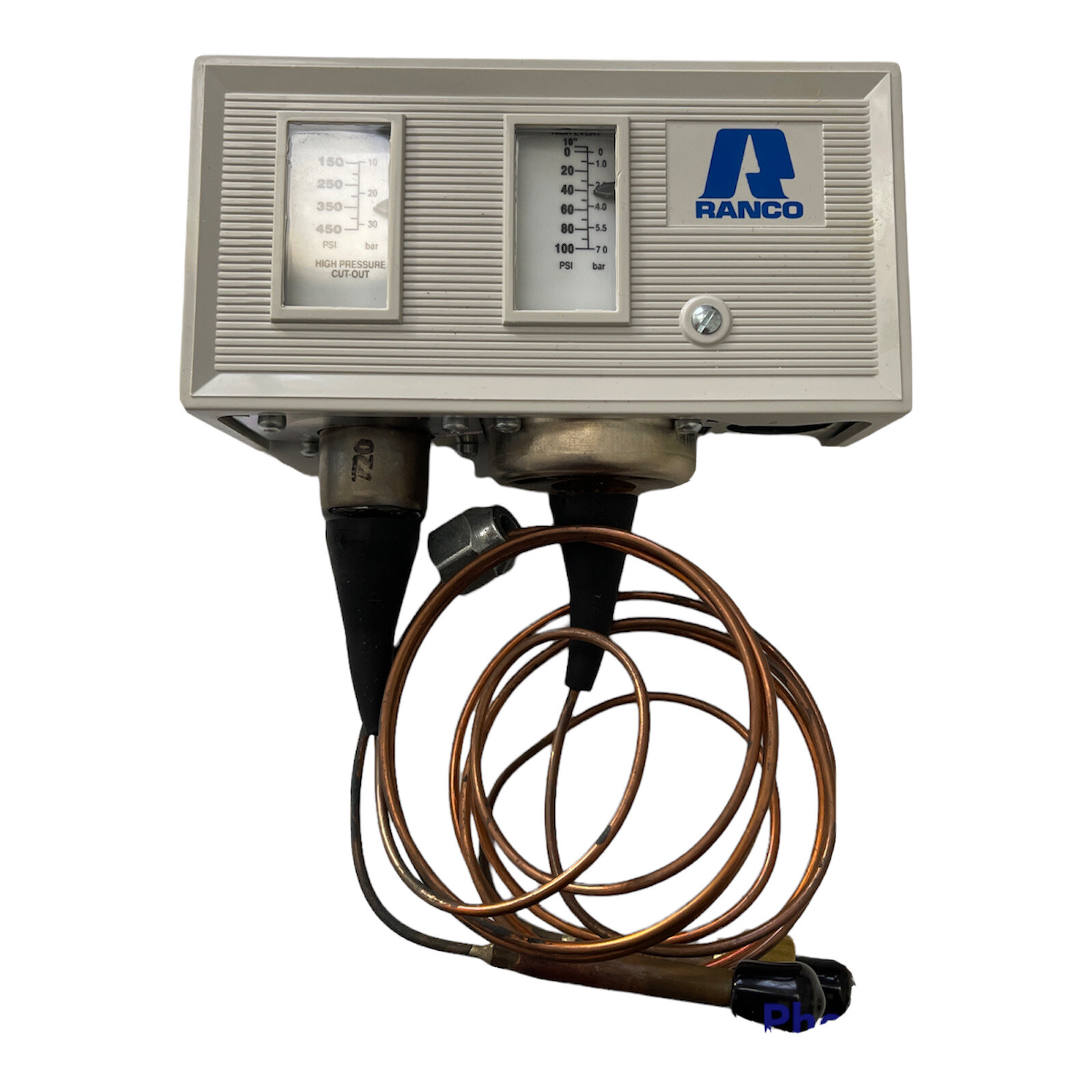

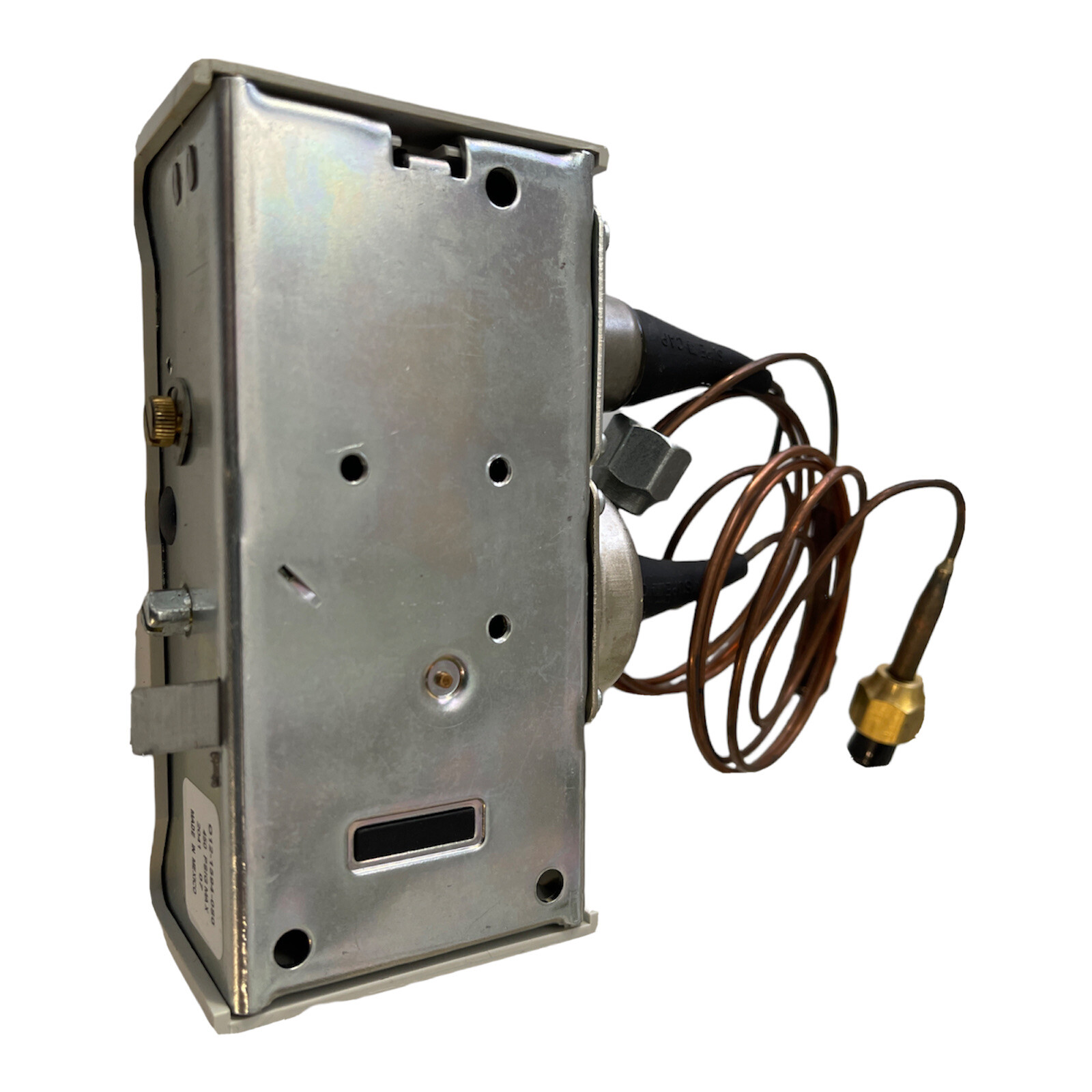

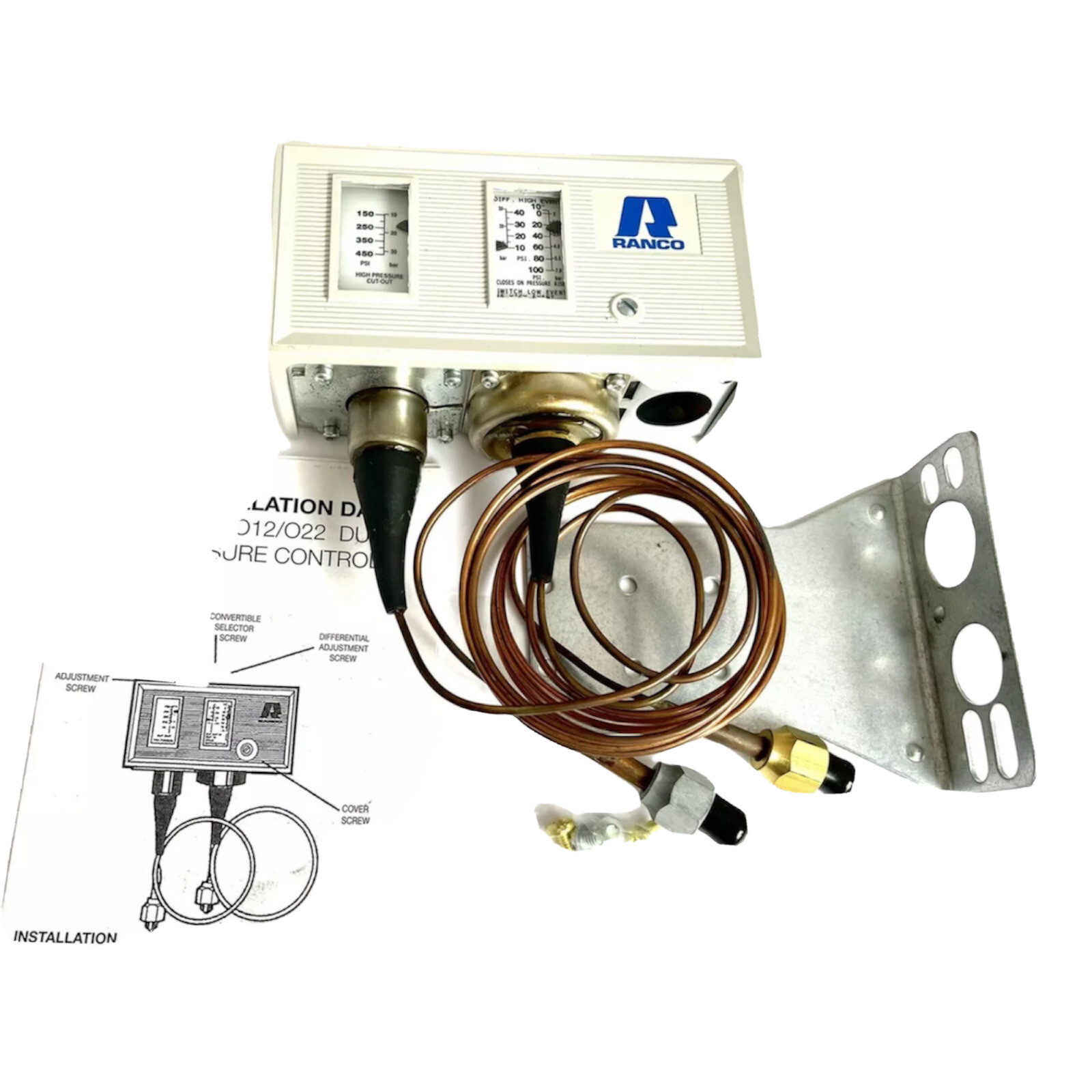

Ranco O12-1594 Dual Function Pressure Control, 100 psi Low, 150 – 450 psi High

Specifications

Ranco® O12 Pressure Control, Dual Function, 10 Inch Hg - 100 psi Low, 150 - 450 psi High, 10 - 40 psi Low Pressure, 70 psi High Pressure Differential, Closes On High/Opens On Low, SPST Switch, 24/240 V, 1/4 Inch SAE Flare Nut, 36 Inch Capillary Length, Screw Terminal, Universal Mount, NEMA 1, Non-ConductiveExclusive convertible reset for manual or automatic high pressure reset on some modelsFront located captive cover screwLarge, easy to read scale plateSuper CAP® capillary protection systemColor coded flare nutsHigh pressure compressor protection with low pressure cycling or safety functionsUniversal mounting and compact designAuto resetMain switch off time: 1 - 30 secMain switch on time: 30 - 90 secFull load A: 24 FLA at 120/240 VLocked rotor A: 144 LRA at 120/240 VPilot duty: 144 VA at 24 V; 720 VA at 120/240 V; 125 VA at 241 - 600 VApplication: Air Conditioning and R-12, R-22 and R-502 RefrigerantsProducts specificationsAttribute nameAttribute valueCapillary Length36 InchConnection Type1/4 Inch SAE Flare NutContact FormSPST, Closes On High/Opens On LowContact Rating24/240 VDifferential10 - 40 psi Low Pressure, 70 psi High PressureElectrical ConnectionScrew TerminalEnclosure TypeNEMA 1, Non-ConductiveManufacturerRobertshawMounting TypeUniversalPressure Range10 Inch Hg - 100 psi Low, 150 - 450 psi HighSeriesO12TypeDual Function
