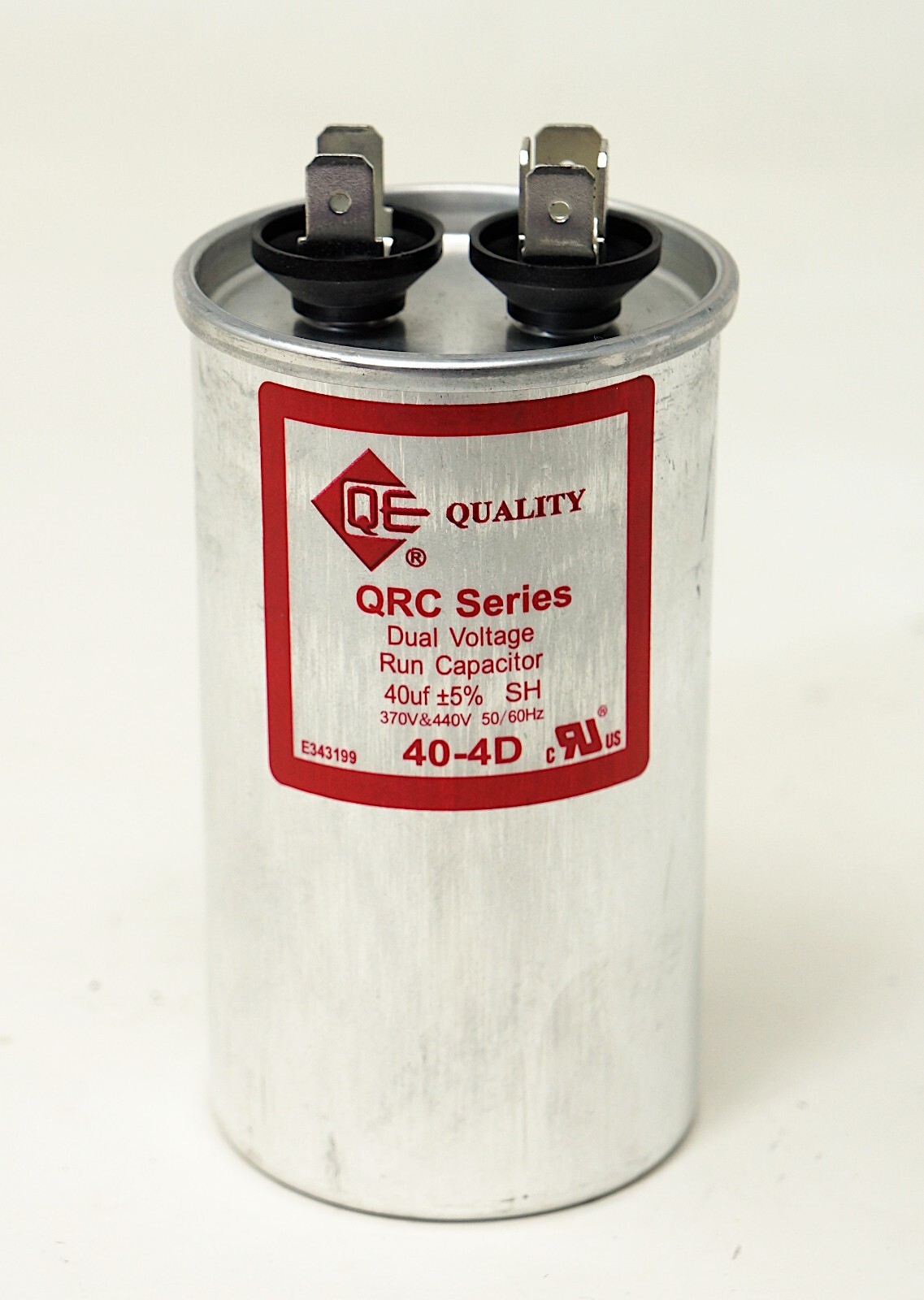

QE Quality 40 MFD Motor Run Capacitor 370 / 440 VAC

Specifications

QE Quality 40 MFD Motor Run Capacitor 370 / 440 VAC SpecsType: Motor Run CapacitorCapacitance: 40 MFD (uF or micro-farads)Voltage: 370 / 440 VAC 50/60 HzTerminals: 0.250" blade quick-disconnectDimensions: 1.4" Diameter x 2.8" Length How To Choose a Motor Capacitor:The following factors should be used in determining a replacement motor capacitor, in order of importance:Type: Start or Run. Motors may have a start, a run, or both types of capacitors in it. Run capacitors typically have a smaller capacitance rating, usually less than 100 MFD, and a fixed value, such as 60 MFD (uF). They also are *usually* in a silver metal can. Start capacitors have a larger capacitance value, and usually are specified by a range, such as 270 - 324 MFD. They also are *usually* in a black plastic cylindrical package. Start capacitors are designed to only be in the circuit for a few seconds as the motor is starting up, then a switch inside the motor turns it off. Run capacitors stay in the circuit all the time.Capacitance. Capacitance is specified in micro-farads, often abbreviated as MFD or uF. It is important to get a replacement value that is fairly close, but it doesn't have to be exact. Usually +/- 20% if sufficient.Voltage: This is the maximum safe operating voltage of the capacitor. The replacement capacitor should always be greater than or equal to the original capacitor voltage. It is ok if the rated voltage is higher than the original. Higher voltages usually result in a larger package, so size may become an issue on larger voltage ratings.Package Size: The size of the capacitor only matters in that the replacement capacitor needs to fit in the original housing, which is usually a metal can mounted on the top or side of the motor.Motor Start Capacitors are used to boost the starting torque of single-phase electric motors by increasing the current through the start windings during startup. They typically only stay in the circuit for a few seconds before being switched off by a centrifugal or electronic switch inside the motor. If your single-phase motor will not start, very often, the start capacitor (if it has one), could be bad. It is a common failure mode in single phase motors. Guaranteed for a full 30 days

Related Items

Diversitech BTG-UK2 Thermostat Guard 8 1/4”X4 1/2”X 3 1/4”

026940-10 Lau DD11-9A Blower Wheel Squirel Cage 11-3/4″ x 9-1/2″ x 1/2″ CCW

A60714 Metal Fan Blade 7″ Diameter 5 Blades 1/4″ Bore Hub CCW 27 Degree Prop

(Untested) Honeywell L8148J1009 Aquastat Relay — Returns Accepted, 24HR Shipping

Dayton Motor Run Capacitor 30uF 370V 2MDW4D HVAC Oval Non PCB

HC98JA036 HC98JA036D 35/5 uf MFD 370 VOLT Dual Run Capacitor Carrier Bryant

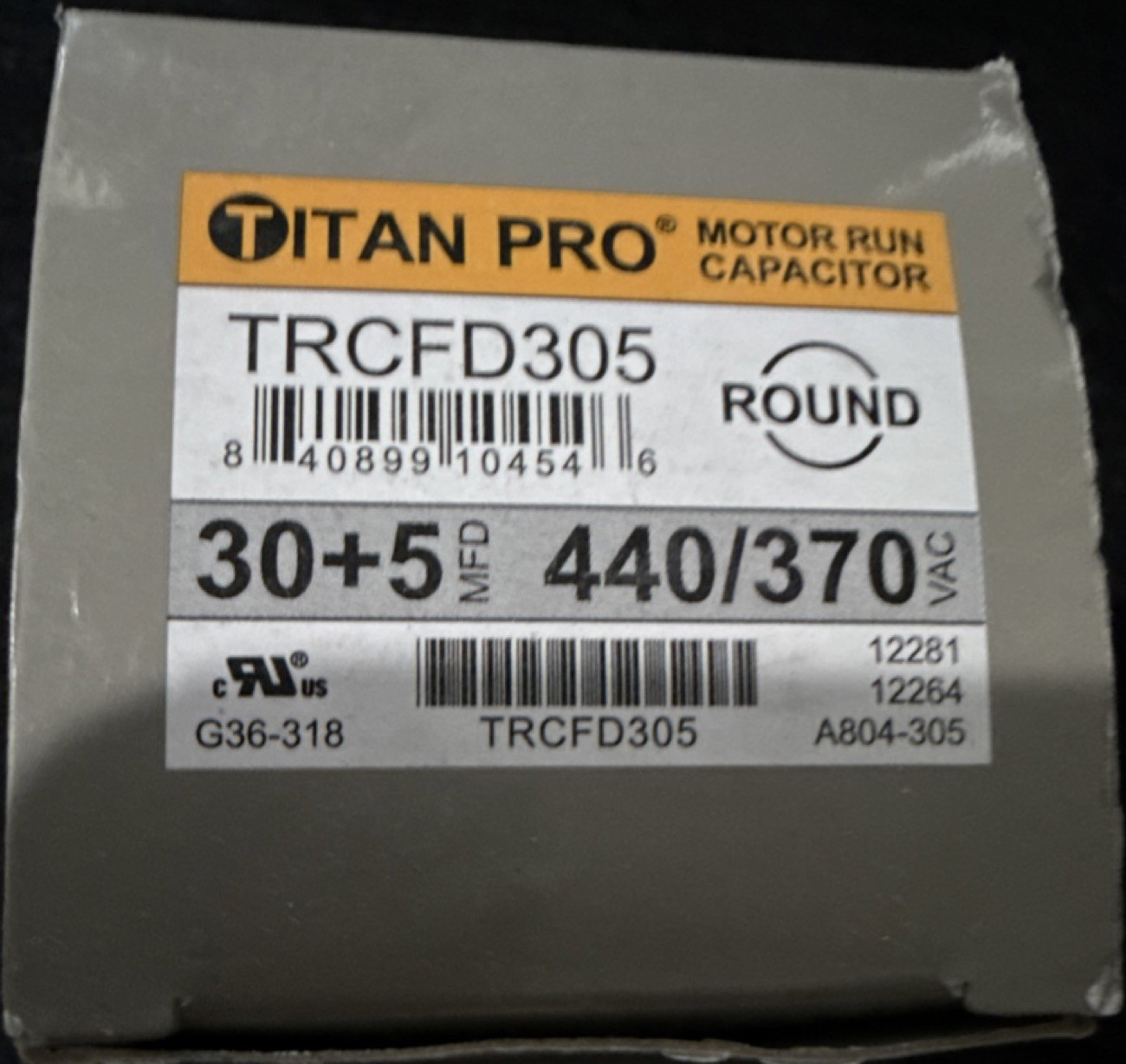

Titan Pro Motor Run Capacitor TRCFD305 30+5 MFD 440/370 VAC Round
