Pro1 IAQ T701 Digital Non-Programmable Thermostat (1H/1C) FROM PRO1 IAQ

Specifications

T701I Digital Thermostat with WiFi compatibility 1H/1C4 sq. inch displayBlue backlightGlow in the dark light buttonElectric or Gas configurableSeparate heating and cooling swing (cycle rate) adjustmentsProgramming Optional (through App)5 minute compressor delay protection (selectable on or off)Easy wire color coded terminal blocksUniversal sub-baseMounts on wall or junction box24v powerT701i Thermostat SpecsDisplay range of temperature 41°F to 95°F (5°C to 35°C)Control range of temperature 44°F to 90°F (7°C to 32°C)Load rating 1 amp per terminal, 1.5 amp maximum all terminals combinedDisplay accuracy ± 1 °FSwing (cycle rate or differential) Heating is adjustable from 0.2°F to 2.0°F Cooling is adjustable from 0.2°F to 2.0°FPower source 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)Operating ambient 32° to +105° (O° to + 41°C)Operating humidity 90% non-condensing maximumDimensions of thermostat 4.7"W x 4.4"H x 1.1"DT119 Base not included but available for purchase in store (Discounts may apply)CompatibilityDESCRIPTIONGas or Oil HeatYESElectric FurnaceYESHeat Pump No Aux or Emergency HeatYESHeat Pump + Aux or Emergency HeatNoMulti-stage SystemsNoHeat Only SystemsYESCool Only SystemsYESMillivoltNo

Related Items

Therm-O-Disc 15SH1 Fan Control Sequencer Relay 24V 40A

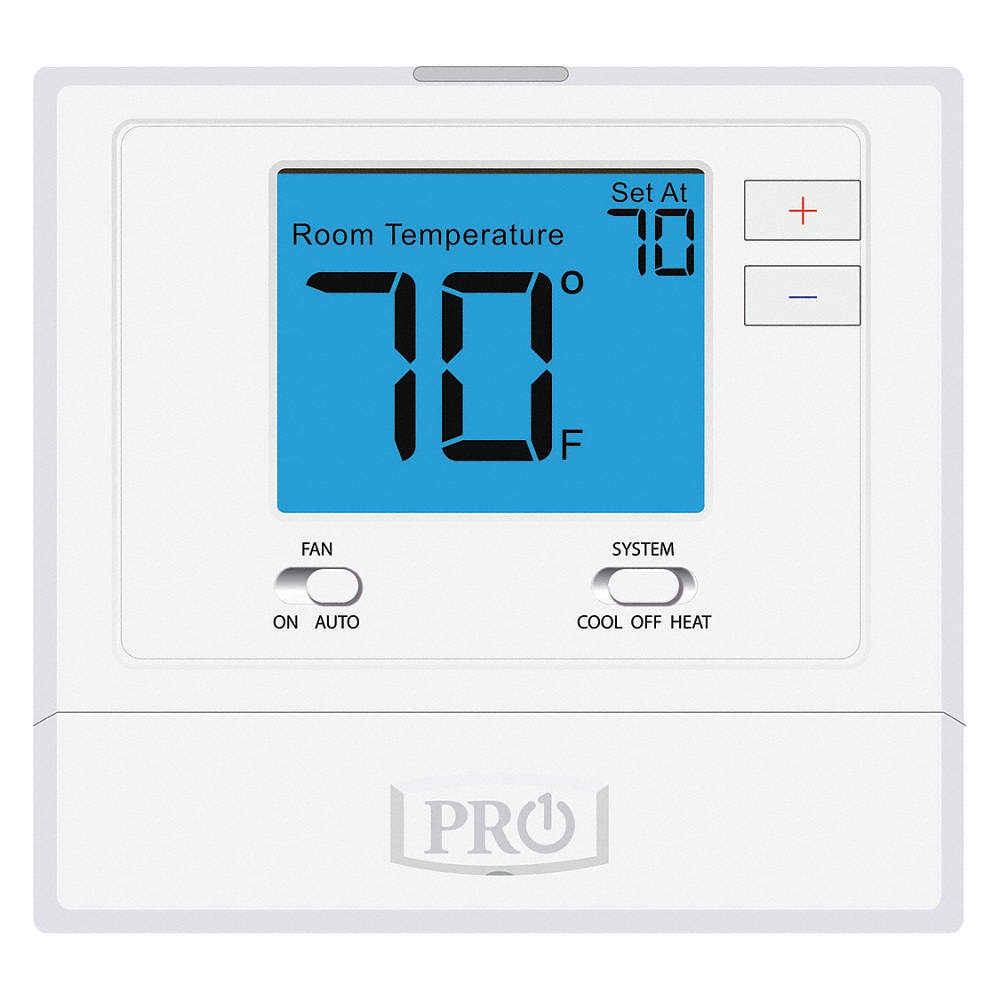

PRO1 IAQ Low Volt NP Digital Tstat H or C,Wired 45KE94
