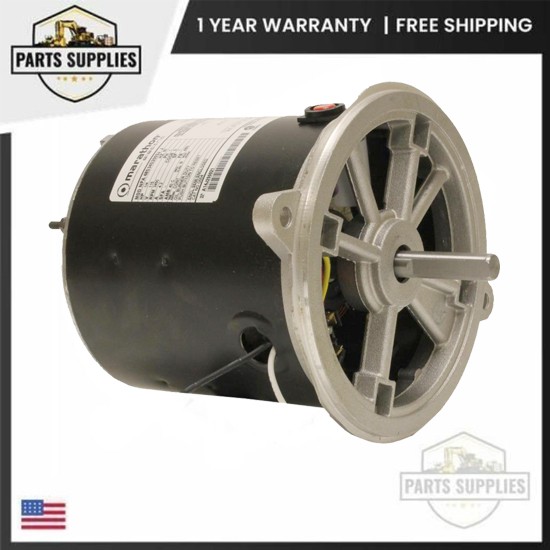

O004 Marathon Motor 1-Phase 1/4 HP 3450 RPM 115 V for Furnace and Boiler

O004 Marathon Motor 1-Phase 1/4 HP 3450 RPM 115 V for Furnace and Boiler

USD 198.07 USD

SKU: 8778egna

Brand: Marathon

MPN: MO004

GTIN: Does Not Apply

Condition: New

Tags: 0.25 kW 1 Year 1.0 1/4 HP 115 V 14 lbs ( 6.35 Kg ) 3450 RPM 4.3 A 40 °C ( 104 °F) 48NZ 5.6 in ( 142.24 mm ) 56.5 % 58.7 % 60 hz 6203 Continuous Manual Marathon Mexico MO004 MO004, O004 Motor Semi Enclosed Single Phase (1 Ph)

Categories: HVAC & Refrigeration: Parts & Accessories

Specifications

MPN	MO004
Brand	Marathon
Interchange Part Numbers	MO004, O004
Compatible Equipment Make	Marathon
Type	Motor
Part Type	Motor
Output HP	1/4 HP
Output KW	0.25 kW
Speed	3450 RPM
Voltage	115 V
Item Diameter	5.6 in ( 142.24 mm )
Power Phase	Single Phase (1 PH)
Frequency	60 Hz
Full Load Current	4.3 A
Frame Size	48NZ
Enclosure	Semi Enclosed
Thermal Protection	Manual
Duty	Continuous
Service Factor	1.0
Efficiency	56.5 %
Power Factor	58.7 %
Bearings Drive End/Opposite End	6203
Ambient Temperature	40 °C ( 104 °F )
Weight	14 lbs ( 6.35 Kg )
Warranty	1 Year
Country Of Origin	Mexico

Replaces OEM part number: Marathon: MO004, O004, 48S34S2003, 48S34S369, 48S34S375. Built for continuity and efficiency, the Marathon O004 motor provides the dependable, high-speed power required to run your oil burner system.

O004 Marathon Motor 1-Phase 1/4 HP 3450 RPM 115 V for Furnace and Boiler
