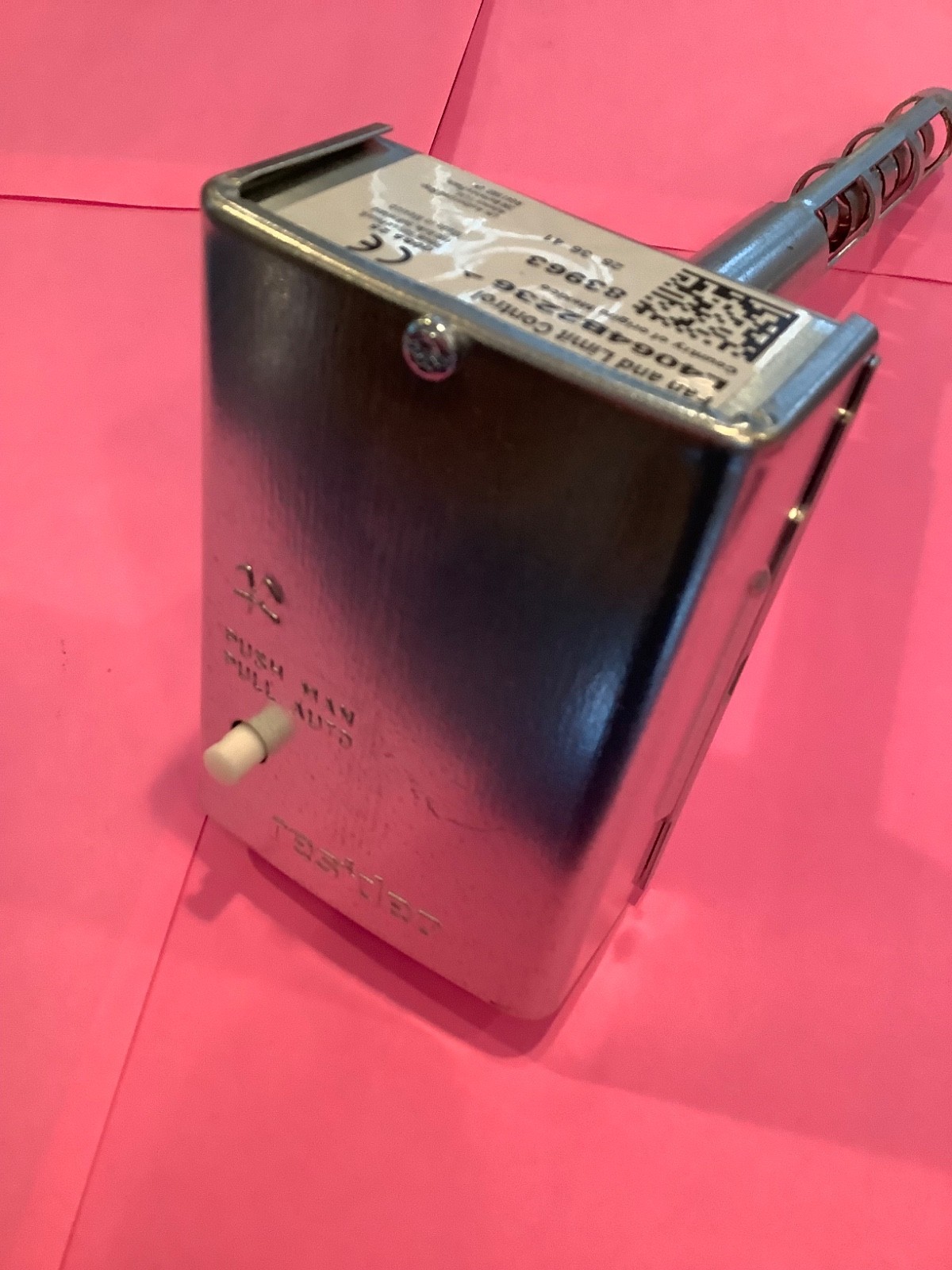

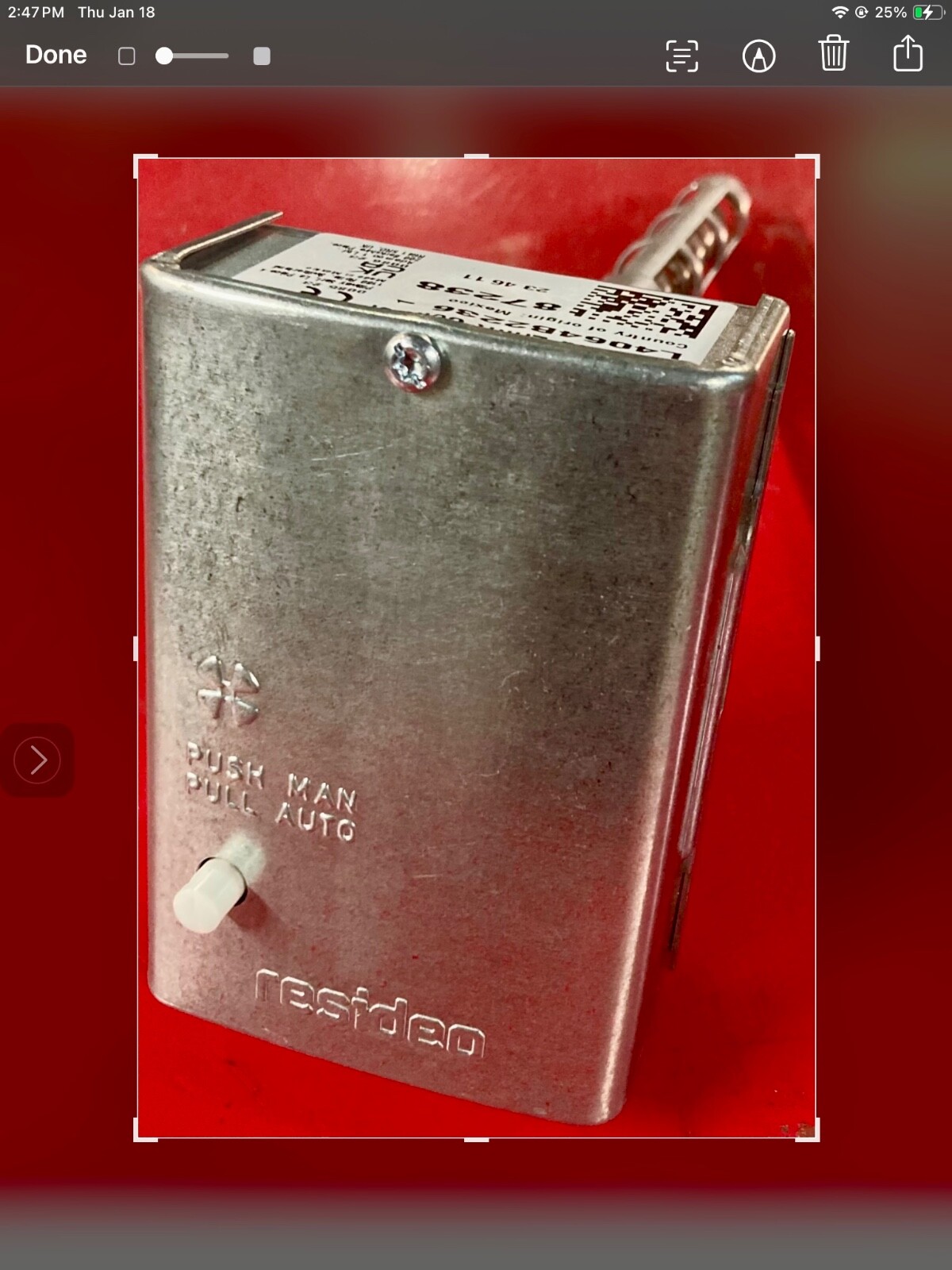

L4064B 2236 Honeywell L4064B 2772 L4064 A & E Fan & Limit 8″ Furnace Resideo

Specifications

HONEYWELL/ResideoFan & Limit ControlL4064B2236 L4064B2772L4064AL4064E8" InsertionBrand New! NOT 15 years old like others sold on eBay as New! Product Specifications DescriptionFan and Limit Controller with 125 F fan on and 100 F fan off stops, 200 F high limit stop and 8 in. insertionApplicationForced warm air heating systemsHigh Limit Temperature Range (F)100 F to 250 FHigh Limit Temperature Range (C)38 C to 121 CElement Insertion Length (in.)8 in. Fan-on Range (F)65 F to 215 FFan-on Range (C)18 C to 102 CFan-off Range (F)50 F to 200 FFan-off Range (C)10 C to 93 CHigh Limit Stop (F)200 FFan-on Stop (F)125 FFan-off Stop (F)100 FSwitching ActionFan switch makes and high limit switch breaks on temperature rise.Electrical Rating Fan (AFL)14 A @ 120 VacElectrical Rating Fan (AFL)7 A @ 240 VacElectrical Rating Fan (ALR)84 A @ 120 VacElectrical Rating Fan (ALR)42 A @ 240 VacElectrical Rating Limit (AFL)4 A @ 240 VacElectrical Rating Limit (AFL)8 A @ 120 VacElectrical Rating Limit (ALR)24 A @ 240 VacElectrical Rating Limit (ALR)48 A @ 120 VacPilot Duty Ratings2 A @ 24 VacPilot Duty Ratings0.25 A @ 0.25 to 12 VdcOperating Temperature Range (F)-40 F to +190 FOperating Temperature Range (C)-40 C to +88 CDifferential Temperature (F)High limit 25 FDifferential Temperature (C)High limit 14 CMaximum Ambient Temperature (F)Switch: 190F; Sensing Element: 350 FMaximum Ambient Temperature (C)Switch: 88 C; Sensing Element: 177 CMountingRigid bracketDimensions (in.) Dimensions (mm)109 mm high x 76 mm wide x 40 mm deep excluding elementApprovals, Underwriters Laboratories IncListed File MP466, Guide MBPRApprovals, Canadian Standards AssociationCertified: File No. LR1622CommentsTurns fan on and off according to plenum temperature. With helical bimetal sensing element. High limit stop set at 200F (93 C). With manual fan switch. Deluxe cover. Replaces L4064A,B,E.Please note some of the items require professional knowledge and skills to handle or installed. Thomas New Parts is not responsible for any damage or injuries resulted from mishandling of professional products. All HVACR equipment should be serviced/installed by certified professionals only. Please let us know if you have any concerns or questions. Before Opening a Return Request or eBay Resolution CasePlease contact us through the eBay message center and let us know how we can help!Once a case is opened it is difficult to correct your problem!
