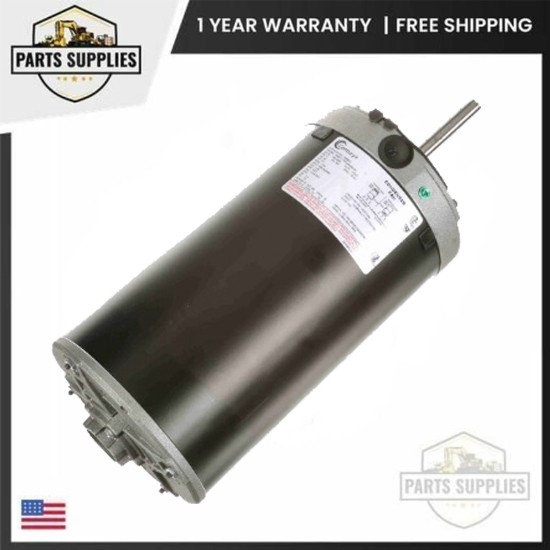

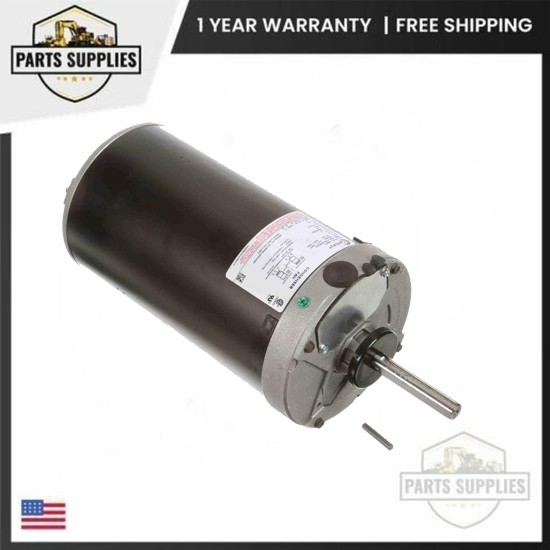

H698V1 Century 3-Phase 2HP 208-230/460V 1140RPM 56Y TEAO REV Condenser Fan Motor

H698V1 Century 3-Phase 2HP 208-230/460V 1140RPM 56Y TEAO REV Condenser Fan Motor

USD 586.14 USD

SKU: Rwa2egna

Brand: Century

MPN: UH698

GTIN: Does not Apply

Condition: New

Tags: 0.625 in ( 15.88 mm ) 1 Year 1.0 1.5 kW 1140 RPM 16.70 in ( 424.18 mm ) 2.0 HP 208-230/460 V 3 Phase 3.44 in ( 87.38 mm ) 46 lbs ( 20.87 Kg ) 56Y 6.3-6.2/3.1 A 60 hz 70 °C (158 °F) Across The Line Ball/Ball CENTURY Century, Regal Rexnord Continuous Motor Three Phase (3 Ph) UH698 UH698, H698V1

Categories: HVAC & Refrigeration: Parts & Accessories

Specifications

MPN	UH698
Brand	Century
Interchange Part Numbers	UH698, H698V1
Compatible Equipment Make	Century, Regal Rexnord
Type	Motor
Part Type	Motor
Power Phase	Three Phase (3 Ph)
Voltage	208-230/460 V
Frequency	60 Hz
Output HP	2.0 HP
Output KW	1.5 kW
Full Load Amps	6.3-6.2/3.1 A
Rated Speed	1140 RPM
NEMA Frame	56Y
Service Factor	1.0
Ambient Temperature	70 °C (158 °F)
Duty Cycle	Continuous
Bearings	Ball/Ball
Shaft Diameter	0.625 in ( 15.88 mm )
Shaft Extension	3.44 in ( 87.38 mm )
Overall Length	16.70 in ( 424.18 mm )
Starting Method	Across The Line
Weight	46 lbs ( 20.87 Kg )
Warranty	1 Year

The Century H698V1 Condenser Fan Motor is a robust, three-phase definite purpose motor engineered for high-efficiency operation in HVAC/R condenser fan systems. Replaces OEM part number: UH698, H698V1.
