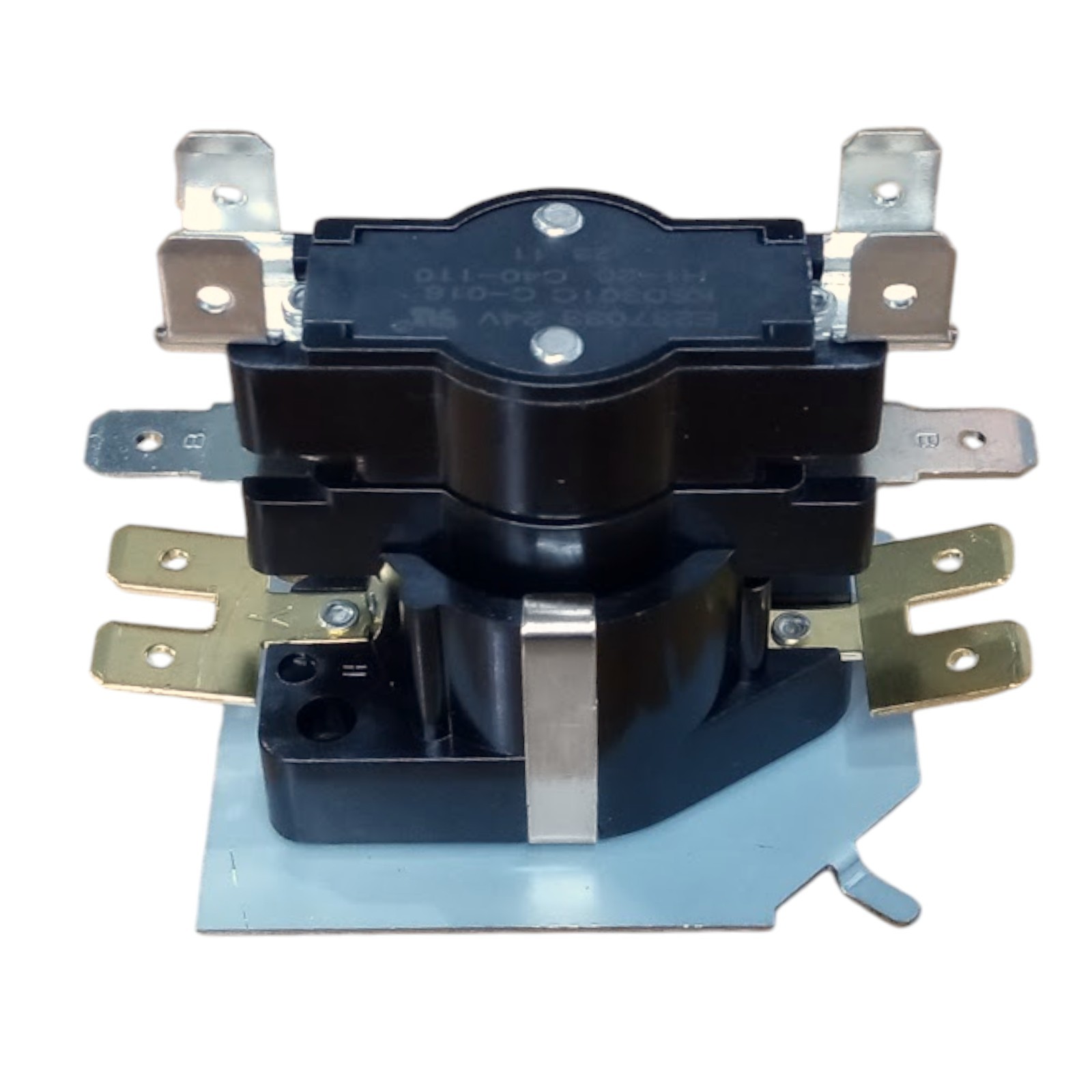

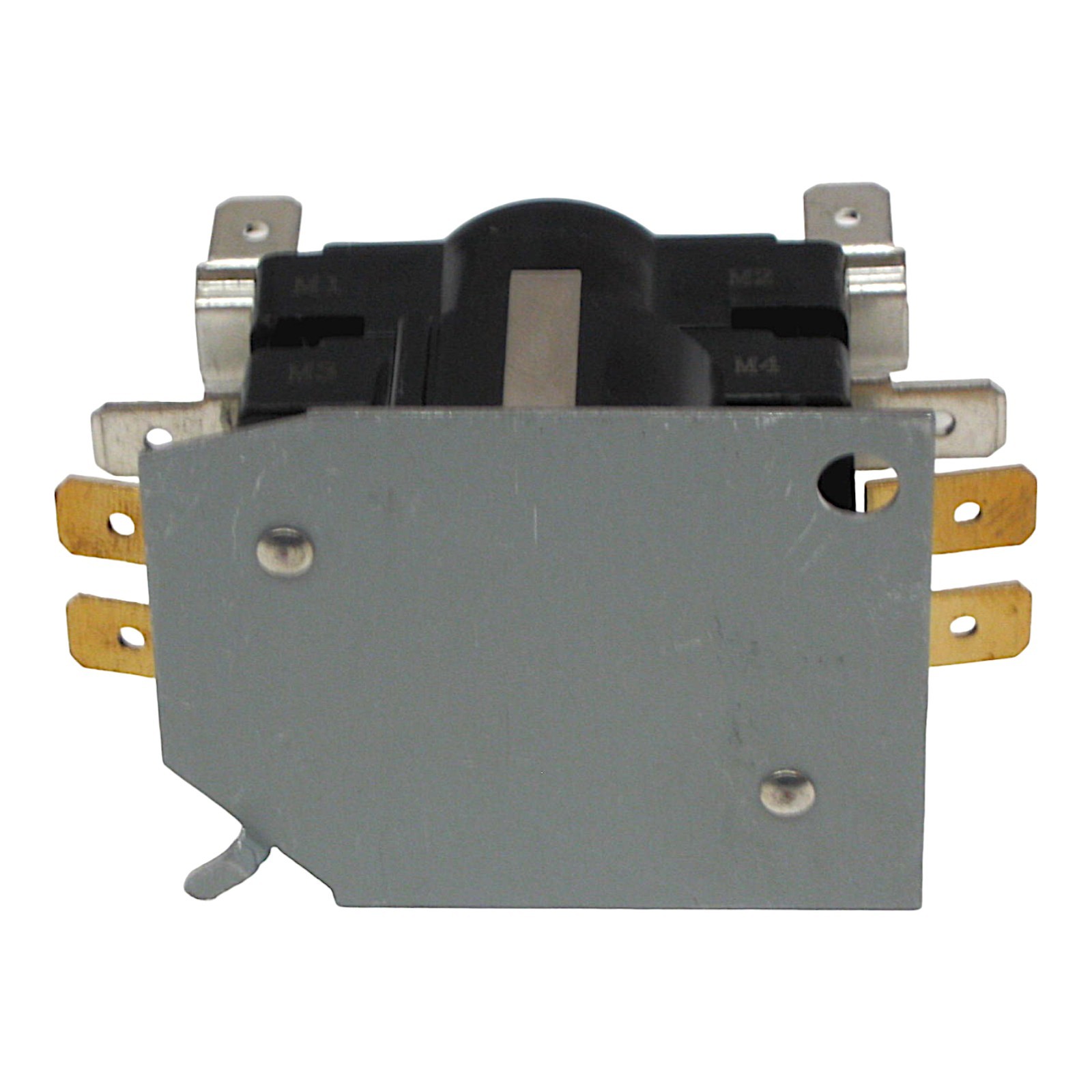

Electric Heat Sequencer Control DPST 24 Volt for Q103 24A34-3 1056789 1256504

Specifications

Electric Heat Sequencer Control DPST 24 Volt for Q103 24A34-3 1056789 1256504 Parts Connect Sequencer part number PCQ103 Specifications: 24 Volts DPST 1 Timing / 2 Switch Off 40-110 Seconds On 1-20 Seconds PSQ Models are Direct Replacement for Most Fan / Heat Sequencing Functions Terminal Markings are Equivalent to Competitive Types Replacement for Numbers: Carrier HN67QC005, ICP (Heil, Comfortmaker, Tempstar, Arcoair) 1056789, HQ1056789, Diversitech DGS103, Goodman / Amana / Janitrol 1256504 BT1256504, Klixon E017, Mars 33244, 33844, Napco NS103, Supco Q103, White Rodgers 24A34-3. Watsco TDR20, York 525-37322-000. COMBINED LOAD RATING TABLE (ALL MODELS) 30A @ 240 VAC TOTAL, 23A Non-Inductive + 7 FLA / 42 LRA Inductive, ON Time: Elapsed time to make contacts after heater is energized (min. to max.) OFF Time: Elapsed time to break contacts after heater is de-energized (min. to max.) M1-M2 and M3-M4 are always first switches to turn ON and last to turn OFF. All other switches are random ON and random OFF NOTE : Underwriters Laboratories requires a fan interlock circuit to insure the blower remains operating whenever more than one sequencer is used. The fan interlock should be the M1/ M2 contacts of the second or third sequencer. All M1/ M2 contacts are wired to the blower motor so that any sequencer that is energized will keep the blower ON Product Details BrandPartsConnectManufacturerPartsConnectProduct TypeSequence ControlMpnPCQ103 PartsConnect part number PCQ103Electric Heat Sequencer / Motor Fan Blower Control DPST 24 Volt for Q103PSQ Models are Direct Replacement for Most Fan / Heat Sequencing Functions Check out my other items. -Powered by
