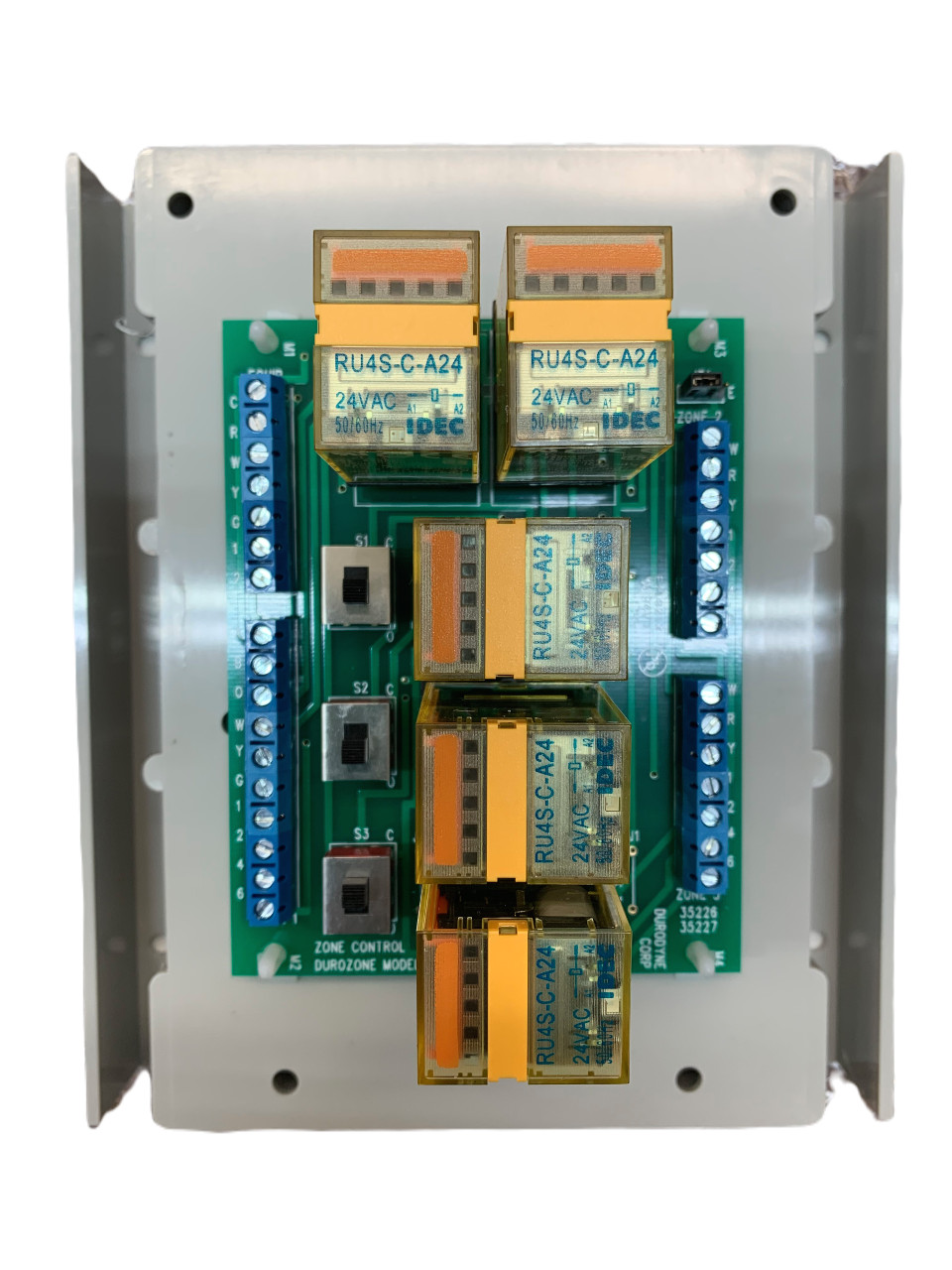

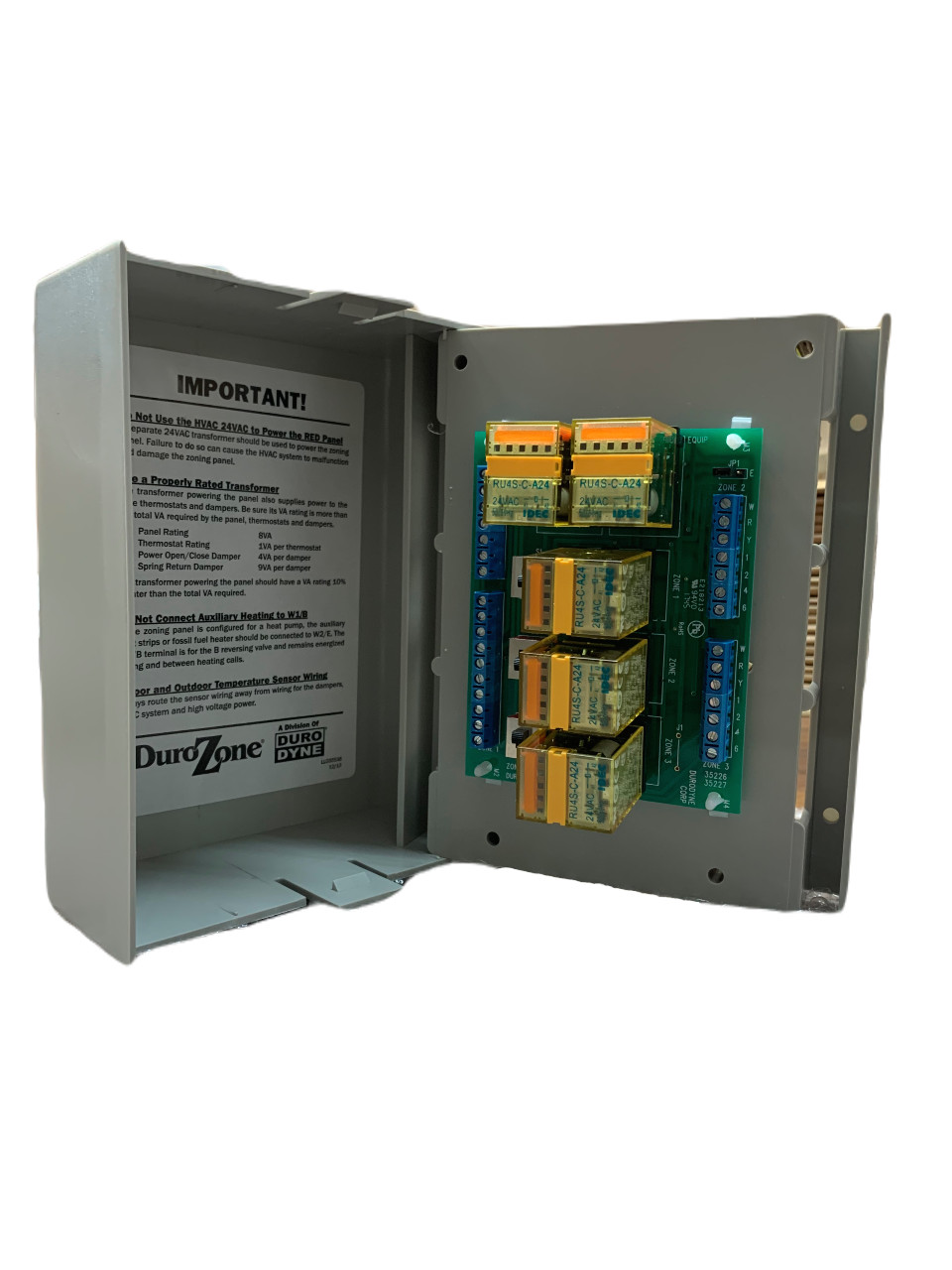

DuroZone 3 Zone Control Panel SMZ-3SW with Open/Close Switch for Each Zone 35227

Specifications

The SMZ-3SW is a simple zoning system incorporating individual thermostats and zone dampers to provide comfort and economy. The Zone 1 Thermostat has a Sub-Base which acts as the master control to determine if heating or cooling is desired and if the fan should be on constantly or just when the equipment calls. When all zones are satisfied, each zone damper will be in the position set by the Damper Switch. If any zone calls, that damper will open, or remain open and all others will close. Should another zone call, its corresponding damper will open. Upon satisfaction of the zone(s) all dampers will return to the position set with the Damper Switch.

Related Items

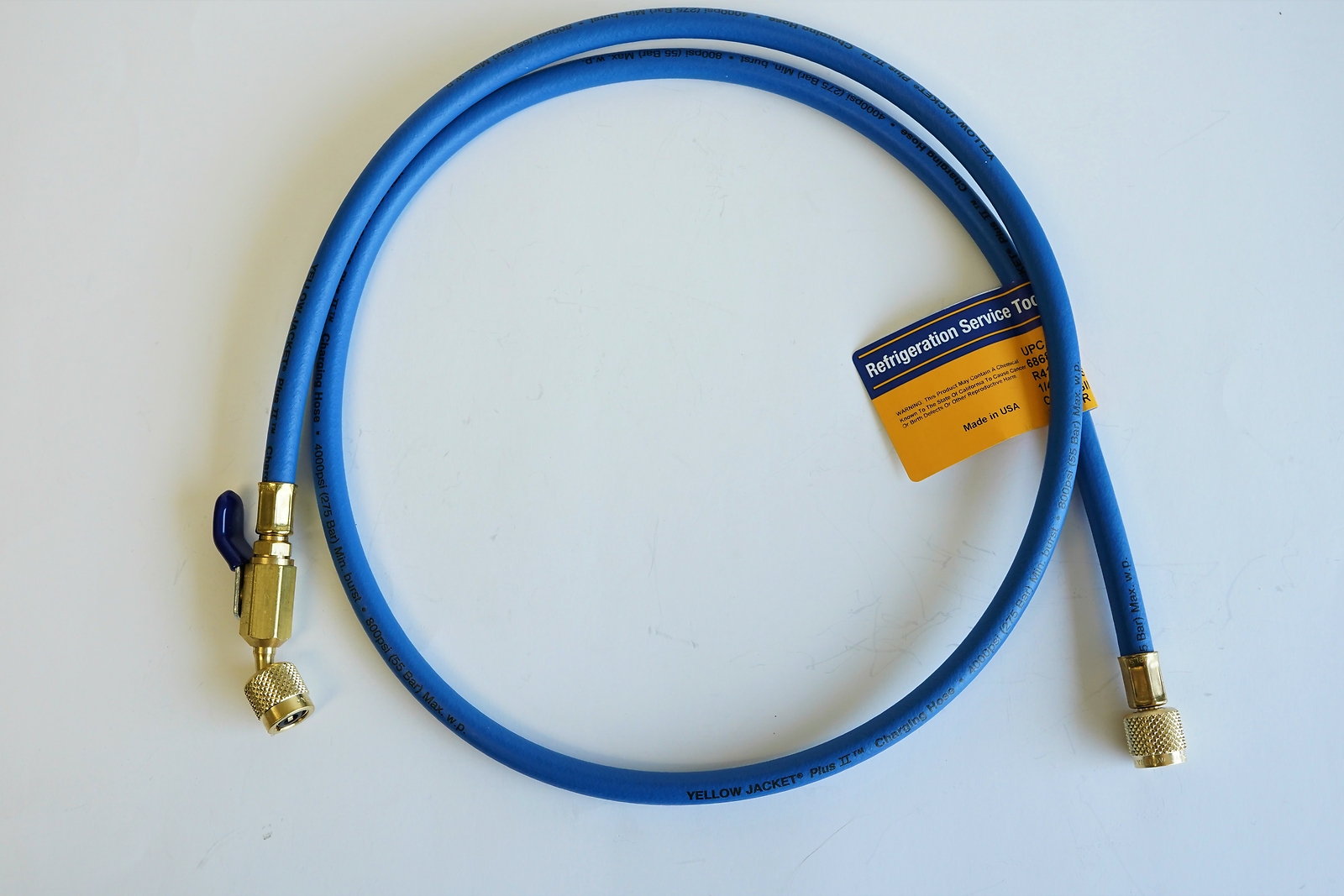

Yellow Jacket 29425 Plus II Charging Hose 60″ 1/4″ x 5/16″ Ball Valve Blue

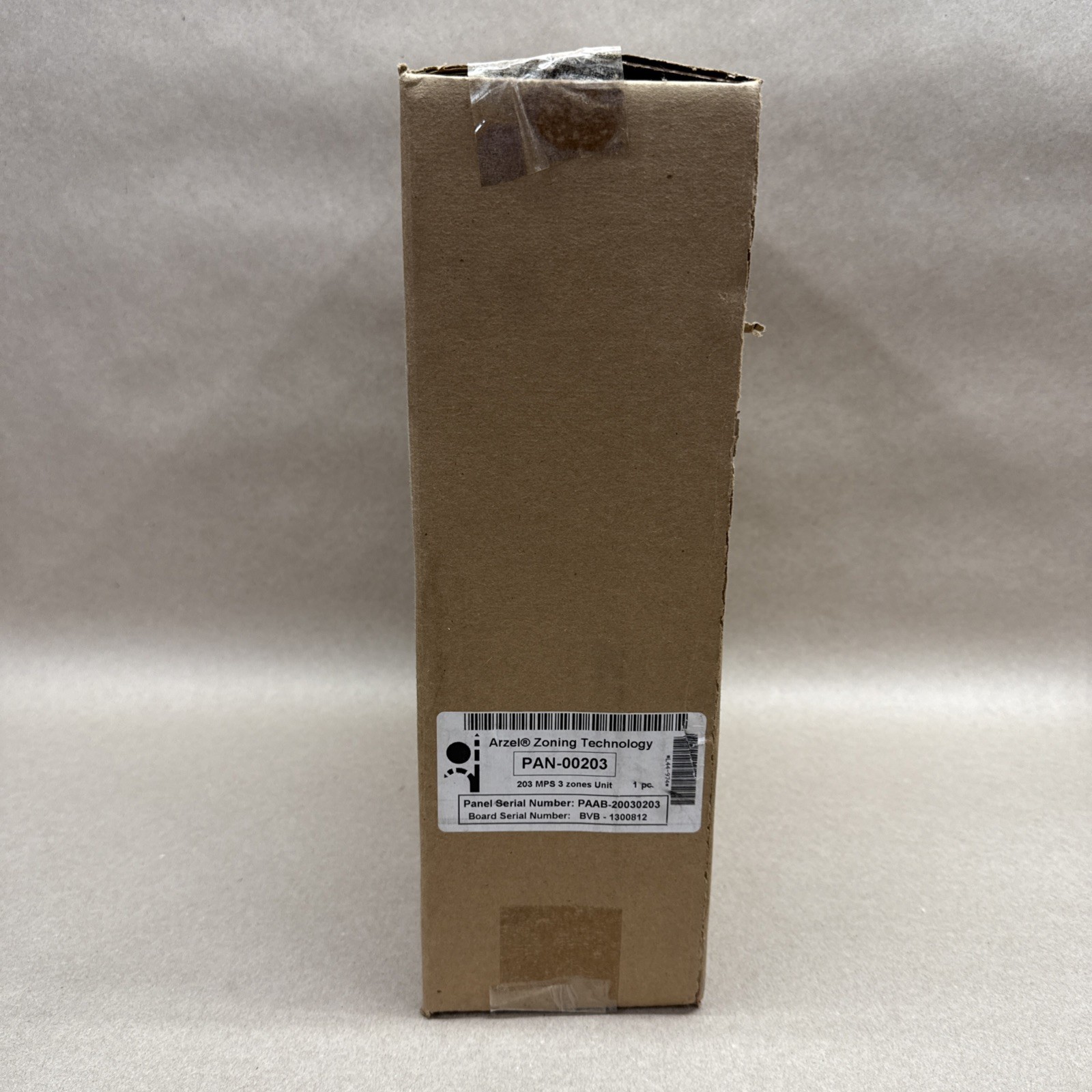

Arzel Zoning Technology 200 MPS Series 3-Zone Zoning Control Panel PAN-00203

62-24140-02 RHEEM CONTROL BOARD 1028-83-928A 1028-928

Honeywell Home HZ322 System Truezone Panel – For Parts Only –

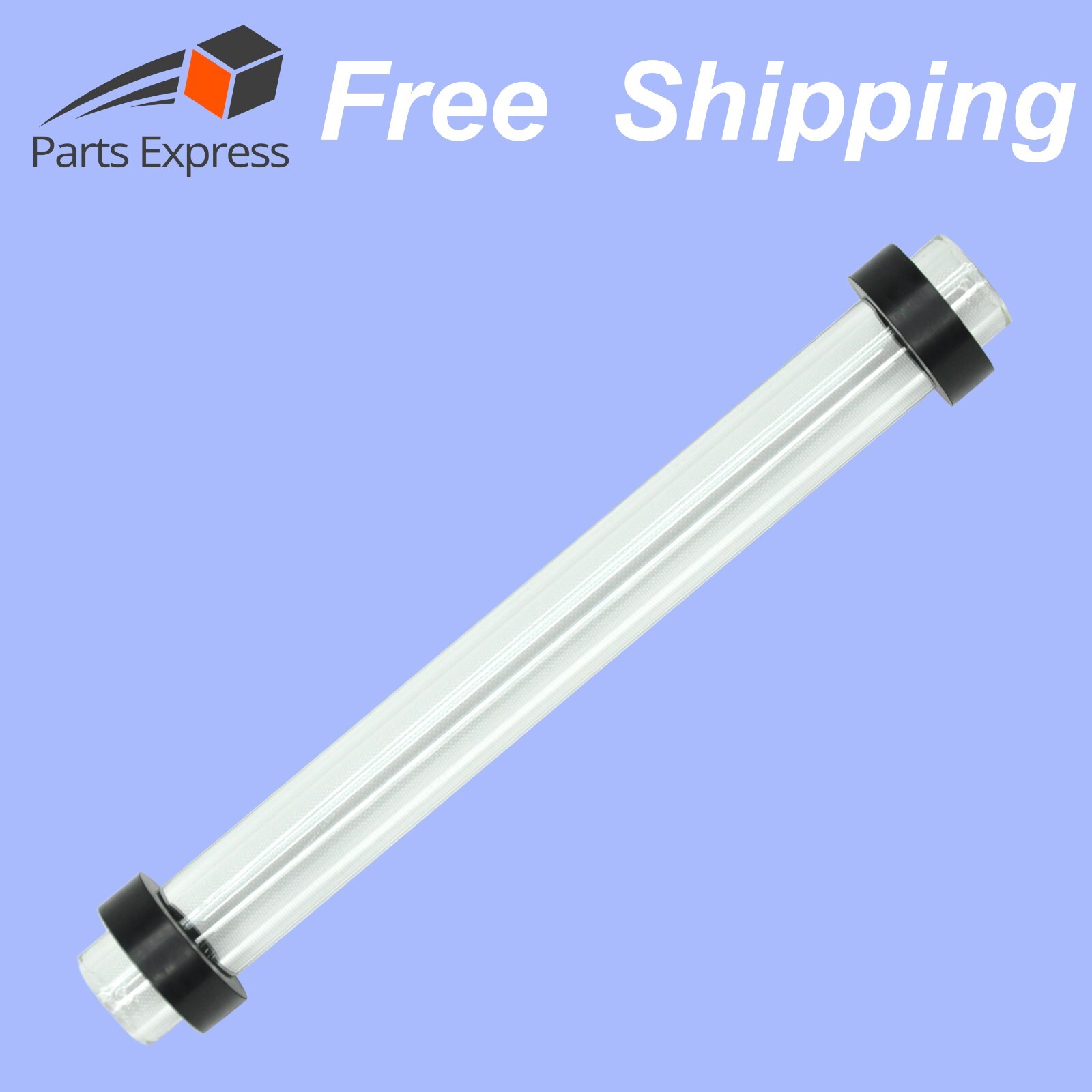

4-7/8″ Boiler/Steamer Sight Glass, 5/8″ OD, Borosilicate 3.3 Glass,High-Pressure

Supco CD30+7.5X440R HVAC Motor Round Dual Run Capacitor 30 + 7.5 MFD 440 Volts

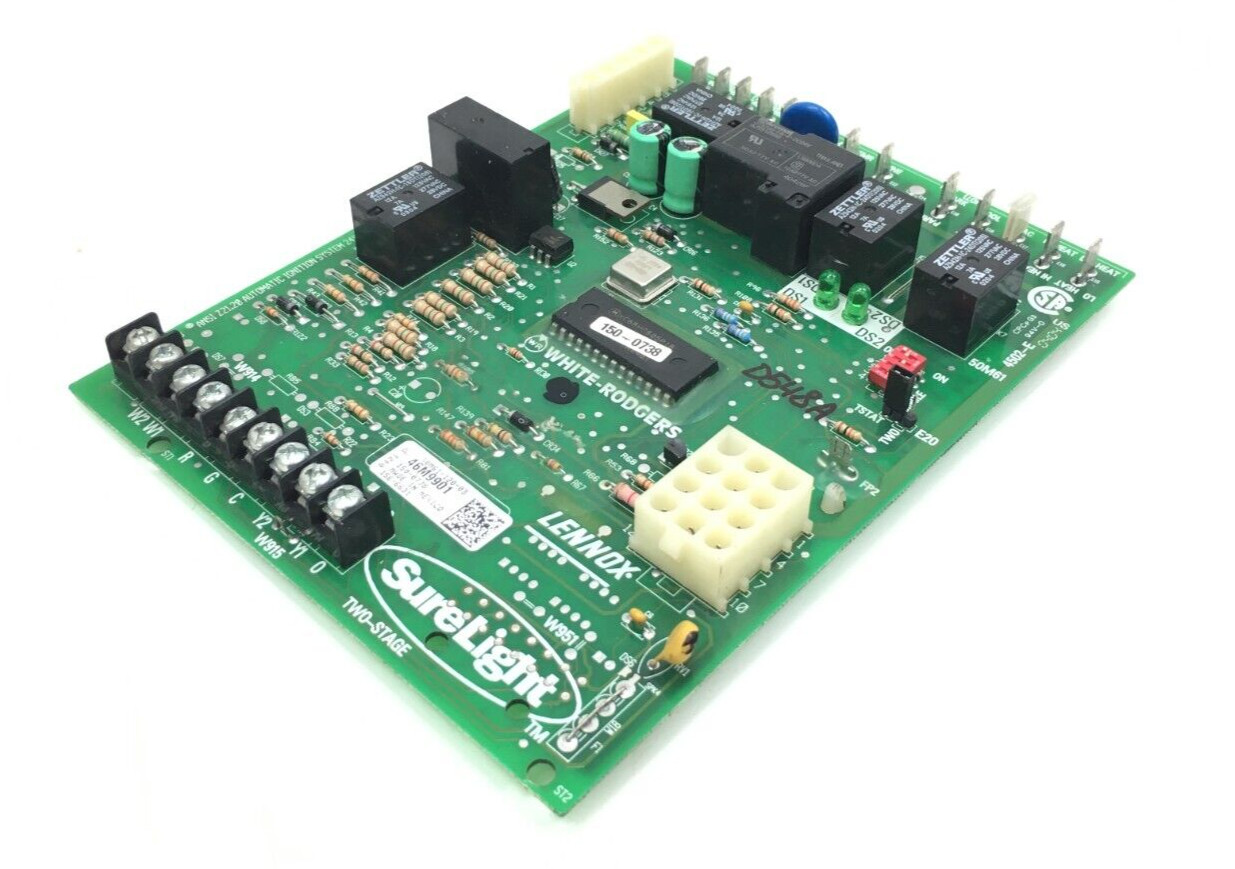

LENNOX 46M9901 Furnace Control Circuit Board 50M61-120 used #D548A
