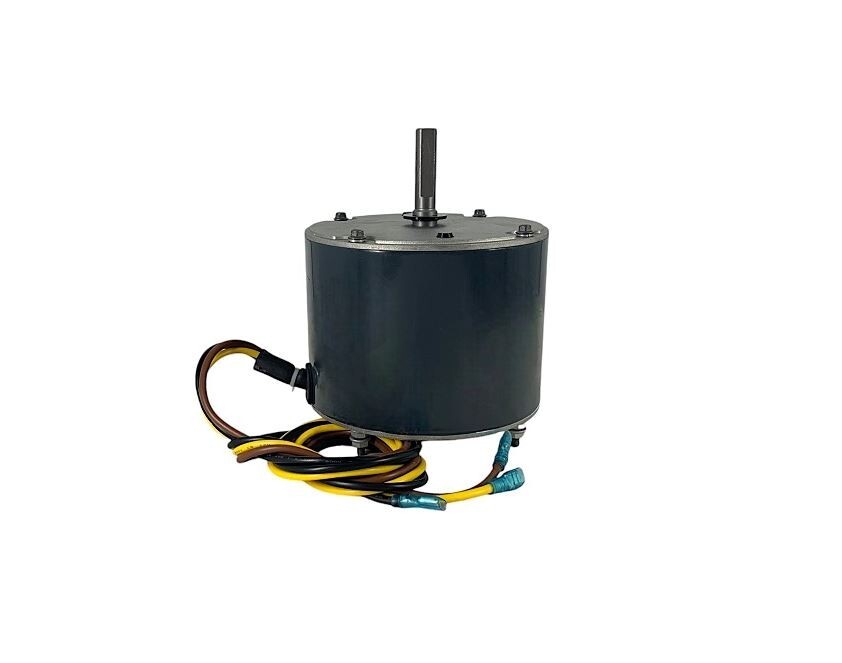

Condenser Fan Motor 1/10HP 1100RPM 208-230V 5KCP39BGS069S 5KCP39BGY915S

USD 99.99 USD

SKU: MYZPeUnG

Brand: Pellethead

MPN: DSLNQDJ110HP1HRDT

Condition: New

Tags: 0.5"/12.7 mm 0.75A 1 Phase 1/10 HP 1100 RPM 2023 208-230V 3.9 in / 100 cm 5.2" x 5.2"/132x132 mm 60Hz 75W 8.2 lbs/3.7 kg Air Conditioner Black & Silver CBB65 5μF/370V Condenser Fan Motor Corded Electric CW & CCWSE Motor DSLNQDJ110HP1HRDT Pellethead Reversible Rotation Sleeve YDK75-6G02

Categories: HVAC & Refrigeration: Parts & Accessories

Specifications

Power Source	Corded Electric
MPN	DSLNQDJ110HP1HRDT
Year Manufactured	2023
Compatible Product	Air Conditioner
Item Length	3.9 in / 100 cm
Power Phase	1 Phase
Bearing	Sleeve
Horsepower	1/10 HP
Voltage	208-230V
Motor Type	CW & CCWSE Motor
Amperage	0.75A
Features	Reversible Rotation
Stud Pattern	5.2" x 5.2"/132x132 mm
Item Width	3.9 in / 100 cm
Color	Black & Silver
Item Diameter	3.9 in / 100 cm
Capacitor Specification	CBB65 5μF/370V
Shaft Diameter	0.5"/12.7 mm
Brand	Pellethead
Rotational Speed	1100 RPM
Type	Condenser Fan Motor
Model	YDK75-6G02
Frequency	60Hz
Item Weight	8.2 lbs/3.7 kg
Power	75W

This is a sleeve-bearing motor, counter clockwise rotation shaft end, continuous over air duty, thermally protected. This motor does require a capacitor (NOT Included). The correct capacitor for this motor will be 5uF/370VAC.

Condenser Fan Motor 1/10HP 1100RPM 208-230V 5KCP39BGS069S 5KCP39BGY915S
