CENTURY FE1026SF Condenser Fan Motor,1/4 HP,1075 rpm,60Hz 4MB59

Specifications

Condenser Fan Motor, Motor Design Permanent Split Capacitor, Phase Single, 1/4 HP, No. of Speeds 1, Voltage 208-230V AC, Motor Shaft Rotation CW/CCW, 48Y Frame, Motor Enclosure Design Totally Enclosed Air-Over, Stud Motor Mounting Type, Motor Mounting Position All Angle, Shaft Dia. 1/2 in, Shaft Length 6 1/2 in, Motor Thermal Protection Auto, Max. Ambient Temp. 70 Degrees C, Nameplate RPM 1,075, HVAC/R, Condenser Fan, 60 Hz, Full Load Amps 2.0 A, Ins. Class F, Motor Service Factor 1 PSC High-Ambient Condenser Fan Motors� Frame: 48Y (5-5/8" body dia.) Service factor: 1.0 Insulation: Class F Max. ambient: 70 Degrees C Thermal protection: auto Bearings: ball Duty: continuous air-over Rheem mounting holes (screws included)PSC motors are insulated and designed for troublefree operation at full.

Related Items

Honeywell Home TrueZONE HZ311 3-Zone Control Panel

PROTECH K55HXDPZ-7023 HVAC Motor 115V 9.5A 1 Phase Thermally Protected Air Over

S1-02436240000 Condenser Fan Motor 1/4 HP, 850 RPM, 208-230V, CWLE, 48Y

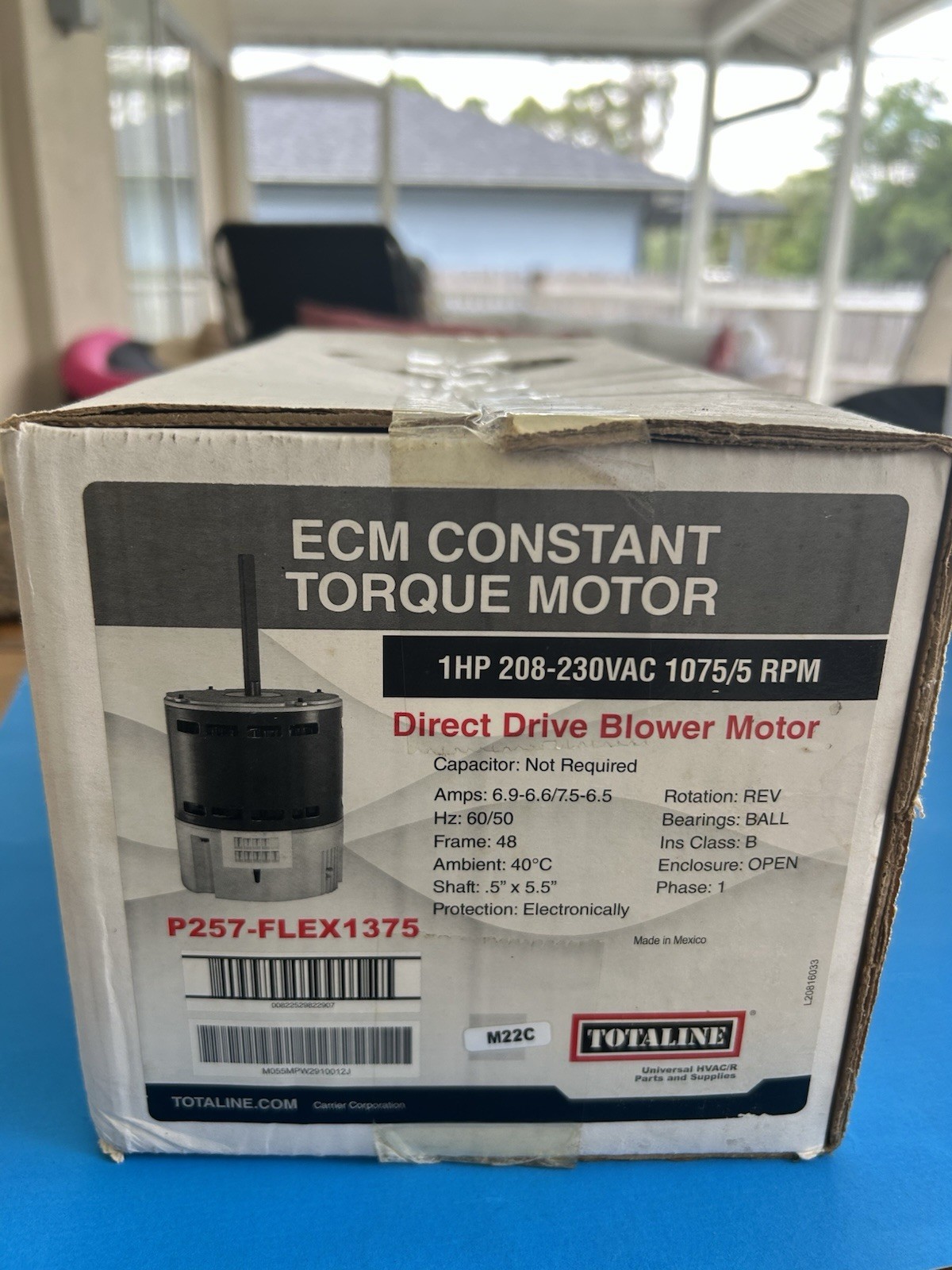

Totaline P257-FLEX1375 ECM Constant Torque Blower Motor 1HP 208-230V

S1-02436240000 1/4 HP Condenser Fan Motor-JOHNSON CONTROLS

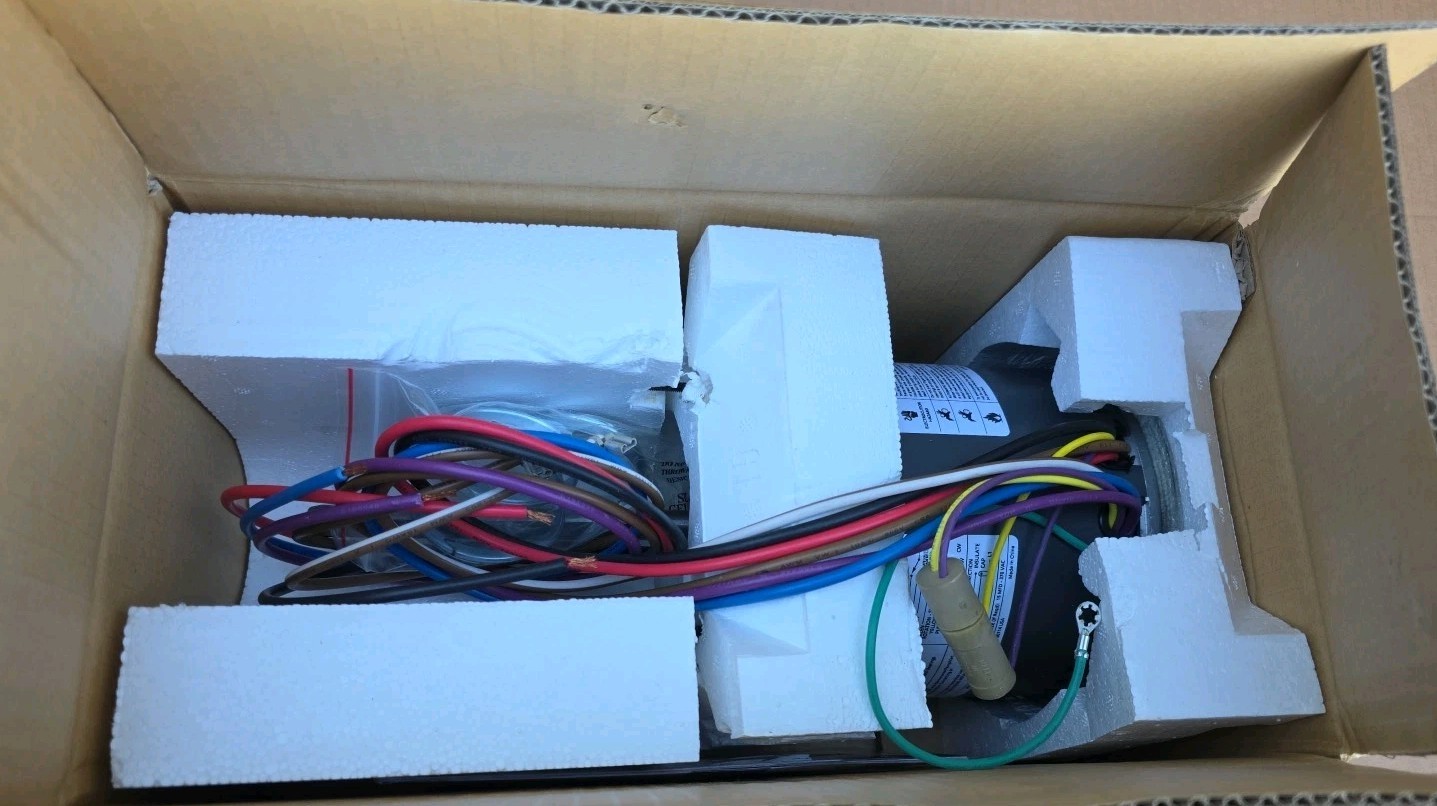

DAYTON 6GC94G Direct Drive Blower Motor 277v 3/4hp
