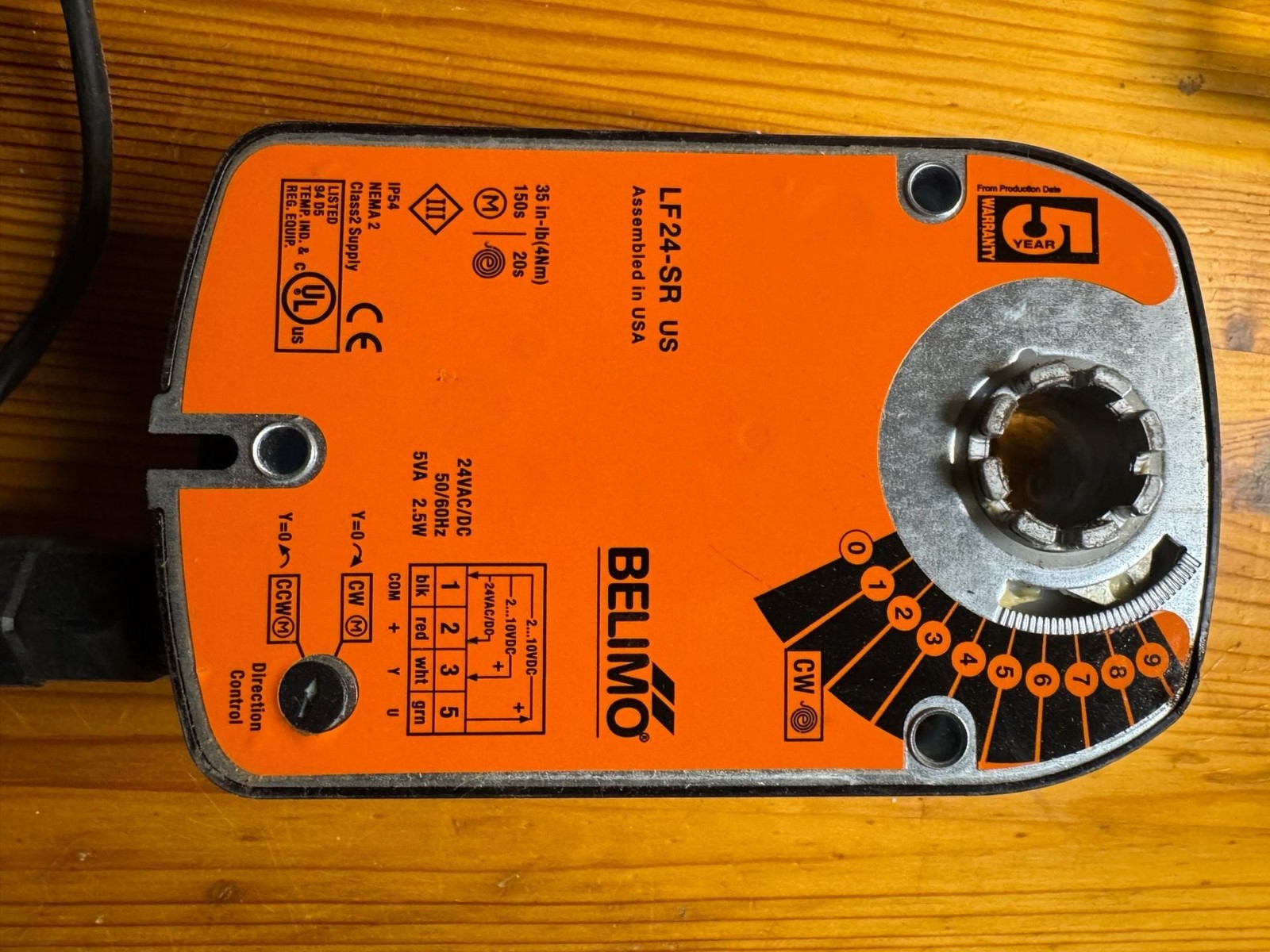

Belimo LF24-SR US Spring Return Proportional Damper Actuator 24VAC/DC

Specifications

Belimo LF24-SR US Spring Return Proportional Damper Actuator. This heavy-duty HVAC actuator provides 2...10VDC proportional control with a 35 in-lb (4Nm) torque rating. Operates on 24VAC/DC 50/60Hz. Features: - Model: LF24-SR US - Voltage: 24VAC/DC, 5VA 2.5W - Control Signal: 2 to 10 VDC - Torque: 35 in-lb (4 Nm) - Run Time: 150s motor, 20s spring return - NEMA 2, IP54 Enclosure Rating - Direction control switch for CW/CCW rotation Excellent physical condition with no significant wear, scratches, or damage. Suitable for commercial or industrial air handling systems. Assembled in USA.
