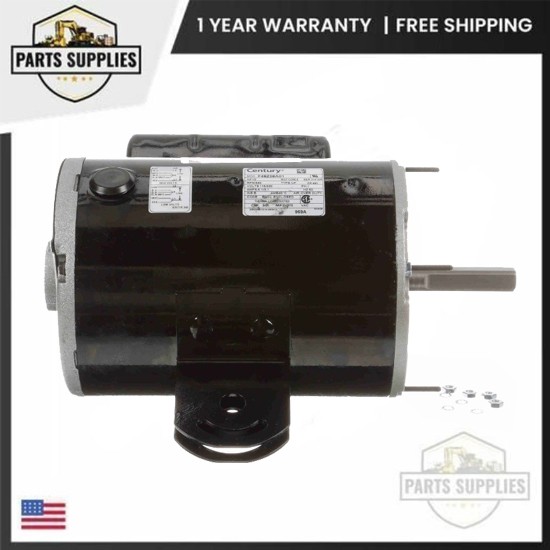

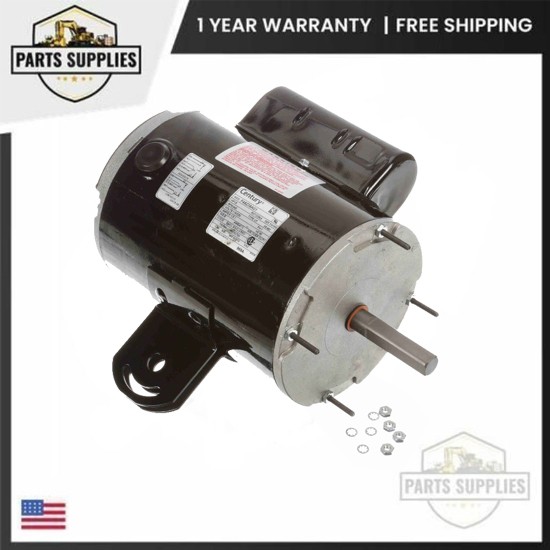

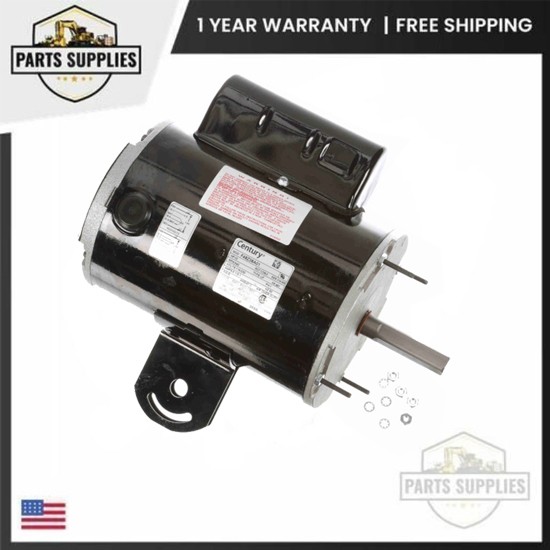

969A Century 1-Phase 1/2 HP 115/230V 840 RPM PSC Motor for HVAC/R Fan and Blower

969A Century 1-Phase 1/2 HP 115/230V 840 RPM PSC Motor for HVAC/R Fan and Blower

USD 497.37 USD

SKU: LNQfkgnG

Brand: Century

MPN: U969A

GTIN: Does not Apply

Condition: New

Tags: 0.37 kW 0.625 in ( 15.88 mm ) 1 ( Single Phase ) 1 Year 1.0 1/2 HP 10.93 in ( 277.62 mm ) 115-230V 115/230 V 19.00 lbs ( 8.62 Kg ) 2.68 in ( 68.07 mm ) 40 °C ( 104 °F) 5.6 in ( 142.24 mm ) 6.1/3.1 A 60 hz 7.00 in ( 177.8 mm ) 840 RPM 969A Across The Line Automatic BALL CENTURY F48Y Motor U969A Yoke Mount

Categories: HVAC & Refrigeration: Parts & Accessories

Specifications

MPN	U969A
Brand	Century
Interchange Part Numbers	969A
Part Type	Motor
Type	Motor
Warranty	1 Year
Output HP	1/2 HP
Output KW	0.37 kW
Power Phase	1 ( Single Phase )
Voltage	115/230 V
Frequency	60 Hz
Speed	840 RPM
Amperage	6.1/3.1 A
Starting Method	Across The Line
Frame	F48Y
Service Factor	1.0
Motor Diameter	5.6 in ( 142.24 mm )
Overall Length	10.93 in ( 277.62 mm )
Frame Length	7.00 in ( 177.8 mm )
Shaft Diameter	0.625 in ( 15.88 mm )
Shaft Extension	2.68 in ( 68.07 mm )
Ambient Temperature	40 °C ( 104 °F )
Thermal Protection	Automatic
Bearings	Ball
Mounting	Yoke Mount
Weight	19.00 lbs ( 8.62 Kg )

Replaces OEM part number: 969A, U969A. Mounting – Yoke Mount for easy horizontal installation. 1 YR WARRANTY. Key Features. Thermal Protection – Features Automatic thermal overload protection for safety.
