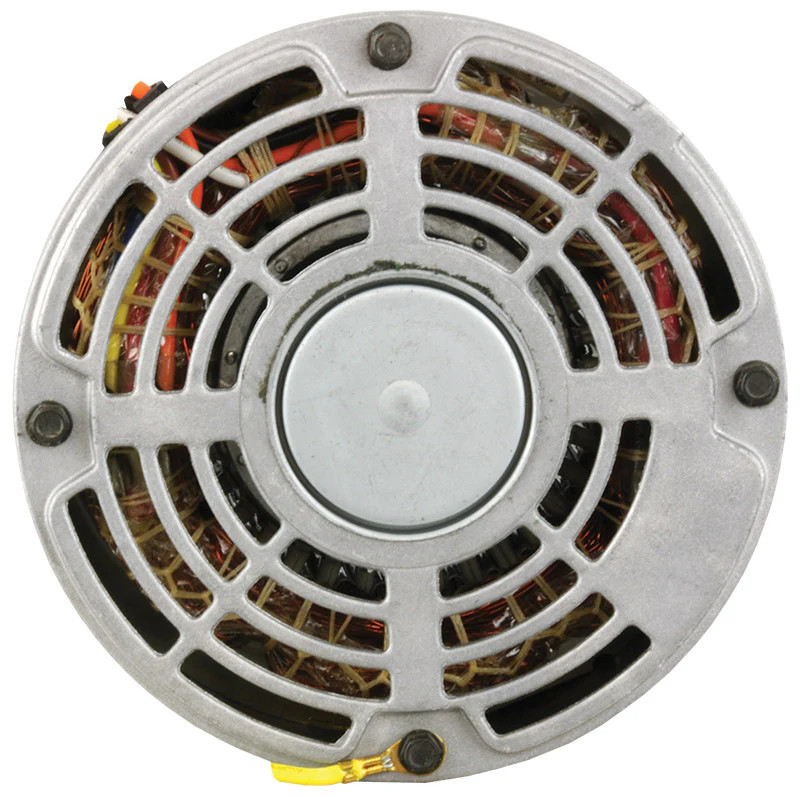

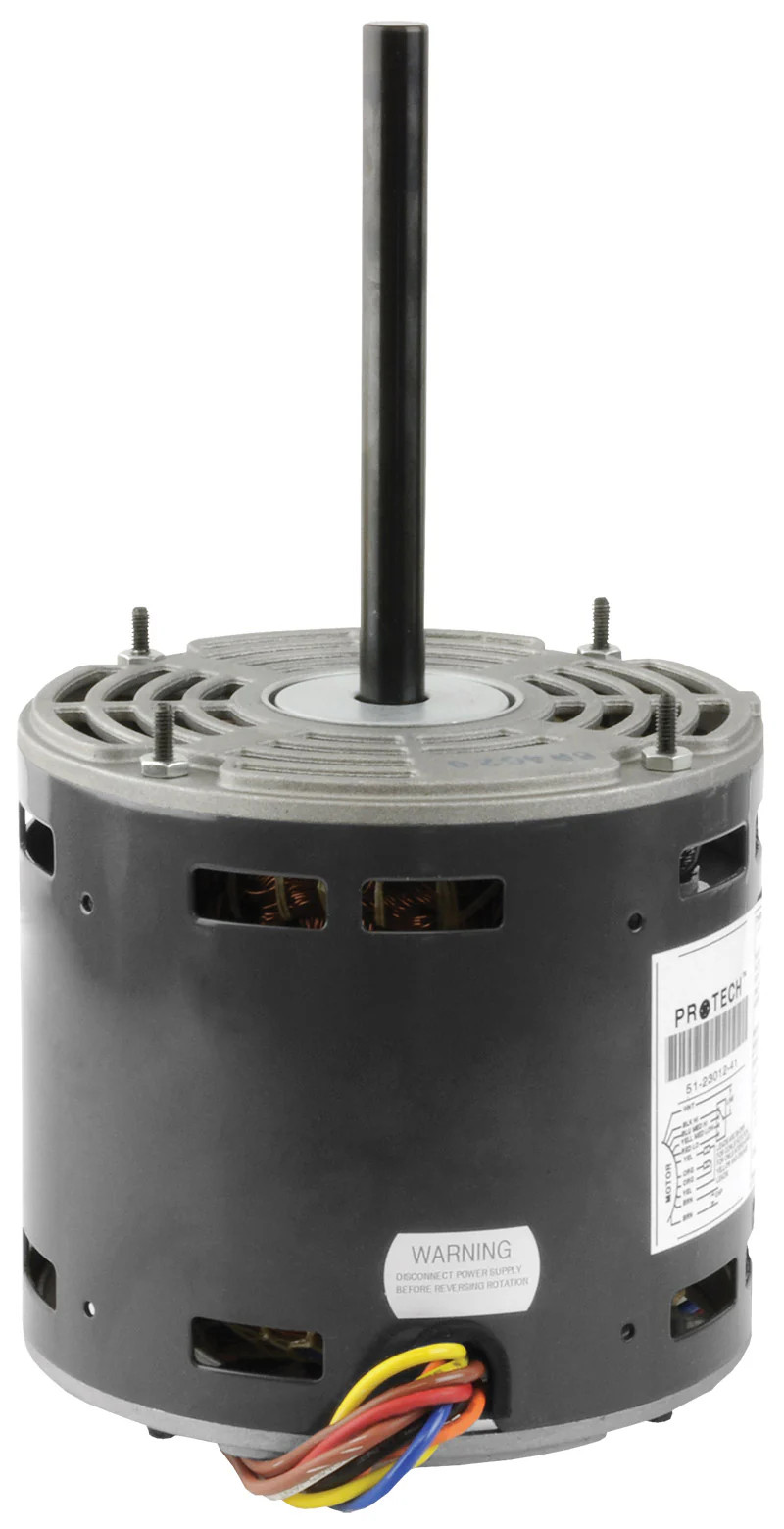

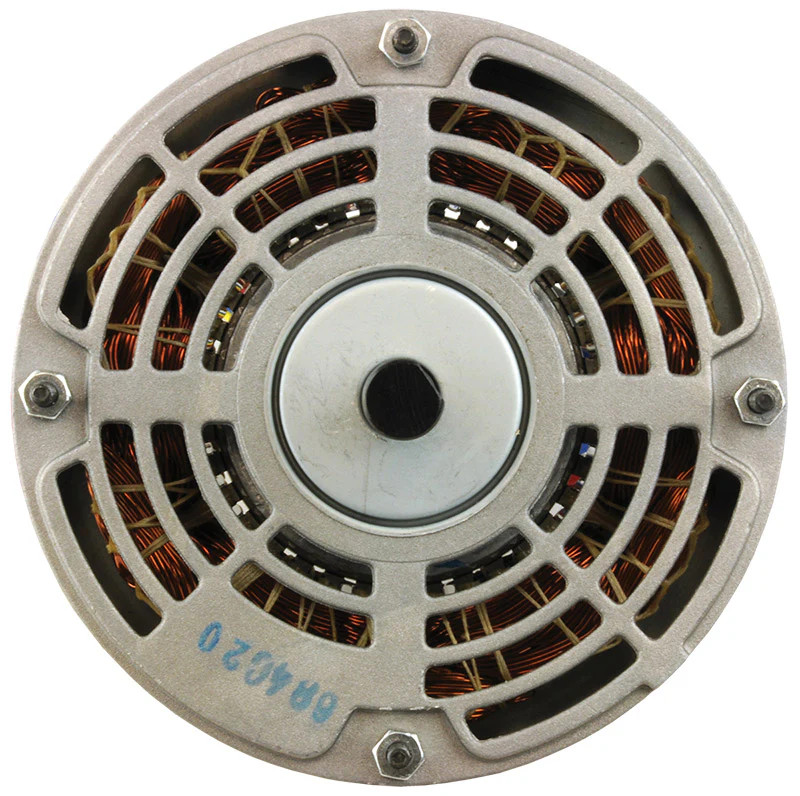

51-23012-41 Furnace Blower Motor 1/2 1/3 1/4 1/5 1/6 HP 1075 RPM 115V 3S

Specifications

100% New OEM Parts Fast Shipping WELCOME TO OUR EBAY STORE climatedoctors Rheem Ruud 51-23012-41 Furnace Blower Motor Tripsaver 1/6 - 1/2 HP 115V 1075 RPM Technical Data » HP: 1/6 - 1/2 No. of Speeds: 4 High Speed (RPM): 1075 Input Voltage (V): 120 No. of Phases: 1 Frequency (Hz): 60 Rotation Direction (OSE): Reversible Run Capacitor (uF/V)( NOT INCLUDED): 5/370, 7.5/370, or 10/370 FLA at 120V (A): 7.30 Shaft Diameter (in.): 1/2 Motor Body Diameter (in.): 5-5/8 Keyed/Flat Shaft Length (in.): 4 Overall Shaft Length (in.): 5 Motor Body Length (in.): 4-11/16 Overall Motor Length (in.): 9-11/16 Mounting: Shell-band Mounting: Thru-bolt Mounting: Shell-screw Frame Size: 48 Bearing Type: Sleeve Application: Blower Drive Type: Direct Drive FURNACE MOTOR The TRIPSAVER 115 Volt Furnace Motor will replace most gas furnace motors used today.

Related Items

Sporlan HXCAE Expansion Valve 1-1/2-4Tons R410A 3/8 x 1/2 ODF 044437-07 New

York Propeller Fan,26 Inch,Cw,3-24,1/2 I S1-02647794000 – Genuine OEM

Armstrong International Cd33s-075-600 Steam Trap, 600 Psi, 752F, 3-1/2 In. L

RECTORSEAL Fortress 3-1/2″ Ivory PVC Outside Vertical 90-degree Elbow Lineset

Rheem Ruud 62-24140-02 Furnace Control 1028-928

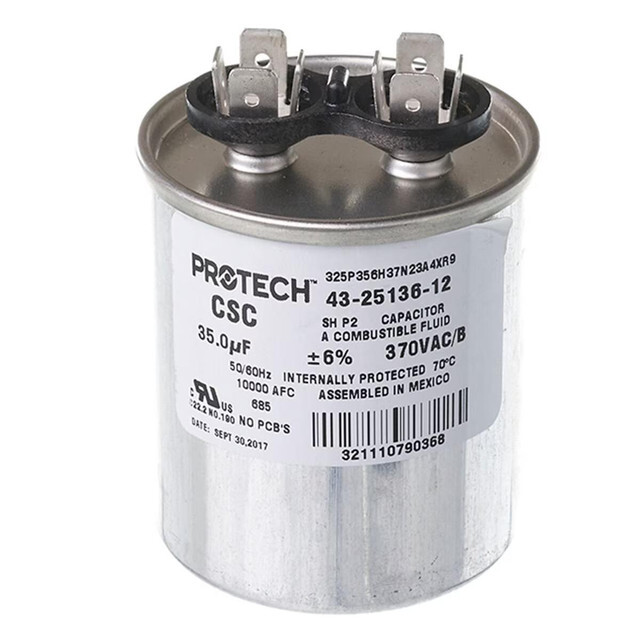

Protech Single Round Capacitor – 35 uF, 370 VAC, 2.120 x 3.940 (max.) in. –
