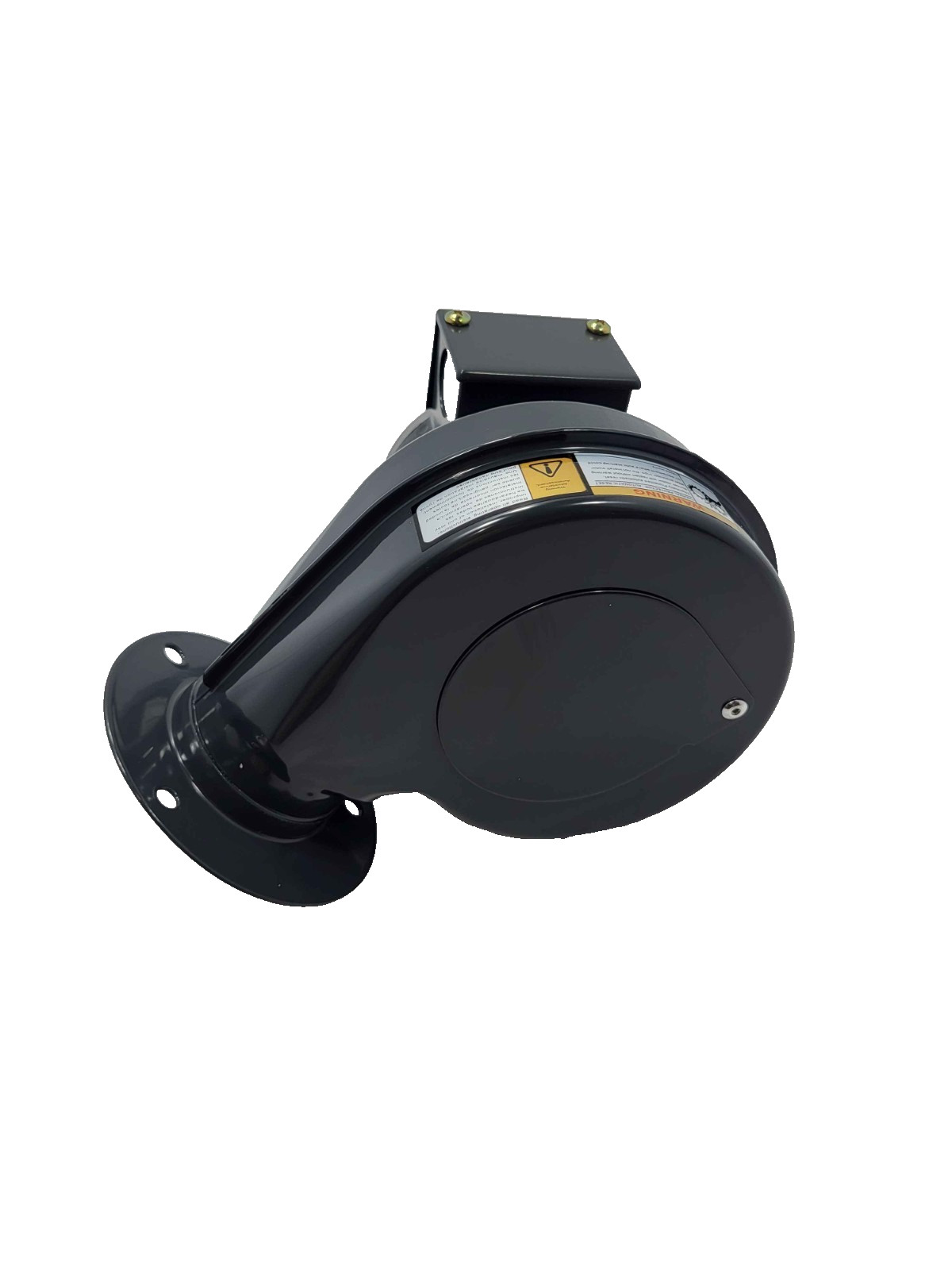

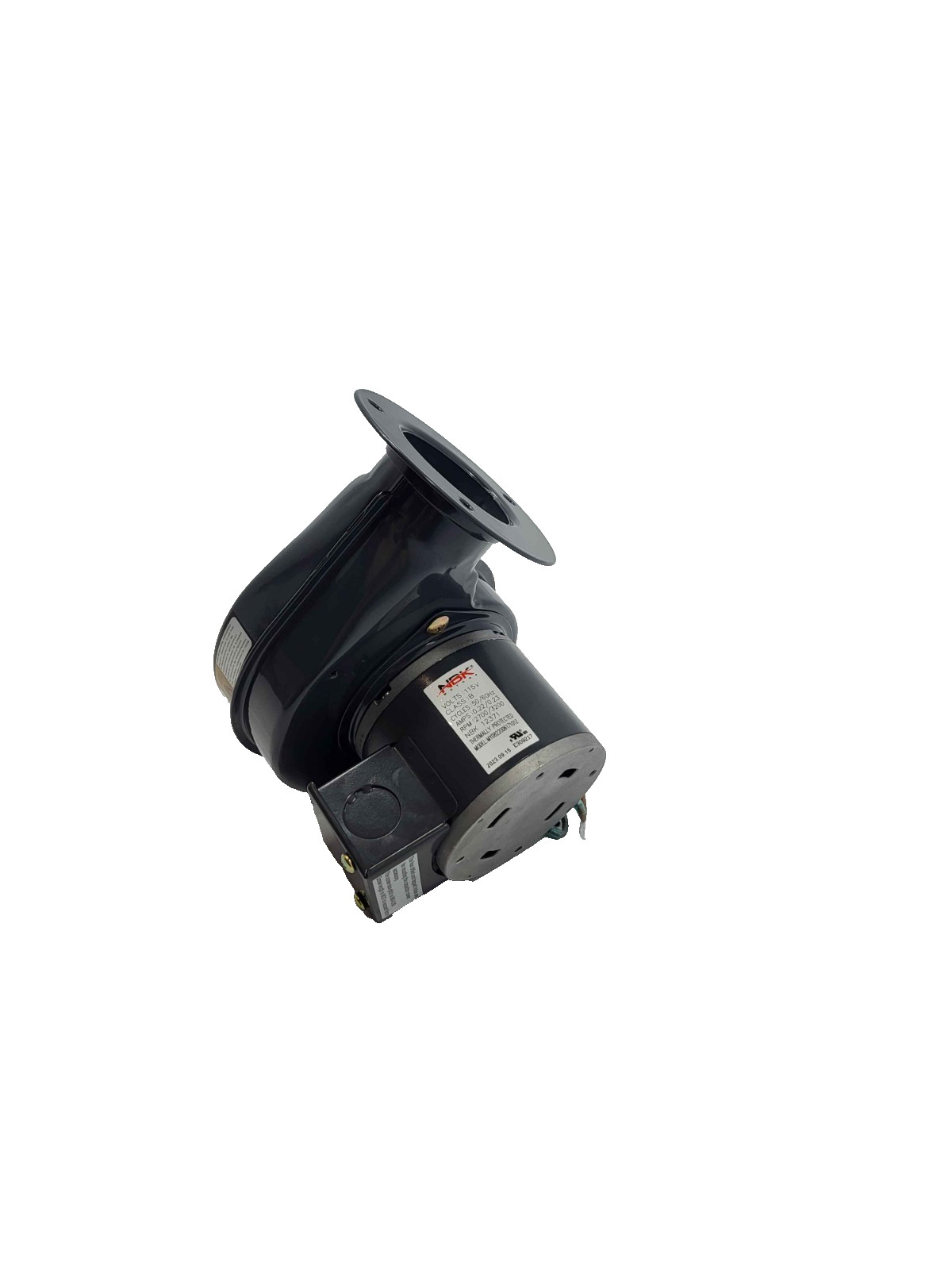

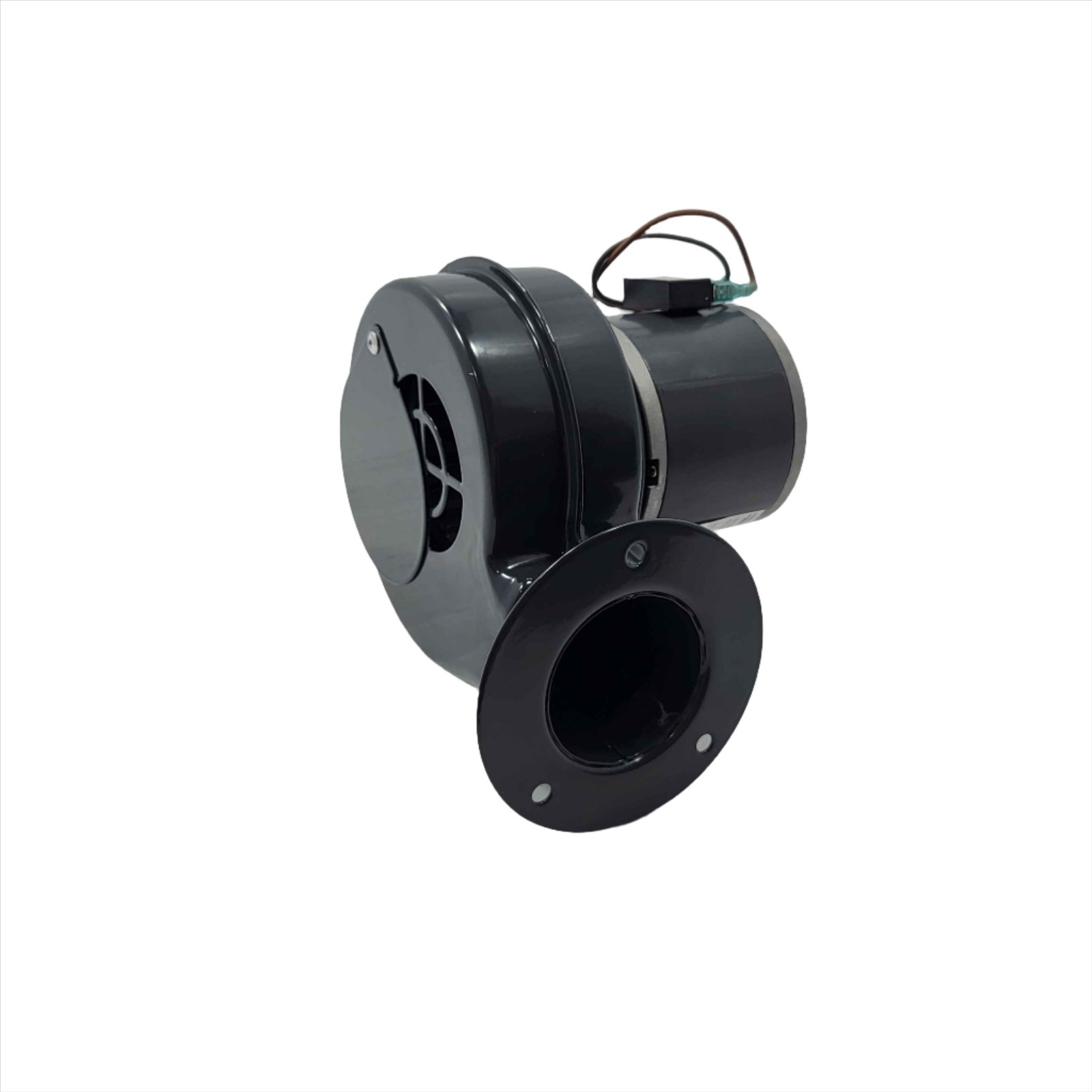

1TDP3 75cfm-4c443 Blower

Specifications

4c443 Blower-1TDP3 75cfm  Technical Specs Item: OEM Blower Outlet Shape: Round Wheel Dia: 3-13/16" Wheel Width: 1-7/8" CFM: @ 0.000-In. SP 70 CFM: @ 0.100-In. SP 65 CFM: @ 0.200-In. SP 60 CFM: @ 0.300-In. SP 55 CFM: @ 0.400-In. SP 50 CFM: @ 0.500-In. SP 45 Voltage: 115 Hz: 60/50 Phase: 1 Full Load Amps: 0.95/0.74 RPM: 2870 Bearing Type: Sleeve Motor Type: Shaded Pole Motor Enclosure: Open Dripproof Thermal Protection: Auto Lead Length: 12" Conduit Box: Yes Max. Ambient Temp: 104 Degrees F Max. Inlet Temp: 104 Degrees F Inlet Dia: 3-1/8" Outlet Dia: 2-1/8" Overall Height: 5-13/16" Overall Width: 6-1/2" Overall Depth: 6-5/16" Wheel Type: Forward Curve Drive Type: Direct Mounting Position: All Position Housing Finish: Baked Enamel Housing Material: Steel Housing Color: Gray Agency Compliance: UL Component Recognized, CSA Certified   About Us. We are the largest manufacturer of insulated pipe for outdoor wood furnaces in North America. We also provide parts such as duct coils, brazed plate heat exchangers, pex tubing, fittings, water treatment and test kits. Chances are if you need a part for installing your outdoor furnace we have it, or have a dealer in your area that could install it for you. Since we provide parts for 1,000's of customers and dealers across the US we have taken great effort to only provide quality parts at reasonable prices. Many times parts are produced according to our specifications, and made to last. All of our products come with long warranties and we are willing to compare our parts to anything in the industry. We firmly believe in customer service. All orders ship within 8 business hours of being place. When at all possible we include shipping in our prices. We stock over $2 million in inventory to attempt to have all products available at all times. When you order from us it is not drop shipped from some warehouse, but comes directly out of our inventory. We also keep tech support people on staff to answer any of your questions about sizing or installation of all of our products.
