12″ Dia Tube Axial Fan – 1 Hp – 3 Phase – 1,600 CFM – Free Shipping
USD 980.00 USD
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Blade Diameter | 12 in |
| Item Thickness | 20 in |
| Axial Fan Bearing Type | Ball Bearing |
| Power Source | Corded Electric |
| Fan & Blower Type | Exhaust Fan |
| Color | Gray |
| Item Diameter | 12 in |
| Material | Steel |
| MPN | ABT120103 |
| Item Length | 24 in |
| Power Phase | 3 Phase |
| Brand | Cook Manufacturing |
| Type | Axial Fan |
| Manufacturer Warranty | 1 Year |
| Voltage | 230 / 460 V |
| Model | ABT12 |
| Amperage | 25.3 / 12.6 A |
| Features | Remote Grease Fittings |
| Country/Region Of Manufacture | United States |
| Mounting Location | Ceiling / Wall |
| Item Width | 16 in |
New 12" Diameter Tube Axial FanDirect From The Manufacturer - Cook Manufacturing- All fans manufactured by Cook Manufacturing are shipped fully assembled and factory tested. Our fans are designed for industrial applications and conform to OSHA & NFPA spray booth regulations. Specifications: Inside Diameter: 12"Height: 20"Housing: 18GA Steel HousingMotor Mount: 12GA Steel Motor MountDrive: V BeltCFM: 1,600 CFM @ .25" Static PressureMotor: TEFC Motor - 1 Hp - 3 Ph - Mounted Outside Air StreamVoltage: 208-230 / 460 VRated Current: .3.25-2.94 / 1.47 AFan: WingFan 6 Blade Fan With Aluminum HubBearings: Dual Pillow Block Bearings - GreaseableHole Pattern: Eight 7/16" Diameter Holes on a 14" Bolt CircleApplications: Used For Many Common Applications - Cooling, Exhaust, Intake Air, Fume Extraction, and Spray Booths (Wet Coat & Powder Coat). Warranty: All products manufactured by Cook Manufacturing are backed by a 1 Year Warranty. Lead Time: Typical manufacturing Lead Time is 2-3 business days . Orders can also be expedited at no charge. Call or email to confirm if an order can be expedited. Shipping:Free shipping in the Contiguous United States to a commercial address with a loading dock or fork lift available. Additional fees may apply for limited access locations. This item can be also be shipped to and picked up from your local distribution center free of charge.
Related Items
10 MFD 440 v OVAL Run Capacitor MARS 12932 replaces GE 97F5300BZ3 2MDY8
For GOODMAN B28208-11 AMANA 167874 Drain Trap Central Furnace Air Conditioner US

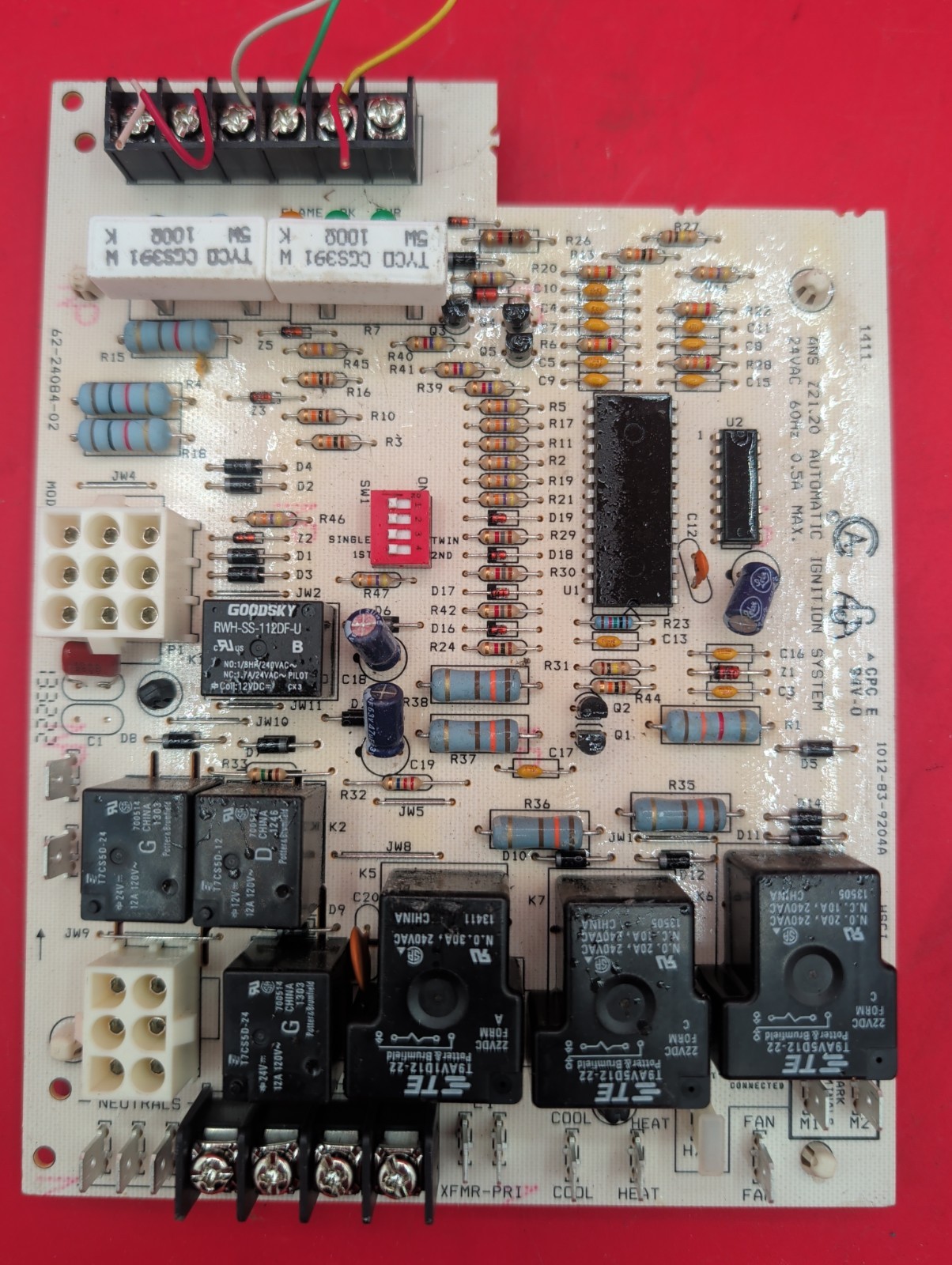

White Rodgers HSCI Furnace Control Board 1012-920A-1 62-24084-02 1012-83-9207A

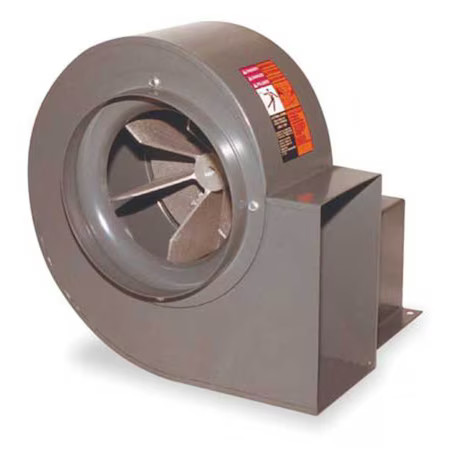

Dayton 2C862 Blower, 7 3/4 In
